Assembly Procedures

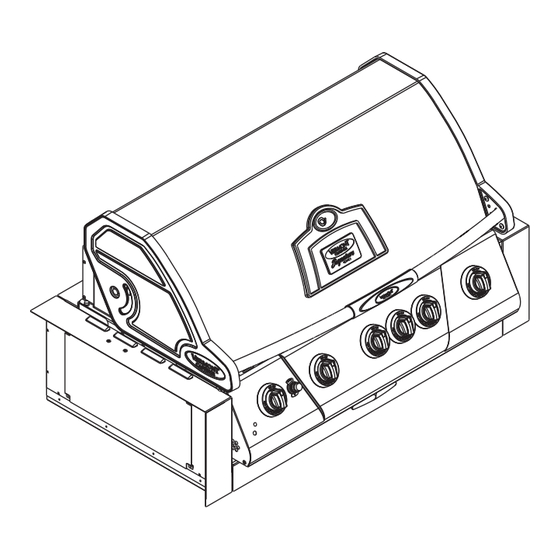

VCS300SSBI Series / VCS500SSBI Series
Tools Required: Knife or scissors, Phillips or Robertson (square head) screwdriver.
CAUTION: This grill is intended ONLY to be built into an enclosure.
CAUTION: The assembly of this grill requires two (2) people.
WARNING: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly,
lifting or moving the grill is recommended. Protective eyewear and long sleeves are also strongly
recommended.
NOTE: Remove the protective plastic coating from the stainless steel, failure to do so will void the warranty.
91D0004 1/11 Rev. 3 En

Advertisement

loading

Summary of Contents for Vermont Castings VCS300SSBI Series

  • Page 1 Assembly Procedures VCS300SSBI Series / VCS500SSBI Series Tools Required: Knife or scissors, Phillips or Robertson (square head) screwdriver. CAUTION: This grill is intended ONLY to be built into an enclosure. CAUTION: The assembly of this grill requires two (2) people.
  • Page 2 VCS300SSBI/500SSBI Series Assembly Step 1: Unpack Carton and Verify Contents Use a sharp cutting tool to cut the straps on the packaging and then lift off the carton top. The sleeve sur- rounding the barbecue can be removed by lifting it straight up and over the top of the unit. Remove the protective plastic coverings from the metal parts.
  • Page 3 VCS300SSBI/500SSBI Series Assembly Step 1: Unpack Carton and Verify Contents (continued) VCS500SSBI Carton Contents 1. Spit Rod 5000096 Box 8 (50004559) Box 7 (50004789) . Front Grease Tray Assy 50004903 Hardware Bag Cook Grates (4) 3. Cover Rear Burner 50004799 Bracket Right 4.
  • Page 4 VCS300SSBI/500SSBI Series Assembly VCS300SSBI / VCS500SSBI Framing Dimensions When Using Noncombustible Materials Drain Holes (” diameter) J  K  L  Drain Holes (” diameter) I  N  B33 Ref. VCS300SSBI VCS500SSBI B332 31Z\x” (800 mm) 43Z\x” (1105 mm) built in noncombustible specs 3/09 4” (610 mm) 4”...
  • Page 5 VCS300SSBI/500SSBI Series Assembly VCS300SSBI / VCS5008 BI Framing Dimensions When Using Combustible Materials (ZC Insulated Jacket Required for Installation) Drain Holes (” diameter) Drain Holes (” diameter) O  J  V  K  L  V  V  T  S  S  U  C  L  I ...
  • Page 6 VCS300SSBI/500SSBI Series Assembly NOTE: Ensure your grill enclosure has been constructed according to the exact specifications shown in Figure . If the enclosure is constructed of wood or other similar combustible materials, the use of the insulated jacket Model VCS3008IJ or VCS5008IJ is required.
  • Page 7 VCS300SSBI/500SSBI Series Assembly Step 2: Assemble Fascia Brackets Parts Required: (1) Main Grill Unit (1) Left Fascia Bracket (1) Right Fascia Bracket (4) #10 x 1/” Bolts (4) #10 Lock Nuts Figure 1 Prop up the front of the grill unit on a ” or 3” block of wood or some other similar item. Remove the two () 1/4-0 x 3/8”...
  • Page 8 VCS300SSBI/500SSBI Series Assembly Step 3: Assemble the Rear Panel Parts Required: (1) Rear Panel (1) Back Flange (4) Self-tapping Screws Figure 2 Attach the back flange of the rear panel to the grill base with two () self-tapping screws. Fasten the ends of the rear panel to the left and right fascia brackets with two () self-tapping screws. Figure 2 Rear Panel B63...
  • Page 9 VCS300SSBI/500SSBI Series Assembly Step 4: Assemble the Grease Tray Front and Handle Parts Required: (1) Grease Tray Front (1) Handle (with screws) () #10 Bolts () #10 Nuts Figure 3 Remove the grease tray from the front of the grill base (below the control console). Remove the protective plastic from the grease tray front.
  • Page 10 VCS300SSBI/500SSBI Series Assembly Step 5: Assemble the Grill Unit to the Enclosure NOTE: This step should be performed by two () persons wearing gloves. Figure 4 Before positioning the grill unit into the prepared enclosure or insulated jacket, depending on the available access, it may be necessary to temporarily disconnect the LP regulator or Natural Gas connector hose from the steel flex line.
  • Page 11: Inside Components

    VCS300SSBI/500SSBI Series Assembly Step 6: Install Internal Components and Knobs Parts Required: VCS300SSBI VCS500SSBI (3) Sear Plates (5) Sear Plates () Cooking Grates (4) Cooking Grates (1) Warming Rack (1) Warming Rack (4) Knobs (6) Knobs (1) Smoker Box (1) Smoker Box Figure 5 Carefully place each of the sear plates side by side inside the grill by making sure the semi- circular finger groove is facing toward the front of the grill.
  • Page 12 Cooking Tips - Smoker Box • To produce more smoke and prevent fast burning, pre-soak the wood chips in a separate bowl of water for at least 0 minutes. • To add wood chips before cooking, fill the smoker box with your choice of flavored chips (remove wood chips from water first).

This manual is also suitable for:

Vcs500ssbi series
