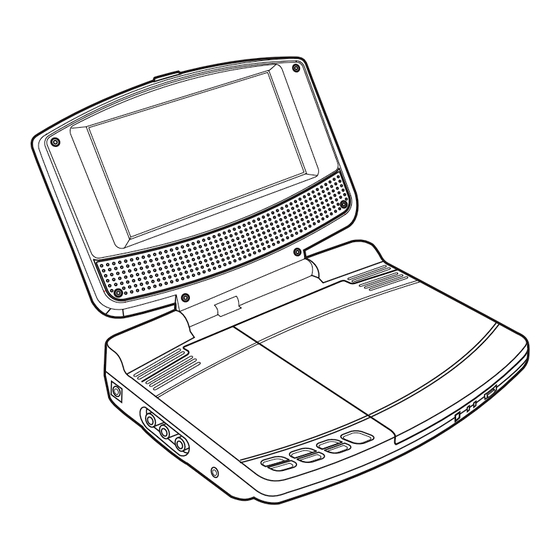

Venturer PVS1262 Owner's Manual

IMPORTANT SAFETY
INSTRUCTIONS
1. Read Instructions - All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future
reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should
be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water - for example, near
a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool, and the like.
6. Carts and Stands - The appliance should be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall
or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example,
the appliance should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or, placed in a built-in installation, such
as a book case or cabinet, that may impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance are not defeated.
12. Power-Cord Protection - Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the point where they exit from
the appliance.
13. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
14. Nonuse Periods - The power cord of the appliance should be unplugged from the outlet
when left unused for a long period of time.
15. Object and Liquid Entry - Care should be taken so that objects do not fall, and liquids
are not spilled, into the enclosure through openings.
16. Damage Requiring Service - The appliance should be serviced by qualified service
personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled, into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualified service
personnel.
DISC FORMATS
The unit can playback.
DVDs Audio CDs
[8cm/12cm disc] [8cm/12cm disc] Compatible
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the
Region Management Information that is encoded on DVDs. If the Region number printed on
the DVD does not correspond to the Region number of this unit,it cannot play that disc.
1
The region number of this unit is 1.
Disc Function or Operation that is Not Available
When the symbol appears on the screen, it indicates that the function or operation
attempted is not available at that time. This occurs because the DVD manufacturer determines
the specific functions of DVDs. Certain functions may not be available on some DVDs. Be
sure to read the documentation provided with the DVD.
Icons Used on DVDs
Sample lcons
1. English
2 Language selections for audio
2. French
1. English
2 Language selections for subtitles
2. French
Screen aspect ratio
LB
Multiple camera angles
2
Region code indicator
Note:
• When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played,
but the graphic images will not be shown.
Title, Chapter and Tracks
• DVDs are divided into "titles" and "chapters". If T
the disc has more than one movie on it, each movie
would be a separate "title". "Chapters" are sections
Chapter 1 Chapter 2 Chapter 3
of titles.
• Audio CDs are divided into "tracks". A "track" is
usually one song on an Audio CD.
Track 1 Track 2 Track 3
Note :
• Numbers identify each title, chapter, and track on a disc. Most discs have these numbers
recorded on them, but some do not.
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from
outside your geographic area or made for business purposes.
ACCESSORIES
Please check and identify the supplied accessories.
• To order accessories contact web site (http://www.venturersupport.com/pvs1262)
Remote with battery ....................................................................................... x 1
AC adapter ................................................................................................... x 1
Rechargeable battery ..................................................................................... x 1
E - 2
REMOTE CONTROL
Using the Remote Control
• Point the remote control at the REMOTE TO CHANGE REMOTE BATTERY
SENSOR located on the unit. 1. Open the
• When there is a strong ambient light
battery door.
source, the performance of the infrared
REMOTE SENSOR may be degraded,
causing unreliable operation.
2. Insert one
• The recommended effective distance for
remote operation is about 16 feet (5 CR2025 (3V)
meters). size battery.
Remove the PVC sheet before operating
the Remote Control. BATTERY REPLACEMENT
When the battery becomes weak, the
operating distance of the remote control
will be greatly reduced and you will need to
replace the battery.
Note:
• If the remote control is not to be used for a long time, remove the battery to avoid damage
caused by the corrosive effects of battery leakage.
WARNING: Do not dispose of battery in fire, battery may explode or leak.
CONTROL REFERENCE GUIDE
Remote Control
selected chapter or track.
6) Cursor (
TV MODE MENU
1 15
Use to highlight selections on a menu
2 STOP PLAY PAUSE GOTO 14
screen and adjust certain settings.
3
ENTER button
PREV SEARCH NEXT 13
4
Confirm selections on a menu screen.
12
MEMORY ANGLE DISPLAY
5 7) Number (0 - 9) buttons
M
11
Use when creating programmes, and
AUDIO
6
10
ENTER
entering a parental level password. Also
2 3 use to select a CD track directly.
SUBTITLE/ 8) SETUP button
RETURN
7 9
4 5 6
In stop mode, open and close the
SETUP menu.
7 8 9 0
REPEAT A-B button
SETUP
8
Perform point-to-point repeat playback
A-B DISC
REPEAT
on a DVD or CD.
REPEAT DISC button
Repeat chapter or title of a DVD.
Repeat single track or whole CD.
9) SUBTITLE button
1) TV MODE button
Select one of the subtitle languages
In stop mode, select whether to output
programmed on a DVD.
the video signal in PAL or NTSC. When
RETURN button
the TV shows "AUTO" this means the
Return to the normal operation after
output signal depends on the DVD If the
using the SETUP menu of a DVD.
TV shows "PAL" or "NTSC" it means the
10) AUDIO button
output signal is fixed to either "PAL" or
Select one of the audio sound tracks
"NTSC". For best results, keep this set
programmed on a DVD or select the
on "AUTO" or "NTSC".
audio output mode on an AUDIO CD.
2) STOP button
11) ANGLE button
Stop playing a disc.
Switches between multiple camera
PLAY button
angles when the DVD you are playing
Press to start or resume playback a disc.
has multiple camera angles recorded.
PAUSE button
12) DISPLAY button
Pause playback, frame advance.
Change disc status information displayed
3) PREV button
on the screen.
Move back through titles, chapters or
13)
tracks on a disc.
Move forward through titles, chapters or
4) / SEARCH buttons
tracks on a disc.
SEARCH: Fast reverse playback.
14) GOTO button
SEARCH: Fast forward playback.
Skip directly to a location on a DVD.
5) MEMORY button
15) MENU button
In stop mode, enter the number of a
Open and close DVD menu.
Unit
1
2
3
4
5
6
7
1) TFT cover STOP button
Chapter 1 Chapter 2 2) Rechargeable battery Stop playing a disc.
3) DC IN 9V / Car Plug 12V jack 9) PLAY button
4) AUDIO OUT L / R jacks Press to start or resume playback a disc.
VOL MAX 10) Disc Door
Track 4 Track 5
Adjust the VOLUME to MAX when 11) POWER ON / OFF switch
connecting the unit to another device. 12) POWER ON indicator
VIDEO OUT jack When the POWER ON / OFF switch is in
5) Headphone jack the ON position, the light will illuminate.
6) VOLUME + / - controls 13) CHARGING indicator
Adjust the volume. Charge the rechargeable battery before
7) PREV button using them for the first time. The normal
Press PREV button to go back to charging time should be completed at
previous chapters /tracks. Press and least 4-5 hours. The green charging light
hold PREV button to begin fast scan. will go out when the battery becomes fully
NEXT button charged.
Press NEXT button to advance 14) Remote sensor
chapters / tracks. Press and hold Receives the remote control unit signals.
NEXT button to begin fast scan. 15) BRIGHTNESS button
8) PAUSE button Adjust the relative lightness or darkness
Press to pause playback of disc. Each of the colour.
time you press the PAUSE button the 16) Screen switch
picture advances one frame. Press the WIDE : Wide screen
PLAY button to resume playback. NORMAL : Normal screen
E - 3
A. Using the AC adapter
This AC adapter operates on AC 100V -120V.
Cautions:
• The included AC adapter is for use
with this unit only. Do not use them
with other equipment.
• When the unit is not going to be used
for long time, disconnect the AC
adapter from the AC outlet.
• When the AC adapter is plugged in,
the apparatus is not completely
disconnected from the main, even
when the power is turned off.
B. Using a car plug adapter
A 12V car plug adapter allows the unit to be used with vehicles that have a 12V, negative
ground electrical system.
1 To Car plug
12V jack
Car plug adapter
Cautions:
• When purchasing a car plug adapter, seek expert advice to ensure that it is fully compatible
, , , ) buttons
with the unit.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is fastened securely to prevent it from falling or flying through the air in
the event of an accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may
become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car plug adapter from both the unit and cigarette lighter socket.
C.Using the rechargeable battery
• Charge the rechargeable battery before using them for the first time. The normal charging
time should be completed at least 4-5 hours. The green charging light will go out when the
battery becomes fully charged.
• The rechargeable battery is suitable when adapting the unit for portable use and when it
is convenient for you to enjoy the unique functions of the unit out of doors.
To recharge the battery
1 Place battery on
the bottom of the
DVD player
2 To the
slots
NEXT button
5 To AC 4
To DC IN
outlet
9V jack
Warnings:
• It could only be recharged when the unit is OFF and using the AC adapter.
• The rechargeable battery cannot be recharged when the unit is ON.
Cautions:
16
• The included AC adapter is for use with this unit only. Do not use them with other equipment.
15
• When the unit is not going to be used for long time, disconnect the AC adapter from the AC
outlet.
14
• When the AC adapter is plugged in, the apparatus is not completely disconnected from the
13
main, even when the power is turned off.
12
Condition and attention:
11
• When rechargeable battery power is low, the unit will stop playing.
• Do not short-circuit the terminals.
• Recharge the battery when you are ready to use it again.
• While using the rechargeable battery, the environmental temperature should be 5°C (41°F) to
10
35°C (95°F).
9 • To get the longest service life of the rechargeable battery, charge at indoor-temperature.
• Never dispose the rechargeable battery in fire or water. Never heat up the rechargeable battery.
8
• Do not open the rechargeable battery, refer servicing only to qualified service personnel.
Turning on the unit
1. Slide the POWER ON/OFF switch on the front of the unit to the "ON"
position.
2. The DVD logo (start-up picture) will appear on the screen.
A. Connecting a TV
• If your TV has audio/video inputs, you can also connect the unit to your TV using an
audio/video cable.
• You must adjust the VOLUME to
MAXIMUM when you connect this
unit to other equipment.
• Put down the TFT cover when the
playback mode is chosen.
Watching a DVD on your TV
1. Turn on the unit.
2. Turn on the TV and set it to DVD
mode.
B. Using Headphones / Earphones
POWER SUPPLY
• Turn down the volume before connection, and
then adjust the level.
• When headphones / earphones are connected,
no sound will be output from the unit's speaker.
Caution: Avoid listening to sound at levels
which may be harmful to your ears.
1
2 To AC
outlet
To "DC IN
9V" jack
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital
AC Adapter
can reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides
a downmix suitable for two-channel listening. An additional Dolby Digital
decoder is required for reproduction of the discrete multi-channel soundtracks
available on many DVDs.
Manufactured under license from Dolby Laboratories.
'Dolby' and
WARNING:
2
To the cigarette
Disconnect the car plug
lighter socket
adapter when not in use.
Not for use in 24V
vehicles.
This owner's manual explains the basic instructions for operating this unit. Some
DVDs are produced in a manner that allows specific or limited operation during
playback. Therefore, this unit may not respond to all operating commands. THIS IS
NOT A DEFECT. Please refer to the instructions accompanying the specific DVD in
question for more information about the options available on that DVD.
" " may appear on the screen during operation. A "
operation is not permitted by the unit or disc.
Playing a Disc
1. Slide the POWER ON/OFF switch on the front of the unit to the ON position.
See CUSTOMIZING THE FUNCTION SETTINGS before proceeding to step 2.
2. Open the disc door.
3. Hold the disc by its sides and carefully place it onto the spindle with
the label side facing up, pushing gently until you hear a "click".
4. Close the disc door.
It takes a short while for your unit to load the disc. After loading, the
unit will automatically either bring you to the main menu of the DVD, or
start playing the DVD.
5. If the unit does not automatically start playing the DVD, press the
Pausing playback (still mode)
Press the II
Each time you press the
Stopping playback
Press the
playback at the position where the disc was stopped, press the
3 To BATTERY If you press the
IN jack
PLAY button will reset the disc to the beginning.
Skipping to a different track
• Press the
• Press the
• For audio CDs, use the number buttons on the remote control to jump immediately to the
7
Charging
light ON desired track number.
Fast Forward/Fast Reverse
6
Turn power to OFF
position this will 1. Press the SEARCH
start recharging
• The disc begins a fast scan at two times normal (x2) speed.
the battery 8
Recharging is
completed when • Four speeds are available. Each time the SEARCH button is pressed, the speed of the
charging light
fast scan changes in the following sequence:
goes out
Note:
You also can press and hold
fast scan speeds.
2. Press the
speed.
SKIP (Forward / Reverse)
While you are playing a disc, press the
chapter or track. Press the
automatically start playing it.
Audio selection
On some discs, the sound is recorded in two or more formats. Follow the directions below
to select the type of playback.
1. While a disc is playing, press the AUDIO button to
show the current audio format number.
2. Press the AUDIO button repeatedly to select the desired
audio format.
Notes :
• If only one audio format is recorded, the number does not change.
• About two seconds later, playback continues in the new audio format.
Subtitle selection
CONNECTIONS
1. While a DVD is playing, press the SUBTITLE / RETURN button to
display the current language setting, as shown in the example below.
2. Press the SUBTITLE / RETURN button repeatedly to select the desired
subtitle language.
Notes :
• If only one language is recorded, the language does not change.
• About two seconds later, playback continues with the new subtitle you selected.
TV
• The number of languages recorded differs depending on the disc.
• If no button is pressed within a few seconds, playback continues without changing the
R
To VIDEO/AUDIO
current subtitle.
AUDIO
IN
OUT jacks
• This function can only be used for discs on which subtitles have been recorded in multiple
L
languages.
VIDEO
• On some DVDs, subtitles are activated from the main menu of the DVD. Press the MENU
IN
button to activate the main menu.
AUDIO / VIDEO cable (not supplied)
E - 4
Headphones /
Earphones
(3.5mm diameter plug)
SOUND SYSTEM
the double-D symbol are trademarks of Dolby Laboratories.
PLAYING A DISC
Basic playback
DVD
" means that the desired
PLAY button.
PAUSE button. To resume normal playback, press the PLAY button.
II PAUSE button, the picture advances one frame.
STOP button at the location where you want to interrupt playback. To resume
PLAY button.
STOP button twice, the unit's memory will be cleared and pressing the
PREV button repeatedly to skip to the start of the current or previous track.
NEXT button to skip to the next track.
or SEARCH button when a disc is playing.
X 2 X 4 X 8 X 20
/ (PREV/NEXT) buttons repeatedly to select different
PLAY button when you reach the desired point to resume playback at normal
NEXT button to move to the beginning of the next
PREV button to move to the previous chapter or track and
DVD
: [1ENG 5.1CH]
DVD
: [2ESP]
E - 5
CD
