Summary of Contents for Venturer GB - 1

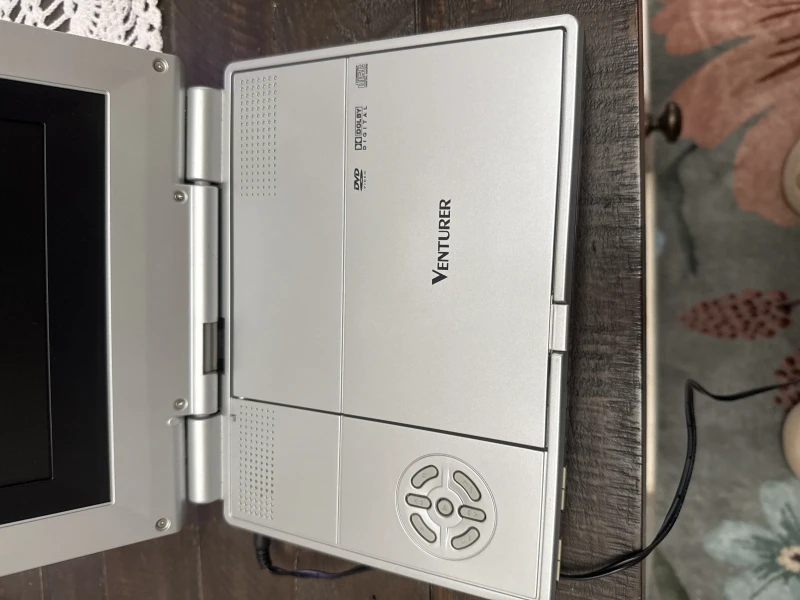

- Page 1 7 inch Dual Screen Mobile DVD System OWNER'S MANUAL...
-
Page 2: Safety Precautions
1 to 2 hours before turning the power on, or gradually heat the room and let the unit dry before use. rating Plate Location • The rating plate location is at the back of the unit. GB - 1 BacK). uSer- PreVent fire... -
Page 3: Important Safety Instructions
Safety PrecautionS notes on copyright It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission. Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936 licensed for limited viewing uses only. This product incorporates copyright protection technology that is protected by U.S. -
Page 4: Table Of Contents
taBLe of contentS Safety Precautions ...1 Important Safety Instructions ...2 Table of Contents ...3 Disc Formats ...4 Accessories ...5 Remote Control ...5 Control Reference Guide ... 6-7 Remote Control... 6 Main Unit... 7 Monitor ... 7 Power Supply ... 8 Using the Car Power Adapter ... -
Page 5: Disc Formats
The unit can playback discs bearing any of the following marks: DVDs [8cm(3")/12cm(5") disc] region Management information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc. -
Page 6: Accessories
Please check and identify the supplied accessories. Remote Control (with battery)...x 1 Car Power Adapter ...x 1 DC-AV Cable ...x 1 Mounting Strap ...x 2 reMote controL using the remote control • Point the remote control at the REMOTE SENSOR located on the unit. -
Page 7: Control Reference Guide
controL reference GuiDe remote control 1) ViDeo MoDe button Adjusts Brightness, Panel Display or Contrast of the unit of screen. PreV button Moves back through titles, chapters or tracks on a disc. SearcH buttons SEARCH: Fast reverse playback. SEARCH: Fast forward playback. 4) Goto button Skips directly to a location on a DVD/CD. -
Page 8: Main Unit
controL reference GuiDe Main unit 1) remote Sensor Receives the remote control signal. PoWer on indicator When the STANDBY / ON switch is in the ON position, the green light will illuminate. oPen Button Press the OPEN button and hold the front panel to open the disc door. -
Page 9: Power Supply
using the car Power adapter The included 12V car power adapter is designed for use with vehicles that have a 12V, negative ground electrical system. a. using the DVD Player and the Monitor together DVD player right side AV-DC cable (included) To A/V OUT &... -
Page 10: Connections
a. Watching a DVD on the DVD Player and the Monitor You can watch the same DVD on the DVD Player and the monitor. DVD player right side To A/V OUT & DC IN 9V-12V jacks Watching on the DVD Player and the Monitor 1. -
Page 11: Connecting A Stereo Receiver Or Amplifier
C. Connecting a Stereo Receiver or Amplifier (for the DVD Player Only) The DVD Player can play two channels Dolby Digital. Listening on external audio equipment 1. Connect the DVD Player to the left/right Audio In jacks on the other equipment using a standard Audio cable (not included). 2. Turn on the DVD Player. 3. -
Page 12: Using The Monitor With Other Equipment While
e. using the Monitor with other equipment while Playing DVD on the DVD Player You can use a game console or other video equipment on the monitor while playing a DVD on the DVD Player. Game System / Video Equipment DVD player right side AV cable... -
Page 13: Mounting In The Vehicle
MountinG in tHe VeHicLe Mounting in the Vehicle Use the supplied mounting straps to install the DVD Player and monitor on the back of the vehicle's headrests. Tightly wrap the mounting strap around the headrest. Safety WarninG! • This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving. •... -
Page 14: Using The Stand For Desktop Use
uSinG tHe StanD for DeSKtoP uSe You can stand the main unit or monitor up on a desk or table using the stand on the back. Dolby Digital Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce from one to 5.1 discrete channels of excellent quality audio. -
Page 15: Playing A Disc
cD/DVD oPeration This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. NOT A DEFECT. Please refer to the instructions Playing a Disc 1. -
Page 16: Audio Selection
cD/DVD oPeration auDio SeLection (DVD) On some discs, the sound is recorded in two or more formats. Follow the directions below to select the type of playback. 1. While a disc is playing, press the AUDIO button to show the current audio format number. -
Page 17: Locating A Desired Section
SPeciaL functionS Locating a specific title (DVD) If a DVD contains title numbers, you can locate a specifi c title by directly selecting its title number. 1. Press the GOTO button. 2. Press the button to highlight title number, press the corresponding number buttons (2 digits) for the title you want. -
Page 18: Viewing Jpg Files
VieWinG JPG fiLeS This unit can play JPG files recorded on a CD-R or CD-ROM disc (CD-RW is not recommendable). Viewing JPG files 1. Open the disc door. 2. Hold a JPG file disc by its edge and gently push it onto the spindle with the label side facing up until you hear a “click”. -
Page 19: Repeat Playback
rePeat PLayBacK You can play a specific title or chapter repeatedly. (Chapter repeat, title repeat, A-B repeat) repeating a chapter (DVD) You can play the same chapter repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the screen. -
Page 20: Customising The Function Settings
cuStoMiSinG tHe DVD function SettinGS LanGuaGe SetuP 1. In STOP mode, press the SETUP button. 2. Press the button to select Language setup page. 3. Use the button to select the option (OSD Language, Audio, Subtitle or Disc Menu), then press the 4. -
Page 21: Misc Setup
cuStoMiSinG tHe DVD function SettinGS tV DiSPLay Pan Scan • When wide-screen video is played, this mode clips the right and left sides of the image so that it can be viewed on a conventional screen. • Some wide-screen DVDs that do not permit Pan Scan mode playback are automatically played in letterbox mode (black bands that appear at the top and bottom of the screen). -
Page 22: Troubleshooting Guide
• Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again. Specifications and external appearance are subject to change without notice. Please visit online help at www.venturer.com Need more help? GB - 21... -
Page 23: Limited Warranty
The customer is responsible for all transportation charges to the service facility. Packaging and Shipping instruction When you send the product to the Venturer service facility you must use the original carton box and packing material or an equivalent as designated by VENTURER. your responsibility (1) You must retain the original sale receipt to provide proof of purchase. - Page 24 The time within action must be commenced to enforce any obligation of VENTURER arising under the warranty or under any statute, or law of the United States or Canada or any state thereof, is hereby limited to ninety (90) days from the date of purchase. This limitation does not apply to implied warranties arising under state law.
