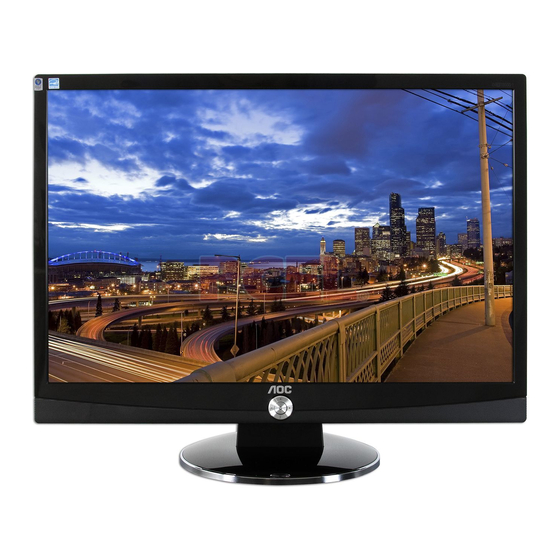

AOC 2217V User Manual
AOC 2217V User Manual

AOC 2217V User Manual

Tft color lcd monitor
Hide thumbs Also See for 2217V:

Advertisement

Quick Links

2217V User's Manual
About This Guide
This guide describes the monitor's features, setup, and operation. lnformation in this document is subject to change without
notice.
The sections are as follows:
Safety
Instructions: lists safety information.
Setup: describes the initial setup process.
Using the
Monitor: gives an overview of how to use the monitor.
Drivers: provides driver installation instructions for Windows.
Technical Support
Product
Information: lists the technical specifications of the monitor.
Warranty
Statement: Warranty Statement used in Europe.
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes,
cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the
warning is mandated by regulatory authority.
Product Registration
Please link www.aoc.com, select your country or region, log in Product Registration to register .
: provides tips and solutions for common problems.

Advertisement

loading

Summary of Contents for AOC 2217V

  • Page 1 2217V User’s Manual About This Guide This guide describes the monitor's features, setup, and operation. lnformation in this document is subject to change without notice. The sections are as follows:  Safety Instructions: lists safety information.  Setup: describes the initial setup process.
  • Page 2 FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions. ...
  • Page 4: Adjusting Viewing Angle

    Setup the stand and base Please setup or remove the base following below steps. Adjusting Viewing Angle  For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
  • Page 5 Cable Connections On Back of Monitor and Computer Turn off your computer before performing the procedure below. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
  • Page 6 This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps: Remove the base. Follow the manufacturer's instructions to assemble the wall mounting arm. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
  • Page 7 Setting the Optimal Resolution The recommended resolution for this monitor is 1680 by 1050. To setup the monitor to this resolution, follow the steps below. Click START. Click SETTINGS. Click CONTROL PANEL. Double click DISPLAY. Click SETTINGS. Set the resolution SLIDE-BAR to 1680 by 1050. External Controls Press the power button to turn the monitor on or off.
  • Page 8  Source hot key : When the OSD is closed, press Auto/Source button will be Source hot key function (Only for the models with dual or more inputs) .Press Source button continuously to select the input source showed in the message bar , press Menu/Enter button to change to the source selected.
  • Page 9 Full Enhance: When "Full Enhance" is turned on, the color saturation of the entire screen is fully enriched, thus all colors become more vibrant. Nature Skin: When "Natural Skin" is turned on, the red and yellow colors are enriched automatically, thus presents human skin with more natural and truer colors.
  • Page 10 Sky Blue: When"Sky Blue" is turned on, the color blue is being fine-tuned so that the sky or ocean landscape will look more vivid and in-depth. "Sky Blue" setting is ideal for viewing sky and ocean images. Auto Detect: When “Auto Detect” is turned on, every pigment will be detected and self-adjusted to render a lively picture. Demo: Screen divided into two for demonstration purposes.
  • Page 11 adjusted. "Picture Boost" is located in the fifth icon labeled "Picture Boost" in the OSD menu. Turn on "Bright Frame" to select a zone on the screen to be enhanced. Please note when adjust or turn on any one of the DCB features, the rest of color settings including DCR will be disabled or return to default.
  • Page 12 will be disabled. DCR Demos: Disclaimer: DCR aftereffects are subject to the resolution and quality of the display content, hence may look different than the above illustrations. Function Control Illustration Luminance Brightness Contrast Eco mode Adjust Range 0-100 0-100 Standard Text Internet Description...
  • Page 13 Game Movie Sports Gamma1 Gamma Gamma2 Gamma3 Image Setup Clock 0-100 Phase 0-100 H.Position 0-100 V.Position 0-100 Color Temp. Warm 6500K Normal 7300K Cool 9300K sRGB User Green Blue Color Boost Full Enhance on or off Nature Skin on or off Green Field on or off Sky-blue...
  • Page 14: Installation

    OSD Setup H.Position V.Position Timeout Transparence Language Extra Input Select Auto Config Image Ratio DDC-CI Information Reset Reset Exit Exit Notes: 1)If the product has only one signal input, the item of "Input Select" is disable to adjust. 2)If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disalbe to adjust. 3)One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.
  • Page 15 Using “i-menu” 1. Luminance Luminance Contrast Brightness Eco mode Gamma Adjust Range 0-100 0-100 Standard Text Internet Game Movie Sports Gamma1 Gamma2 Gamma3 Description Contrast from Digital-register. Backlight Adjustment Standard Mode Text Mode Internet Mode Game Mode Movie Mode Sports Mode Adjust to Gamma1 Adjust to Gamma 2 Adjust to Gamma 3...
  • Page 16 Reset Remarks: 1) If DCR is set to “on”, the other 4 items of Luminance cannot be adjusted. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off” automatically. 3) The Brightness and Contrast can be adjusted only when Eco-mode is on “standard mode”.
  • Page 17 3. Color Temperature Color Temp. Adjust Range Warm Normal Preset Cool sRGB User Green Blue Reset Remarks: 1) When “User” is chosen, you can change the monitor color to your desired color by setting the value of R-G-B. 2) When “sRGB” is chosen, the Brightness, Contrast and Gamma can not be adjusted. Description Recall Warm Color Temperature from EEPROM.
  • Page 18 4. Color Boost Color Boost Full Enhance Nature Skin Green Field Sky-blue AutoDetect Demo Reset Remarks: 1) There is only one item can be set to “on” except Demo. If you set any item to “on”, the others are changed to “off” automatically. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off”...
  • Page 19 5. Picture Boost Picture Boost Bright Frame Frame Size Brightness Contrast H. position V.position Reset Remarks: 1) Only when Bright Frame is set to “on”, the other 5 items can be adjusted. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off” automatically. Adjust Range on or off 14-100...
  • Page 20 6. Setting 7. Extra...
  • Page 21 8. Help On this page, you can find the information of the monitor . Welcome to link our website and send email to us if you have any problem. Compatibility : i-menu supports major graphic cards of ATI, Nvidia, Intel, VIA(S3). Please contact with us if your graphic card was not supported i- menu software.
  • Page 22: Specifications

    ® ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) GmbH has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. 2217V TFT Color LCD 0.282mm(H) x 0.282mm(V) R, G, B Analog lnterface & Digital Interface H/V TTL 16.7M Colors...
  • Page 23 Preset Display Modes STAND RESOLUTION Dos-mode 640¡Á400 @70Hz 640¡Á480 @60Hz Mac-mode 640¡Á480 @67Hz 640¡Á480 @72Hz 640¡Á480 @75Hz Dos-mode 720¡Á400 @70Hz SVGA 800¡Á600 @56Hz SVGA 800¡Á600 @60Hz SVGA 800¡Á600 @72Hz SVGA 800¡Á600 @75Hz VESA-Mode 848¡Á480 @60Hz Mac-mode 832¡Á624 @75Hz 1024¡Á768 @60Hz Mac-mode 1024¡Á768 @60Hz 1024¡Á768 @70Hz...
  • Page 24 Pin No. Signal Name TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock DDC Data N.C. Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
