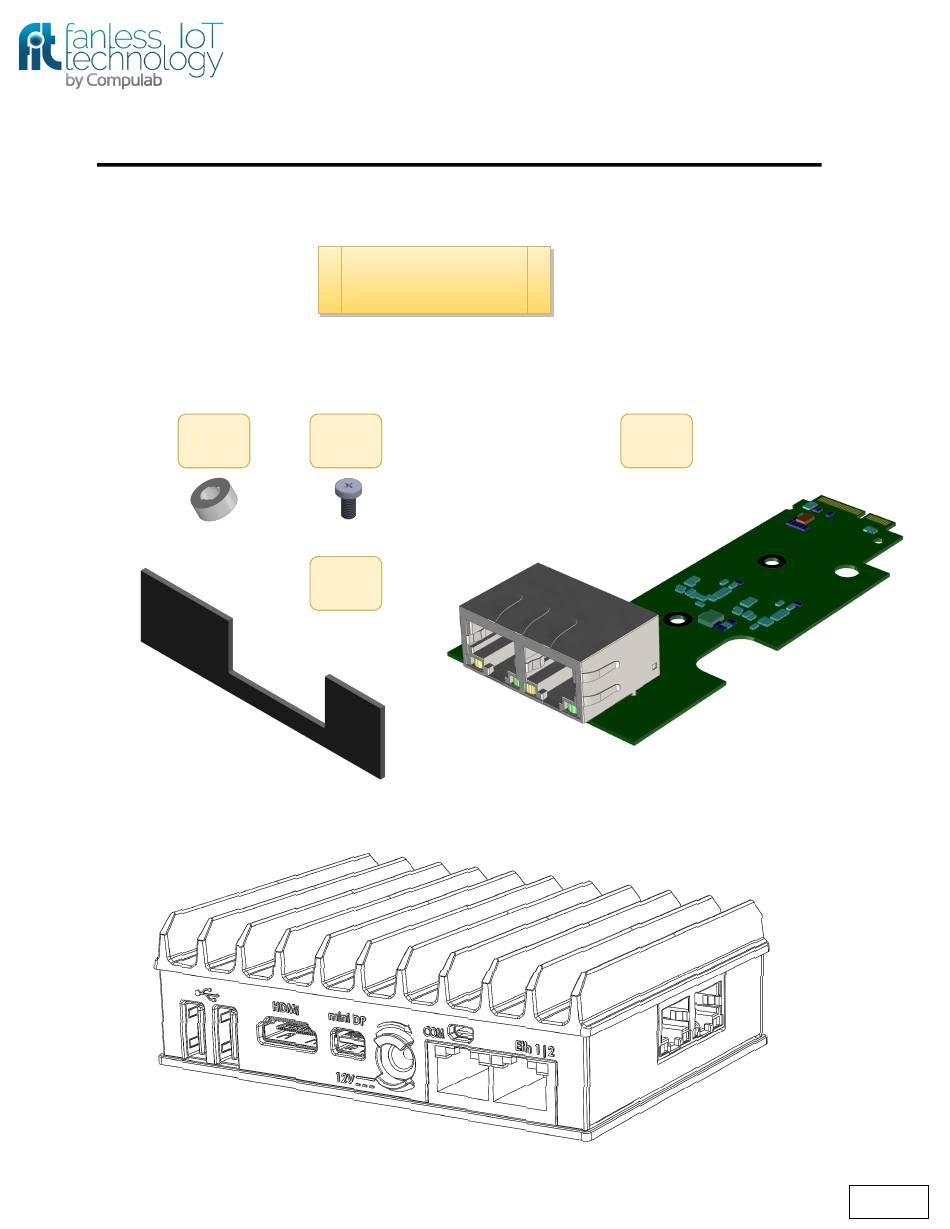

- Page 1 26-Dec-18 fitlet2 FC-M2LAN installation instructions Package Content 2x 2x 6mm 1x FC- retaining Phillips M2LAN Washer screw 1x side panel Page 1...
- Page 2 Remove the bottom cover by unscrewing the 4x Phillips chassis screws and pull out the cooling plate gently after removing the 3x Phillips screws. Place the retaining washers at the designated location on the cooling plate and seat the FC- M2LAN on-top of them.
- Page 3 Assemble the cooling plate onto the M.2 connectors Fasten the cooling plate in place assembling the 3x Phillips screws. The 3x Philips screws supplied with the product's packaging or already assembled. Stick the RTC battery in its place Page 3...
- Page 4 Note Before placing the bottom cover, make sure the U-shaped Boss is on the side of the M.2 connectors Screw the 4x Phillips enclosure screw half way, enough to hold the bottom cover in-place but not too tight Bring both side panels in place, and hold them Complete by tightening the Phillips enclosure screws all the...
