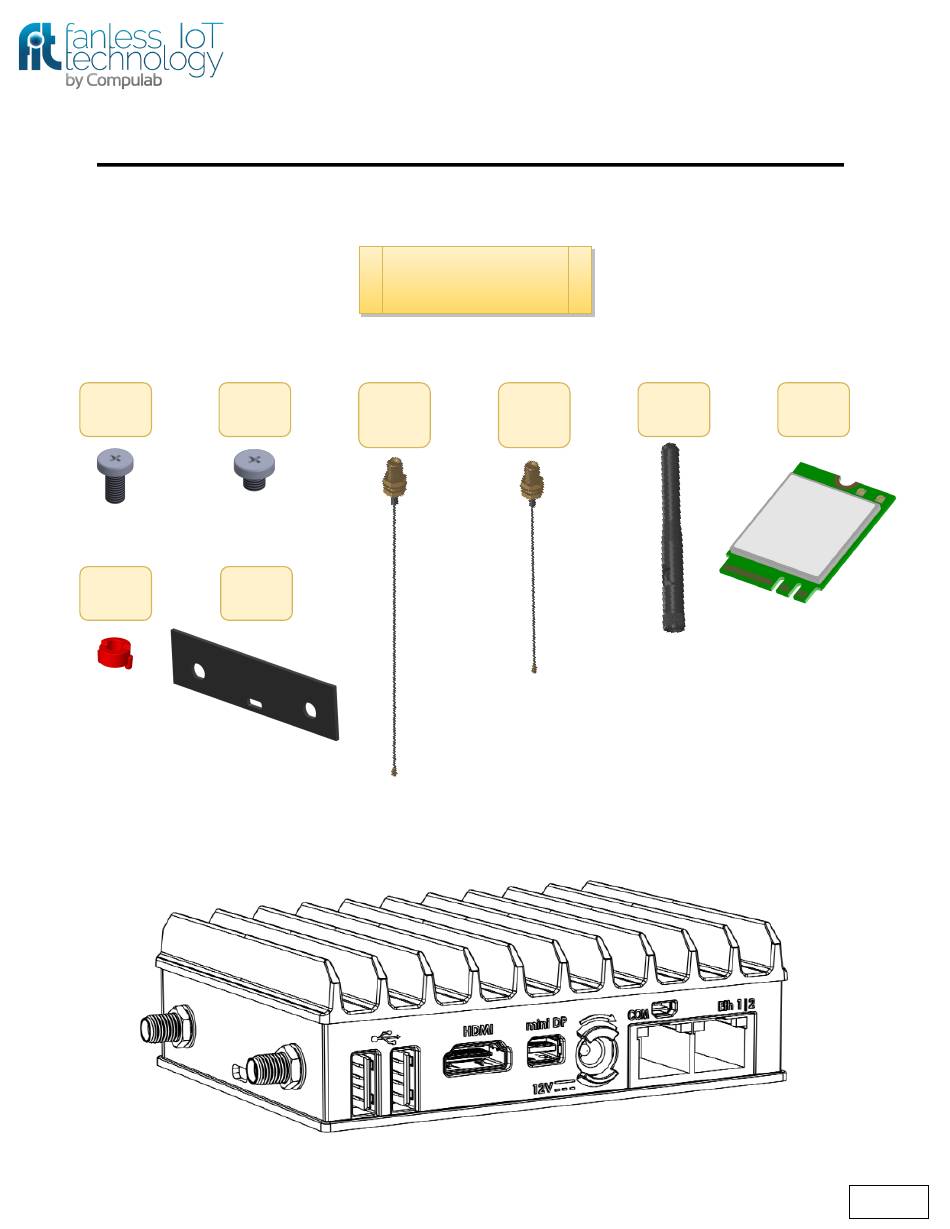

- Page 1 02-Jan-19 fitlet2 WiFi module installation instructions Package Content 1x Long 1x Short 1x 6mm 1x 3mm 2x RP- 1x WiFi RP-SMA RP-SMA Phillips Phillips module antenna antenna screw screw antenna cable cable 1x Module 1x side washer panel Page 1...
- Page 2 Plug the IPX antenna connectors to the WiFi module: Short cable to the #1 connector Long cable to the #2 connector Remove the bottom cover by unscrewing the 4x Phillips chassis screws and pull out the cooling plate gently after removing the 3x Phillips screws.
- Page 3 Route the long antenna cable down the adjacent hole on the cooling plate, running it all the way through the cooling plate's back. Route the short antenna cable down the adjacent hole on the cooling plate and draw it through the right side hole upwards Connect the cooling plate to the M.2 connectors...
- Page 4 Push the RP-SMA antenna jack through the side panel's holes. Complete by adding the ring and then fastening with the screw-nut Note: Mind that the SMA jack and the holes on the side panel are not completely round, and action to assemble them is pushing, not screwing Note:...
- Page 5 Screw the 4x Phillips enclosure screw half way, enough to hold the bottom cover in-place but not too tight Bring both side panels in place, and hold them Complete by tightening the Phillips enclosure screws all the way down, while holding the side panels Page 5...
