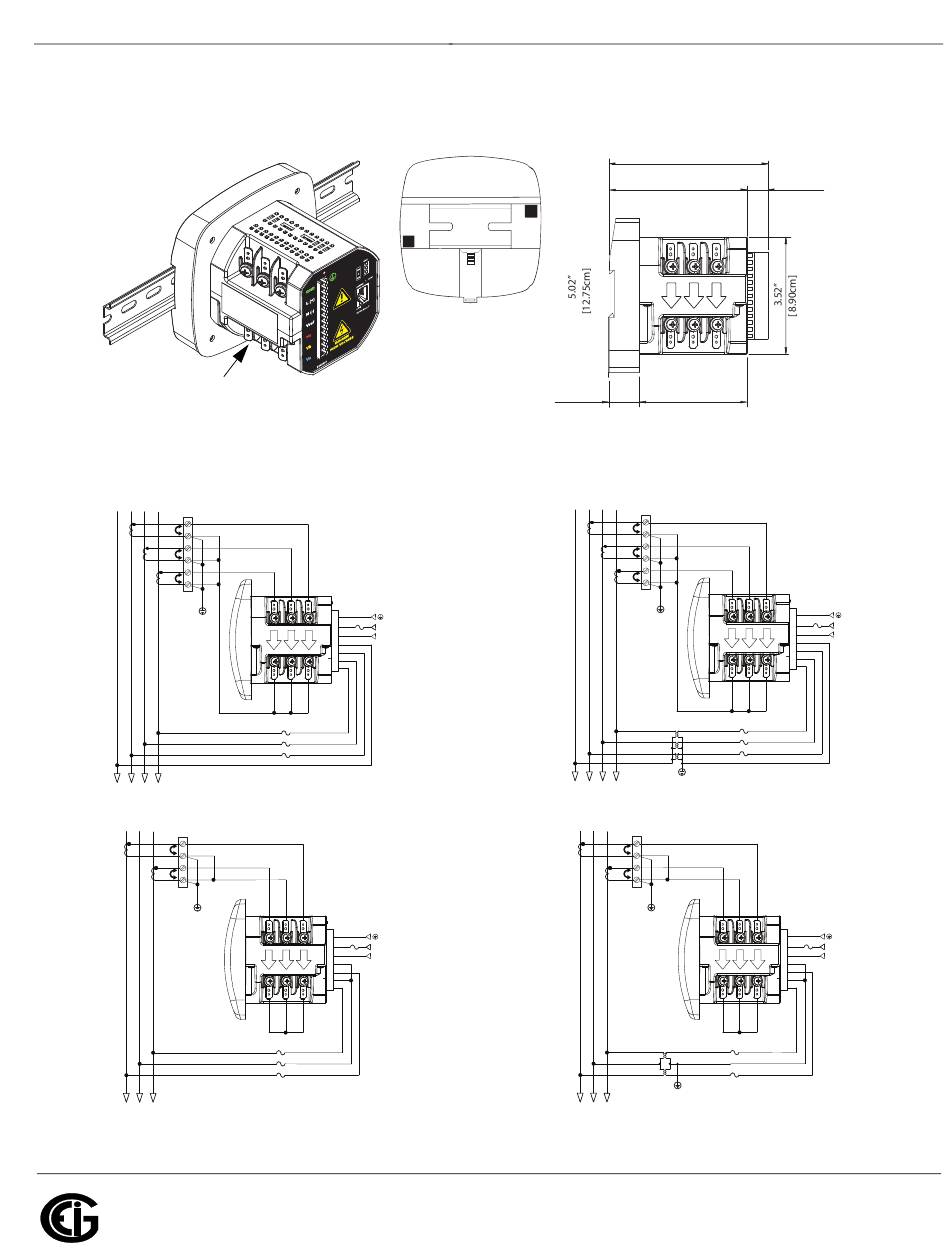

Shark 100BT Quick Start Manual

Mechanical Installation
Release clip
DIN Installation
Installation Steps: Slide top of groove of meter onto DIN Rail. Press gently until the meter clicks into
place. If mounting with DIN Rail provided, use Black Rubber Stoppers (also provided) shown above.
To remove meter, pull down on Release clip. Electrical Installation: Select diagram for your application.
LINE
N A B
C
CT
Shorting
Block
Earth Ground
HI
lc
LO
N A B C
LOAD
LINE
A B
C
CT
Shorting
Block
Earth Ground
HI
lc
LO
FUSES
3 x 0.1A
A B C
LOAD
NOTE: Other wiring configurations are available. See the full Manual on the enclosed CD.
Electro Industries/GaugeTech
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
The Leader In Power Monitoring and Smart Grid Solutions
Shark® 100BT Quickstart Guide
DIN Rail with black
Power
Supply
Connection
GND
FUSE
L(+)
L(+)
HI HI
N(-) 3A
N(-)
lb la
Vref
Va
LO LO
Vb
Vc
FUSES
3 x 0.1A
WYE direct, 3
phase, 4 wire
Power
Supply
Connection
GND
FUSE
L(+)
HI HI L(+)
N(-)
3A
N(-)
lb la
Vref
Va
LO LO
Vb
Vc
Delta direct, 3
phase, 3 wire
4.78"
[12.10cm]
[10.60cm]
HI HI
Ic Ib
LO LO
0.91"
3.25"
[2.31cm]
[8.26cm]
LINE
N
A B C
CT
Shorting
Block
Earth Ground
Earth Ground
N A B C
LOAD
LINE
A B C
CT
Shorting
Block
Earth Ground
Earth Ground
A B C
LOAD
#
Doc E145753 V.1.04
Shark® 100BT Quickstart
4.16" 0.62"
[1.61cm]
HI
Ia
LO
100BT
Dimensions
Power
Supply
Connection
GND
FUSE
L(+)
L(+)
HI HI HI
N(-) 3A
N(-)
lc lb la
Vref
Va
LO LO LO
Vb
Vc
FUSES
3 x 0.1A
WYE with PTs,
3 phase, 4 wire
Power
Supply
Connection
GND
FUSE
L(+)
HI HI HI L(+)
N(-) 3A
N(-)
lc lb la
Vref
Va
LO LO LO
Vb
Vc
FUSES
2 x 0.1A
Delta with PTs, 3
phase, 3 wire
QS - 1
