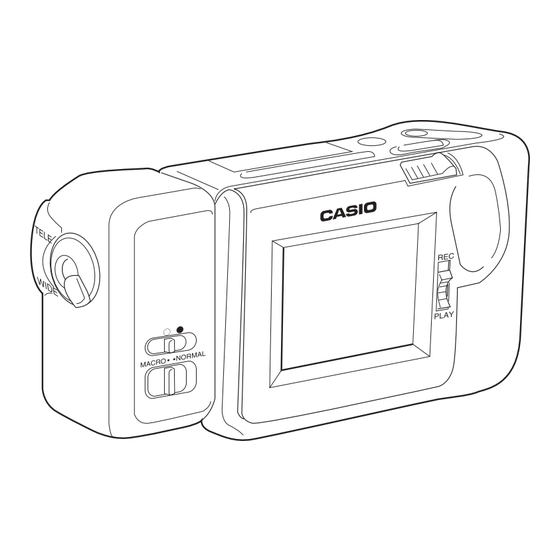

Casio QV-30 Service Manual & Parts List
  1. Manuals
  2. Brands
  3. Casio Manuals
  4. Digital Camera
  5. QV-30
  6. Service manual & parts list
Casio QV-30 Service Manual & Parts List

Casio QV-30 Service Manual & Parts List

For ntsc
Hide thumbs Also See for QV-30:
Table of Contents

Advertisement

Quick Links

Download this manual
(without price)

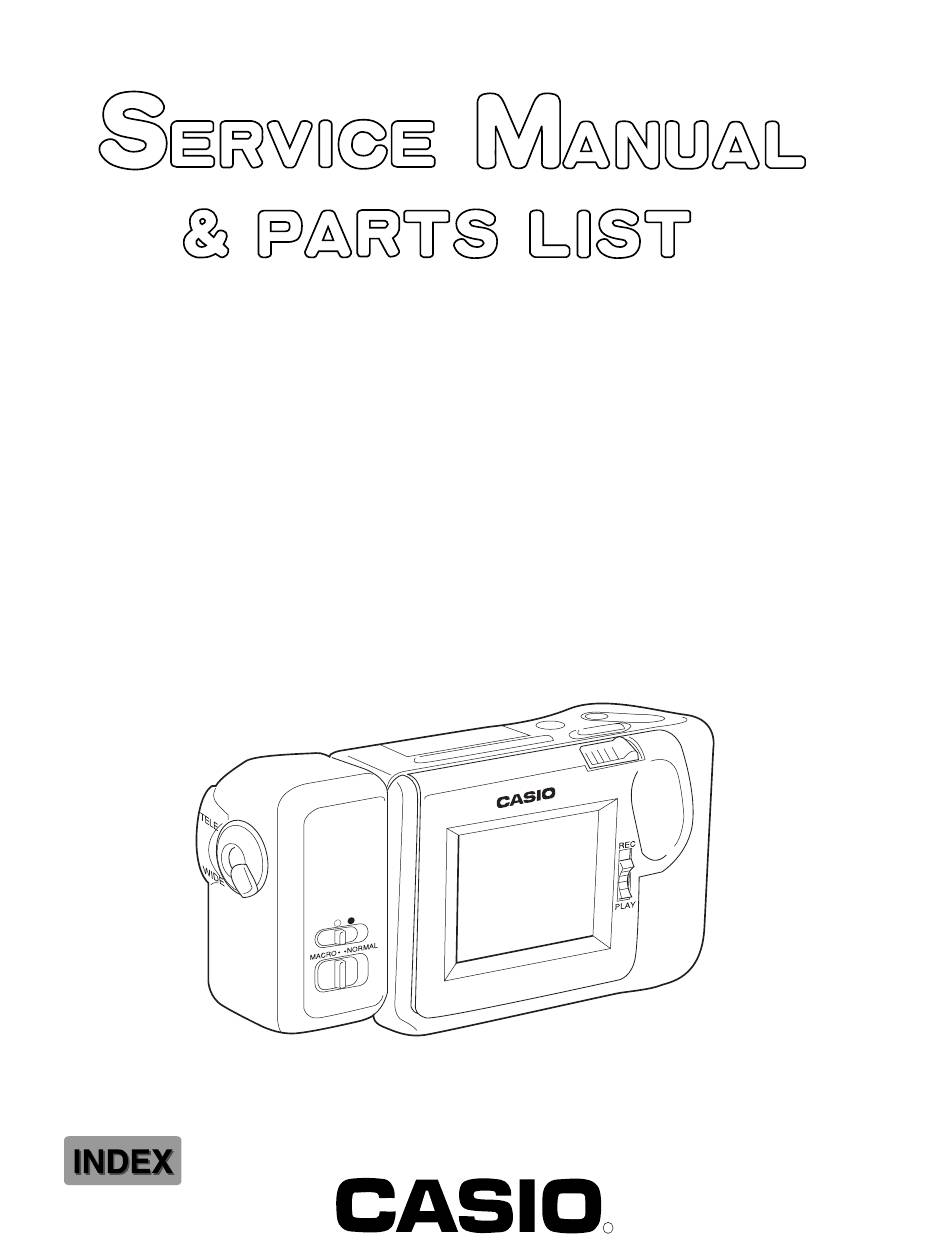

QV-30
(B)
(KX-724B)
(For NTSC)
APR. 1996
R

Advertisement

Table of Contents
loading

Related Manuals for Casio QV-30

Summary of Contents for Casio QV-30

  • Page 1 (without price) QV-30 (KX-724B) (For NTSC) APR. 1996...

  • Page 2: Table Of Contents

    CONTENTS SPECIFICATIONS ..................1 BLOCK DIAGRAM ..................2 CIRCUIT OPERATIONS ................3 COLOR ADJUSTMENT ................13 ADJUSTMENT ..................... 15 TROUBLESHOOTING ................. 18 DISASSEMBLY ................... 19 ASSEMBLY ....................21 PRINTED CIRCUIT BOARDS ..............23 EXPLODED VIEW ..................25 PARTS LIST ....................26 SCHEMATIC DIAGRAMS ................

  • Page 3: Specifications

    SPECIFICATIONS Item Specification 1. Recording System Digital (JPEG based)/Field recording 2. Video Signal System NTSC 3. Recording Medium Built-in 16-Mbit flash memory 4. Number of pages 5. Delete Functions Single page; All pages (with page protect feature) 6. Imaging Device 1/5-inch CCD (Total Number of Pixels: 250,000) 7.

  • Page 4: Block Diagram

    BLOCK DIAGRAM 1 1 1 1 2 2 2 2 Camera PCB Digital PCB 3 3 3 3 Linear PCB V RAM IC300 HM53812BJ8 IR3P90Y Gate Array HG51B167FB IC400 MSM6770GS Flash Memory 5 5 5 5 TC5816FT-1 VIDEO OUT (Video I/O) (KM29N16000T) D RAM HM514B00...

  • Page 5: Circuit Operations

    CIRCUIT OPERATIONS CAMERA UNIT (CAMERA PCB) The camera unit is composed a lens, color filter, CCD (IC802), driver (IC800) and signal processor (IC802). It produces voltages R, B, and G, for the colors red, blue, and green when light from a scene is focused on the surface. These voltage values vary according to the intensity of the respective color being scanned.
  • Page 6 3 CCD (IC802) A charge-coupled device in which charges are introduced when light from a scene is focused on the surface of the device. The image points are accessed sequentially to produce a television-type output signal. Effective picture element: 249,936 = 508 (H) x 492 (V) 532(H) 508(H) PHIS1~PHIS4:...
  • Page 7 96 images can be stored in flash memory. The color and the luminance data are mixed in the gate array to make the video signal. As to spare parts for digital PCB, Casio supplies PCB ass'y and the individual parts. — 5 —...
  • Page 8 CPU (IC600) Controls the CCD, D RAM, Flash memory and key operation. 1 CPU (IC600) Controls the CCD, D RAM, Flash memory and key operation. PA15 ~ PA0 CS3 ~ CS0, A21 ~ A16 Port A Address RAM1 PROM/MASKROM1 Reset, MD2 ~ MD0, EXTAL,...
  • Page 9 CPU PIN FUNCTION Pin No. Terminal Name IN/OUT Function PB14 OUT Timing pattern output. PB15 Not used. Ground terminal. 4 - 11 AD0 - AD7 IN/OUT Address bus. Ground terminal. 13 - 14 AD8 - AD9 Not used. Power source. 16 - 21 AD10 - AD15 Not used.
  • Page 10 Pin No. Terminal Name IN/OUT Function 85, 86 AVCC, AVREF Connected to VCC3. 87 - 89 PC0 - PC2 Key input terminal. Low battery detection terminal. AVSS Ground terminal. 92 - 95 PC4 - PC7 Not used. Power source. 97, 98 PB0, PB1 IN/OUT Port B.
  • Page 11 3 V RAM 3 V RAM It is used for encoder function. It is used for encoder function. 4 Flash Memory 4 Flash Memory Up to 96 images can be stored in memory. Flash memory does not require electrical power Up to 96 images can be stored in memory.
  • Page 12 LINEAR PCB IC300 generates the tricolor (red, green and blue) from the video signal, and IC400 controls the TFT-LCD display. Power Supply Terminal Voltage Purpose VCC2 4.3 ~ 4.7 (V) Logic circuit VCC4 9.5 ~ 11.0 (V) Display VEE2 -7.0 ~ -8.0 (V) Display VEE4 -16.5 ~ -17.9 (V) Display...
  • Page 13 IC400 Key control 39 AFTO 46 VREF 45 U1 Analog control 44 VH1 5.9MHz control 43 VL1 Clock 41 OUT Mode control Horizontal control Mode Tuning program Control control VMUTEB VTUCK POCL 34 SW Channel Tuning Up/Down VBAR bar control CK2 Initial counter UBAR...
  • Page 14 TFT-LCD Selective period Source electrode Gate electrode Gate Frame period pulse Picture element A t1 t2 t3 Common substrate TFT array substrate Picture Common element electrode V COM Each picture element electrode is controlled by a transistor. To the gate electrodes, the gate pulse is applied timesharing.

  • Page 15: Color Adjustment

    Notes: • The support utility disk for QV-30 does not work for QV-30. • Use an AC adapter for the power source of the QV-30 to avoid the failure of the adjustment. • QV-30 support utility disk is supplied from CASIO. Please contact to Technical Dept., Overseas Service Div.
  • Page 16 Execution of the color adjustment 1. Set the aperture switch to F8 position, and turn on QV-30. F2.8 MACRO NORMAL 2. Put the color filter on the light source, and turn on the light box. Color filter: LBA 3 Light box: Handy 5000 3.

  • Page 17: Adjustment

    ADJUSTMENT LINEAR PCB Items to Be Adjusted Item Measuring Instrument VCC2 voltage setting Voltmeter, Regulated power supply VBL voltage setting Voltmeter, Regulated power supply Vcom adjustment Patern generator, Oscilloscope, Regulated power supply, Photo sensor amp., Band pass filter Free-running Frequency Pattern generator, Oscilloscope, Regulated power supply adjustment Bright and Contrast adjustment...
  • Page 18 Equipment Connection / Adjustment Procedure VCC2 Voltage Setting Regulated QV-30 QV-10 power Voltmeter supply Input Output DC Jack CP108 5.0 ± 0.05 V Input Input Input Output Output Adjust Result Connection Point Signal Connection Point Adjust for 4.50 ± 0.02 V...
  • Page 19 2) Press the self-timer and the DEL button at a time. 3) Press [+] or [–] to select the BLACK. 4) Press the shutter button. 5) Place a photo diode on the middle of the display. QV-30 Photo sensor amp. Oscilloscope Photo...

  • Page 20: Troubleshooting

    Bright and Contrast Adjustment Pattern QV-10 QV-30 VCC2 generator Oscilloscope 10 K CP303 Input Output CP412 CP101 CP410 Trigger Input Input Input Output Output Adjust Result Connection Point Signal Connection Point Adjust VR304 until A in the above diagram equals 3.5 ± 0.1 V.

  • Page 21: Disassembly

    DISASSEMBLY To disassemble the main unit 1. Rotate the camera unit then remove the two screws on the side of the unit. 2. Remove the two screws on the bottom of the unit and the battery cover. Then remove the upper case at the bottom of the unit.
  • Page 22 To disassemble the camera unit Note: The camera unit must be replaced with whole unit when it is defective, because the precise adjustment is required when the individual parts of the camera unit are replaced, and it can be done only at our factory.

  • Page 23: Assembly

    ASSEMBLY To assemble the main unit Slide switch 1. Be sure to align the slide switch on the linear PCB with the switch knob. Switch knob 2. Be sure to align the slide switch on the key PCB with Switch knob the switch knob.
  • Page 24 To assemble the main unit 1. Be sure to turn the lever to "TELE". 2. Be sure to align the lever of the outer case with the knob of the lens. Knob Lever 3. Confirm if the lens is switched by the lever. Lens Lever 4.

  • Page 25: Printed Circuit Boards

    PRINTED CIRCUIT BOARDS LINEAR C311 C310 VR301 C312 L300 C120 H300 C121 C307 C123 C321 C318 R316 IC300 C303 C322 D103 R301 R318 C125 C300 R319 R301 C333 R421 R110 Q401 VR100 R320 R121 R111 R420 IC100 C101 C144 L401 C409 C150 D105...
  • Page 26 DIGITAL CN601 C548 C731 C549 R511 R510 C543 R516 C517 C662 C531 T500 C661 C540 C730 C544 R509 C545 C523 R517 C546 C542 C541 L504 R605 R606 Q610 IC701 IC601 Q611 C658 CN600 C657 C660 RM601 L711 L710 C659 Top View D506 R647 L740...

  • Page 27: Exploded View

    EXPLODED VIEW 25-1 25-2 25-3 25-4 25-5 25-6 23-1 11-1 — 25 —...

  • Page 28: Parts List

    PARTS LIST LINEAR PCB ASS'Y Item Code No. Parts Name Specification Connector CN400 3502 1410 Connector 52745-2090 Diodes D101 7101 1194 Chip diode MA111-(TX) D102 2390 1379 Schottky diode MA729-(TX) D103 2390 1379 Schottky diode MA729-(TX) D104 7101 1194 Chip diode MA111-(TX) D105 2390 1379 Schottky diode...
  • Page 29 DIGITAL PCB ASS'Y Item Code No. Parts Name Specification Diodes D500 2390 2268 Chip diode MA727-(TX) D501 2360 1876 Chip zener diode MA8100-M(TX) D502 2390 1379 Schottky diode MA729-(TX) D503 7101 1194 Chip diode MA111-(TX) D505 2390 2261 Chip diode MA720-(TX) D506 2390 1421 Chip schottky diode...
  • Page 30 KEY PCB ASS'Y Item Code No. Parts Name Specification Switches SW900 3412 1421 Slide switch ESD165227 SW901 3412 0882 Switch SKHUPD-T SW902 3412 0882 Switch SKHUPD-T SW903 3412 0882 Switch SKHUPD-T SW904 3412 0882 Switch SKHUPD-T SW905 3412 0882 Switch SKHUPD-T SW906 3412 0882 Switch...
  • Page 31 MAIN COMPONENT Item Code No. Parts Name Specification 6611 0670 Upper case K724AAA C140275-1 6611 0680 R-P knob K724AAA C340701-1 6611 0440 Power switch knob K724AAA C340700-1 6611 0470 Battery label K724AAA C441180-1 6611 1090 Rating plate K724BAA C441158-2 6603 8924 C knob A-K310 K3741D-1 6611 0690 Tape for LCD K724AAA C441068-1...
  • Page 32 ACCESSORY I t e m Code No. Parts Name Specification 5860 8085 Wrist strap ST3-340A 6608 9210 Cleaning cloth A-K613 K412004-1 1014 8773 Video cable C-K723-FC 1014 8857 Soft case SC-724 Notes: Q – Quantity used per unit R – Rank —...
  • Page 33 The following electrical parts will be not supplied from CASIO. (For QV-30B) C100 10SL10M C334 EMK212F105Z-T C621 10N1HCH330J-T1 C101 10SL47M C335 ECST1CX156R C622 10N1HCH330J-T1 C110 GR39W5R103K50PT C401 ECST0JY156R C623 10N1HCH330J-T1 C111 GR39Y5V104Z25PT C402 GR39Y5V103Z50PT C630 ECST0JY156R C112 GR39W5R332K50PT C404 EMK212BJ224K-T...
  • Page 34 The following electrical parts will be not supplied from CASIO. (For QV-30B) L301 BK1608HS601-T L714 ERJ-3GEYJ470V R326 ERJ-3GEYF473V L400 BK1608HS601-T L715 ERJ-3GEYJ470V R327 ERJ-3GEYF623V L401 BK1608HS601-T L716 ERJ-3GEYJ470V R328 ERJ-3GEYJ102V L402 BK1608HS601-T L717 ERJ-3GEYJ470V R400 ERJ-3GEYJ474V L500 CD43-100MC-T L718 ERJ-3GEYJ470V...
  • Page 35 The following electrical parts will be not supplied from CASIO. (For QV-30B) R617 ERJ-3GEYJ472V R618 ERJ-3GEYJ222V R619 ERJ-3GEYJ103V R620 ERJ-3GEYJ103V R621 ERJ-3GEYJ103V R624 ERJ-3GEYJ104V R644 ERJ-3GEYJ473V R647 ERJ-3GEYJ101V R650 ERJ-3GEYJ270V R651 ERJ-3GEYJ270V R652 ERJ-3GEYJ104V R653 ERJ-3GEYJ104V R654 ERJ-3GEYJ104V R655 ERJ-3GEYJ104V...

  • Page 36: Schematic Diagrams

    SCHEMATIC DIAGRAM LINEAR Chroma IC Display Controller Power Supply for LCD Power Supply for Back Light — 35 —...
  • Page 37 DIGITAL Gate Array Power Supply Circuit — 36 —...
  • Page 38 — 37 —...

  • Page 39: Waveforms

    WAVEFORMS 6.4 µsec 6 µsec 6.4 µsec 1 IC100 pin 5 2 Q100 collector 3 IC101 pin 5 6 µsec 63.5 µsec 63.5 µsec 5 IC300 pin 10 6 IC300 pin 21 4 Q101 collector 63.5 µsec 63.5 µsec 125 µsec 7 IC300 pin 20 8 IC300 pin 39 9 IC300 pins 32, 34, 36...
  • Page 40 MA0500361A...
