VocoPro Digital Quad Conference Owner's Manual

Hide thumbs

Advertisement

Quick Links

Digital Quad Conference
o
w
n
e
r
'
s
m
a
n
u
a
l

Advertisement

loading

Related Manuals for VocoPro Digital Quad Conference

Summary of Contents for VocoPro Digital Quad Conference

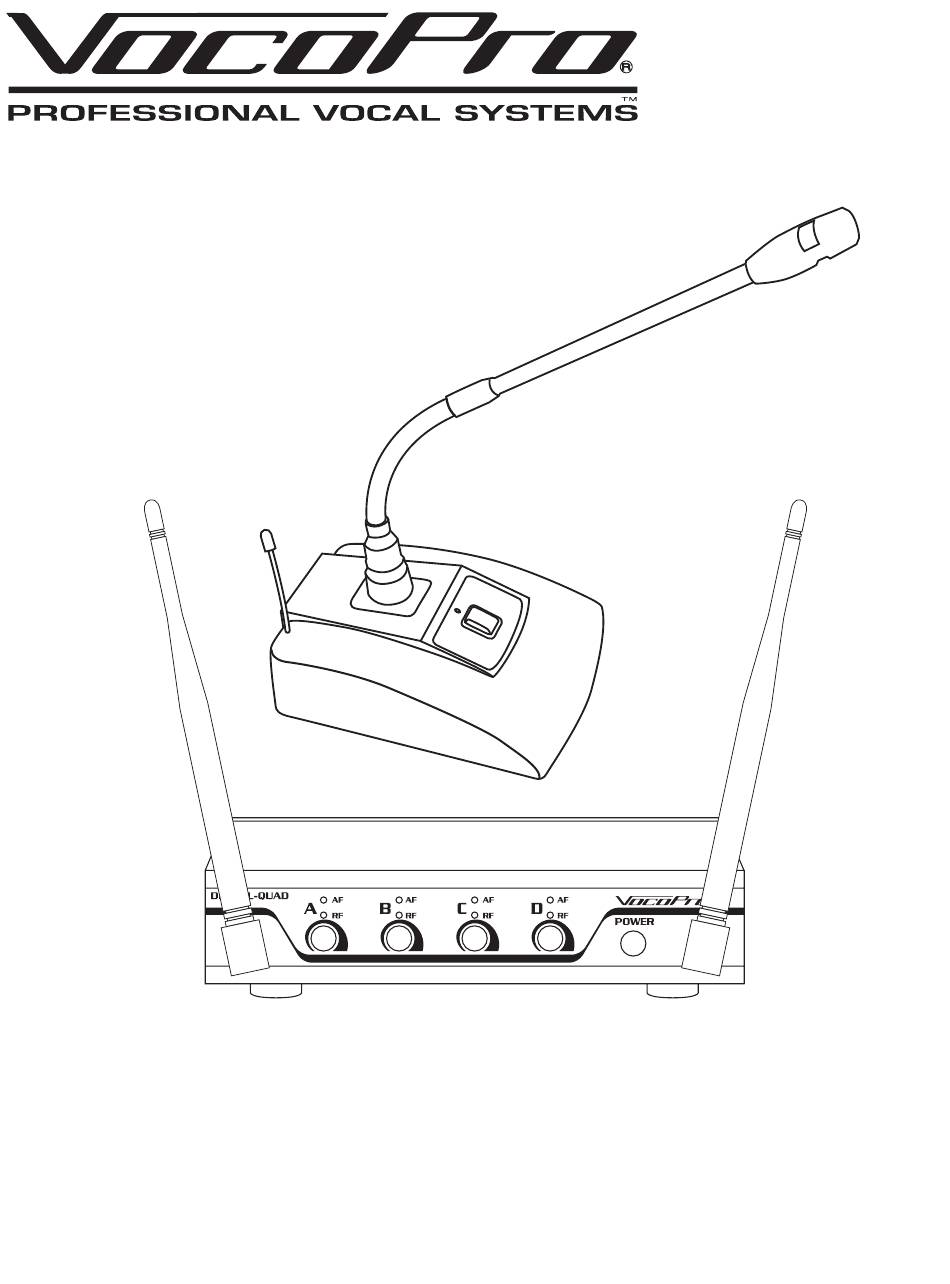

  • Page 1 Digital Quad Conference...

  • Page 2: Table Of Contents

    Table of Contents FCC Information ............3 Listening for a Lifetime ..........4 Safety Instructions ........... 5 Welcome ............... 6 Getting Started ............7 Getting Connected ........... 8 Discriptions and Functions ........12 Commonly Asked Questions ........14 FEATURES • Utilizes the Sparsely Used 900MHz Frequency Band •...

  • Page 3: Fcc Information

    1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, to reference. use this product. 2. Install your unit in a cool, dry, clean place - away from 2.

  • Page 4: Listening For A Lifetime

    Listening for a Lifetime Some common decibel ranges: The following noises can be dangerous under constant exposure:...

  • Page 5: Safety Instructions

    Safety Instructions 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. CAUTION For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.

  • Page 6: Welcome

    And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.

  • Page 7: Getting Started

    Getting Started WHAT’S IN THE BOX: - (4) Digital-Quad-Conference Mics - Digital-Quad Receiver - (2) Antennas - Power Adapter -1/4 Cable...

  • Page 8: Getting Connected

    Getting Connected 1. Attach the Conference microphone to the base transmitter • Match Pins and slotted groove of the Female XLR on the microphone to the pins of the Male XLR on the transmitter base and press down firmly. • Tighten sleeve on the Microphone’s XLR connector by turning clockwise.
  • Page 9 • Never mix old batteries with new batteries • Never mix alkaline, standard (carbon-zinc) or rechargeable batteries • Always remove exhausted or dead batteries from the Digital Quad Conference • Remove batteries if you must store the unit away for long periods of time...
  • Page 10 Conference microphone has paired successfully. • Speak into the microphone and verify that the AF LED light flashes for the corresponding connected channel. Your Digital Quad Conference is now connected to your Digital-Quad-Play. POWER Microphone Placement • Aim the microphone toward the desired sound source, such as the talker.
  • Page 11 Getting Connected TO CONNECT TO A MIXER UNBALANCED 1/4” 1. Connect unbalanced 1/4” cable (included) to the unbalanced output from the Digital-Quad receiver. 2. Connect the other end of the 1/4” cable to a microphone input channel on a mixer/amplifier. BALANCED XLR (OPTIONAL) 1.

  • Page 12: Discriptions And Functions

    Descriptions and Functions 1. GRILL - Protects the microphone cartridge and helps reduce “breathy” and wind noise pick-up. 2. POWER switch – Press once to turn the microphone power ON and press again to power OFF. The microphone will almost instantly pair with the receiver module once powered on.
  • Page 13 Descriptions and Functions RECEIVER - FRONT PANEL 1. ON/OFF Button - Powers the receiver on/off. 2. Mic Volume - Adjusts the volume of their respective microphone channels. 3. RF LEDs - Registers Mic status: LED will shine when associated mic is powered on. 4.

  • Page 14: Commonly Asked Questions

    A. Ensure the correct power supply is used with the Digital-Quad. A. Inspect power supply cable for frayed wired or loose connections. A. Find a suitable replacement for the original power supply; contact VocoPro for factory original parts at 800-678-5348.
  • Page 15 Specifications Type: Capacitance Frequency Repsonse: 100Hz~16KHz Polar pattern: Cardioid Output Impedance: Sensitivity: -40dB±2dB Working distance: 20cm~40cm (8-16inch) Battery: AA 1.5V*2 RF power: 10mW Band width: 300kHz Radio Frequency Range: 902.9-927.2MHz Modulation Mode: DQPSK Microphone Transmission Frequencies in MHz: 902.900 ORANGE 904.600 SKY BLUE 907.500...
  • Page 16 Notes FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)ÿThis device may not cause harmful interference, and (2) this device must accept any (2)ÿinterference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 18 Digital Quad Conference Owner’s Manual © VocoPro 2017 v1.0605 www.vocopro.com...
