Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty

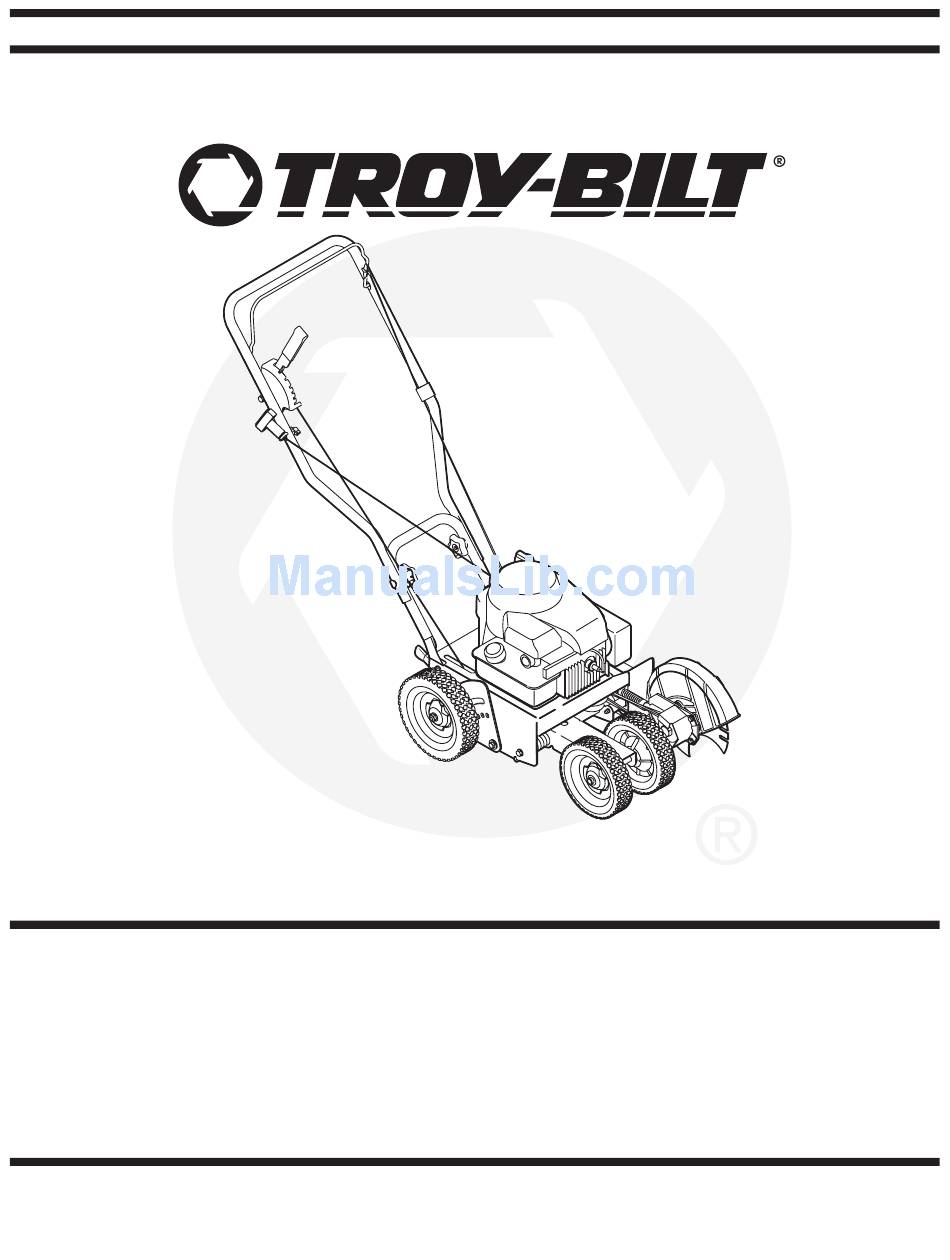

OPERATOR'S MANUAL
Edger — Model 554
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any uniiproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
PRINTED IN U.S.A
FORM NO. 769-02162B
Advertisement
Table of Contents
Related Manuals for Troy-Bilt 554
Summary of Contents for Troy-Bilt 554
- Page 1 Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty OPERATOR’S MANUAL Edger — Model 554 IMPORTANT READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION Warning: This unit is equipped with an internal combustion engine and should not be used on or near any uniiproved forest-covered, brush- covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
-
Page 2: Table Of Contents
6. Maintaining & Servicing Your Edger ... 10–11 7. Off-Season Storage ... 1 8. Troubleshooting ... 13 9. Parts List ... 14–15 10. Warranty...Back Cover Model Number www.troybilt.com Customer Support contacting Customer Support. Serial Number TROY-BILT LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 330-558-70 1-866-840-6483... -
Page 3: Safety Labels
Please take a moment to review your safety labels. Safety Labels WARNING This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. -
Page 4: Safe Operation Practices
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can Safe result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. - Page 5 6. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes. 7. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, slippery or light weight (e.g. canvas) shoes. 8. Never attempt to make any adjustments while the engine is running, except where specifically recommended in the operator’s manual. 9. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Washer your skin and change clothes immediately. 10. Do not put hands or feet near rotating parts. Contact with the rotating blade can amputate hands and feet. 11. The blade control handle is a safety device. Never bypass its operation. Doing so, makes the machine unsafe and may cause personal injury. 12. Never operate without blade guard, debris shield and blade control handle in place and working. 13. Never operate with damaged safety devices. Failure to do so, can result in personal injury. 14. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas. 15. Do not operate machine while under the influence of alcohol or drugs.
-
Page 6: Assembling Your New Edger
Assembling Your New Edger WARNING The edger blade WILL rotate when the starter rope is pulled. IMPORTANT: This unit is shipped WITHOUT GASOLINE. After setting up the unit, service engine with gasoline as instructed in the separate engine manual packed with your unit. -
Page 7: Know Your Edger
Starter Rope/ Recoil Starter Curb Height Adjustment Lever WARNING: Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly. NOTE: Refer to the Engine Manual packed with your edger for a detailed description of all engine-related controls and components. -
Page 8: Operation And Adjustment
eye shields. We recommend wide vision safety mask for over spectacles or standard safety glasses. Operation Adjustment Service the engine with gasoline and oil as instructed in the Engine Manual packed with your edger. Read instructions carefully. WARNING Do not lower blade if blade is over concrete, asphalt, rocks or the like. - Page 9 Edging Along A Curb The right, rear wheel of the edger can be lowered into one of five positions to ease the task of edging along a curb. To adjust the height of curb wheel, proceed as follows: 1. Lower the right, rear wheel by moving the curb height adjustment lever slightly to the left.
-
Page 10: Maintaining & Servicing Your Edger
Maintaining & Servicing Your Edger WARNING Disconnect the spark plug wire and ground against the engine before performing any adjustment, repairs or mainte- nance. The edger blade is sharp. Wear leather work gloves to protect your hands when working around the edger blade. - Page 11 Replacing the Drive Belt IMPORTANT: To aid in reassembly, note the orientation of the drive belt on the two idler pulleys and the engine flywheel pulley prior to performing the following steps. Refer to Fig. 6–3. The edger drive belt is subject to wear and should be replaced if any signs of cracking, shredding or rotting are present.
-
Page 12: Off-Season Storage
Off-Season Storage Observe the following when preparing the edger for long-term storage: 1. Clean and lubricate unit thoroughly as instructed maintenance section of this manual. 2. Refer to the Engine Manual packed separately with the edger for engine manufacturers’s storage instructions. 3. -
Page 13: Troubleshooting
Troubleshooting Guide Problem Possible Cause(s) Engine fails to start Dirty air cleaner Engine needs to be primed Fuel tank empty Stale fuel in gasoline tank Spark plug wire disconnected. Spark plug fouled Engine flooded Engine runs erratic Spark plug wire loose Stale fuel in gasoline tank Vent in gas cap plugged Water or dirt in fuel system... -
Page 15: Parts List
787-01081A Cover Plate 787-01239 Dual Wheel Bracket 787-01304 Frame † Optional Part List: Handle/Frame/ Wheel Assembly Model 554 For parts and/or accessories please call 1-866-840-6483, or 1-330-558-7220. www.troybilt.com NOTE: Specifications are subject to change without notification or obligation. Images my not reflect your exact model and are for reference purposes only. - Page 16 MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its posses- sions and territories. “Troy-Bilt” warrants this product against defects in material and workman-...
