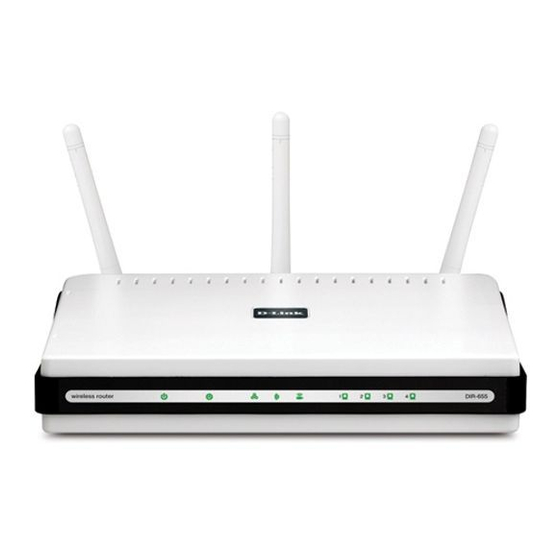

D-Link DIR-655 Quick Start Manual

Hide thumbs Also See for DIR-655:

Download this manual

Step 1: Unplug the Power to your Cable/DSL Internet Modem

Step 2: Connect an Ethernet cable from your computer/laptop to a LAN port (Port 1,2,3 or 4) on the DIR-655

Step 3: Connect your Cable/DSL modem to the Internet Port on the DIR-655

Step 4: Power on both the DIR-655 and your Internet Cable/DSL Modem

Step 5: Open your Internet browser (Internet Explorer/Firefox) and enter

http://192.168.0.1

into the address

bar.

Step 6: You should be prompted with the D-Link Quick Router Setup Wizard, Click Next to Begin.

Page 1 Step 1: Unplug the Power to your Cable/DSL Internet Modem Step 2: Connect an Ethernet cable from your computer/laptop to a LAN port (Port 1,2,3 or 4) on the DIR-655 Step 3: Connect your Cable/DSL modem to the Internet Port on the DIR-655...
Page 2 10 seconds and release. The lights on the front of the router should all flash and reboot.)- Repeat step 5 The DIR-655 will perform a scan to determine the type of internet service you have. If successful, the Internet Setup will be skipped.
Page 3 Enter a password for your router. This password is needed when you want to log into the router configuration setup page. Note: This is not your wireless password Select your Time Zone A summary of your wireless settings is displayed. This includes your wireless network name and your wireless password.
