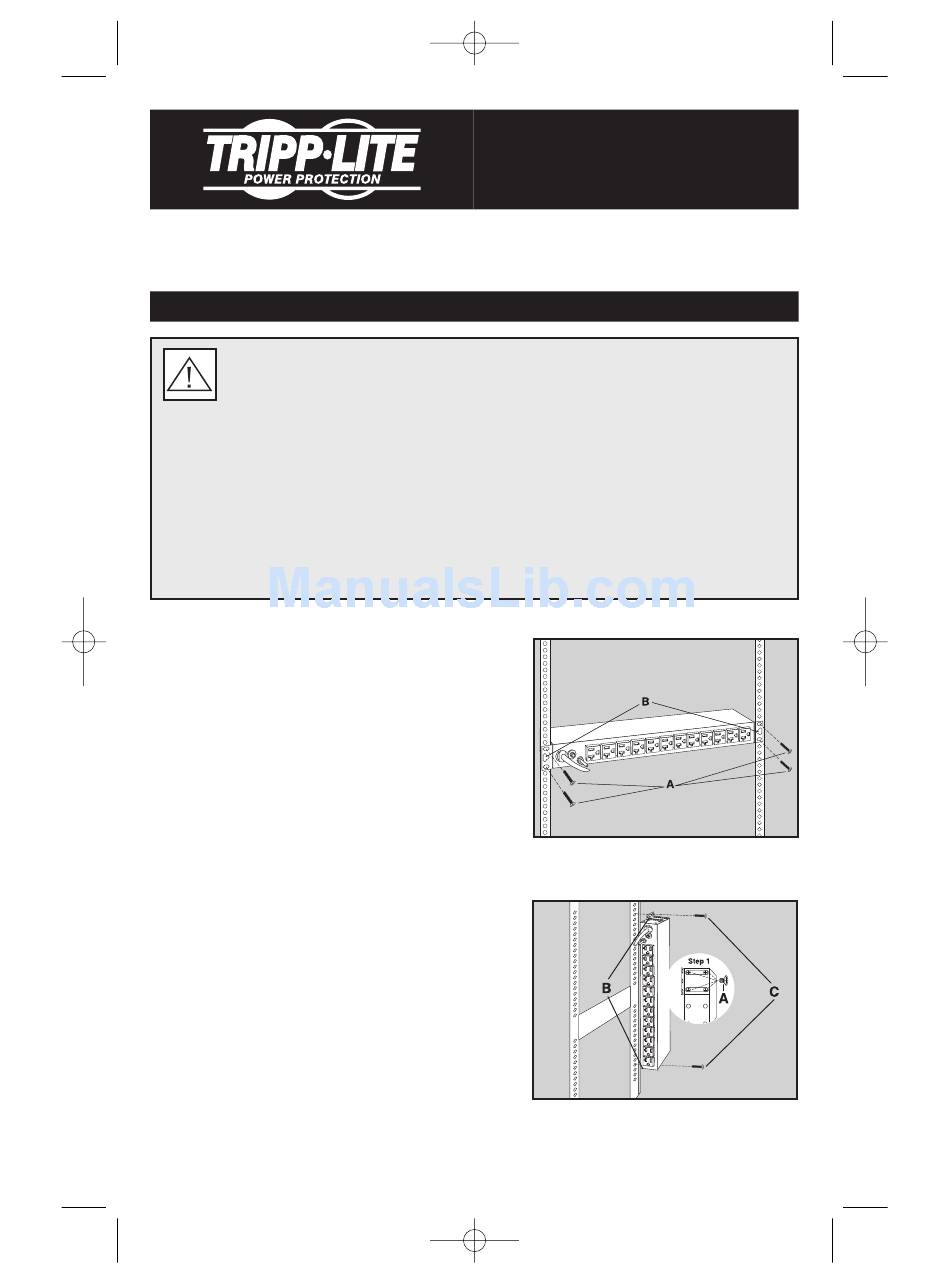

200202028 93-2030 PDU Owner's Manual.qxd
PDU Rackmount Power Strips
IMPORTANT SAFETY INSTRUCTIONS. This manual contains information
concerning the proper installation and use of Tripp Lite's Rackmount Power Strips.
SAVE THESE INSTRUCTIONS.
Do not connect your power strip to an ungrounded outlet. Do not use it with extension cords
or adapters that eliminate its connection to ground. Your power strip is designed for indoor
use only. Install it away from heat emitting devices such as radiators and heat registers. Do
not install where excessive moisture or other conductive contaminants are present. Never
install electrical wiring during a lightning storm.
The power requirement of each device connected to an outlet of your power strip must not
exceed the Outlet Power Rating of your power strip (see Specifications). The total power
requirements of all devices connected to your power strip must not exceed the Maximum
Load Rating of your power strip (see Specifications).
1U Rackmount Installation
To Mount Unit in Rack: Put four user-supplied rackmount
screws (A) through the unit's mounting ears (B) and into the
rack rails as shown. The user must determine the fitness of the
rackmount screws to hold the unit in the rack before
installation.
0U Rackmount Installation
1. Reorient Mounting Ears: Unscrew the screws (A) holding
the unit's mounting ears (B) to the sides of the unit. Use
the screws from Step 1 (A) to reattach the mounting ears
(B) to the unit as shown. Use only the manufacturer-
supplied screws or their equivalent (#6-32, ¼" flat head)
to reattach the mounting ears.
2. Mount Unit on Outside of Rack Rails: Put four user-
supplied screws (C) or similar mounting hardware
through the unit's mounting ears (B) and into the side of
the rack as shown. The user must determine the fitness of
the user-supplied mounting hardware to support the unit
before mounting.
Wallmount/Under Counter Installation
Reorient the unit's mounting ears as per the 0U Rackmount
Installation above, then put four user-supplied screws or
similar mounting hardware through the unit's mounting ears
and into the mounting surface. The user must determine the
fitness of the user-supplied mounting hardware to support
the unit before mounting.
4/29/02
Owner's Manual
Designed for Mounting in 19 in. Racks
Español: p. 3 • Français: p. 5
4:04 PM
Page 1
1U Rackmount Installation
0U Rackmount Installation
