Tripp Lite UPSWM Mounting Instructions

Collapsible
Wallmount Bracket
Model: UPSWM
Not suitable for mobile applications.
C
B
Wallmount
Instructions:

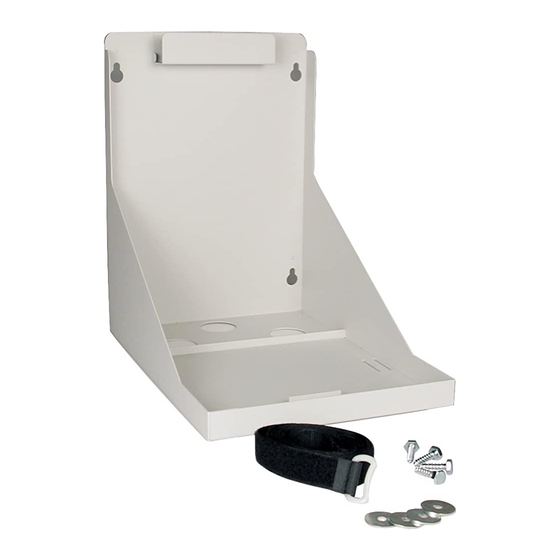

The UPSWM is shipped in its
collapsible position and includes
two mounting braces. Open
the mounting bracket, hold the
bracket level against the intended
mounting surface and mark the
locations of the mounting holes
A . Drill 1/8" guide holes in these
locations. Place the included
washers around the included
screws, then drive the screws
through the mounting holes and
into the guide holes. Install the
mounting braces by putting the
B
two buttons on each brace
through the holes on the side of
C
the unit .
CAUTION: The hardware
(screws and washers) included
with the bracket is only intended
for use with plywood surfaces.
To mount your bracket on a
different surface, you must
determine a safe mounting
procedure and obtain proper
hardware.
Copyright © 2007. All rights reserved. The policy of Tripp Lite is one of continuous improvement. Specifi cations are subject to change without notice.

Mounting Instructions

A
C
A
D
C
Mounting a
UPS System or
Battery Pack:
CAUTION: Before mounting a
UPS, make sure the UPS is OFF
and unplugged. Before mounting
a BP36V27 battery pack, make
sure that the battery pack is
disconnected from your UPS
system. The UPS or battery pack
is extremely heavy. Take care to
avoid injury while lifting.
Place the UPS or battery pack
in the mounting tray. The feet of
a UPS should press against the
rear ridge D
center ridge
the UPS presses against the front
F
ridge . The base of a battery
pack should fi t between the rear
D
and center
cords facing the wall.
B
C
F
E
and fi t around the
E
while the front of
E
ridges, with its
1111 W. 35th Street
Chicago, IL 60609 USA
Customer Support: (773) 869-1234
www.tripplite.com
G
Next, pass the safety strap
around the UPS or battery pack
and through the mounting tray as
shown. The safety strap should
pass through the tray's outer
strap holes for a UPS or through
the tray's inner strap holes for a
battery pack. Fully tighten the
safety strap and fasten the velcro
end.
Mounting an
SNMP Solo (optional):
Affi x one of the self-adhesive
velcro pads included in the
bottom of the bracket's SNMP
G
slot . Affi x the other pad to
the long side of the SMMP-Solo
opposite its indicator lights.
Press the velcro-covered side
of the SNMP-Solo into the
bracket's SNMP slot.
