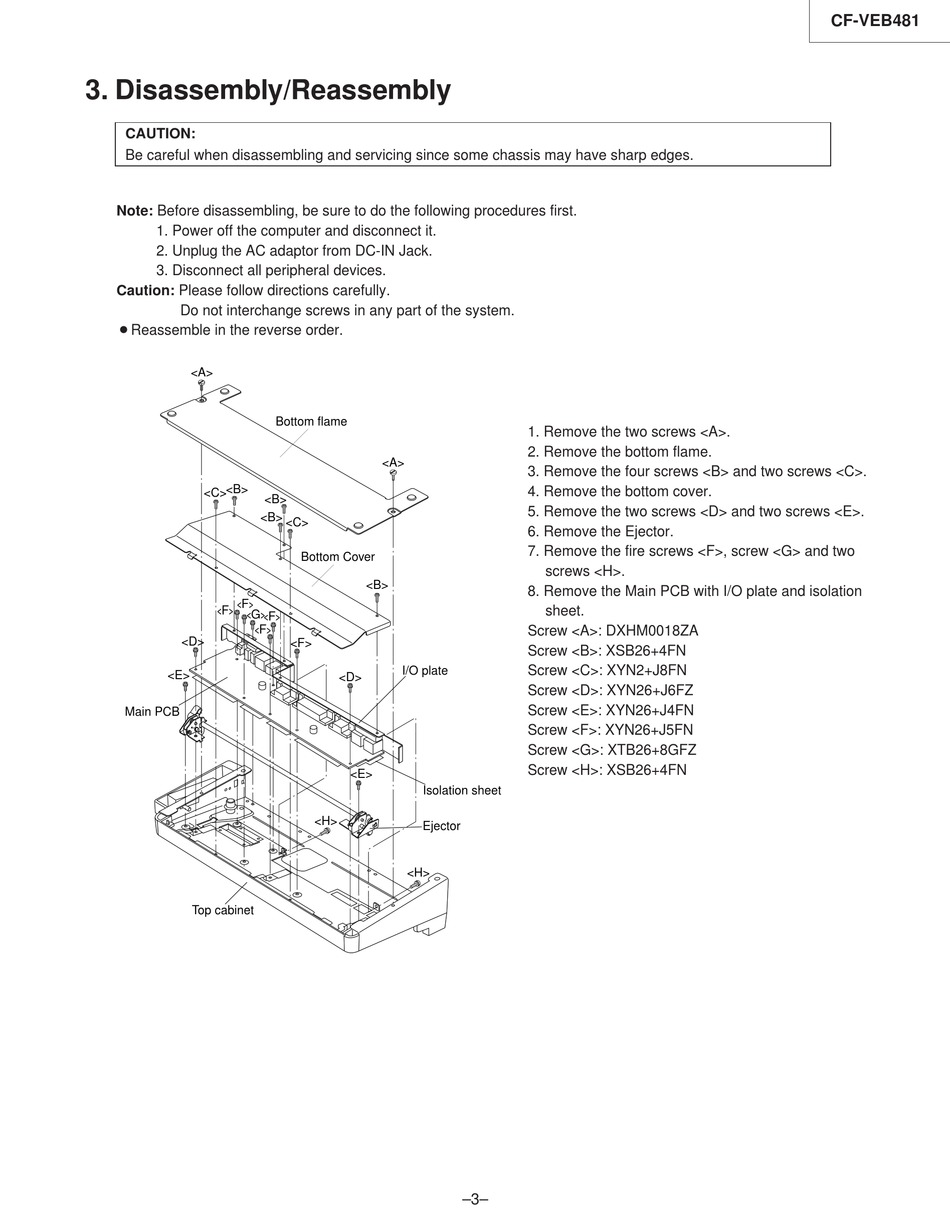

3. Disassembly/Reassembly
CAUTION:
Be careful when disassembling and servicing since some chassis may have sharp edges.
Note: Before disassembling, be sure to do the following procedures first.
1. Power off the computer and disconnect it.
2. Unplug the AC adaptor from DC-IN Jack.
3. Disconnect all peripheral devices.
Caution: Please follow directions carefully.
Do not interchange screws in any part of the system.
BReassemble in the reverse order.
<A>
<C> <B>
<B>
<B> <C>
<F>
<F>
<G>
<F>
<F>
<D>
<E>
Main PCB
Top cabinet
Bottom flame
<A>
Bottom Cover
<B>
<F>
I/O plate
<D>
<E>
Isolation sheet
<H>
Ejector
<H>
1. Remove the two screws <A>.
2. Remove the bottom flame.
3. Remove the four screws <B> and two screws <C>.
4. Remove the bottom cover.
5. Remove the two screws <D> and two screws <E>.
6. Remove the Ejector.
7. Remove the fire screws <F>, screw <G> and two
screws <H>.
8. Remove the Main PCB with I/O plate and isolation
sheet.
Screw <A>: DXHM0018ZA
Screw <B>: XSB26+4FN
Screw <C>: XYN2+J8FN
Screw <D>: XYN26+J6FZ
Screw <E>: XYN26+J4FN
Screw <F>: XYN26+J5FN
Screw <G>: XTB26+8GFZ
Screw <H>: XSB26+4FN
–3–
CF-VEB481
