Summary of Contents for BRUSTOR B-128

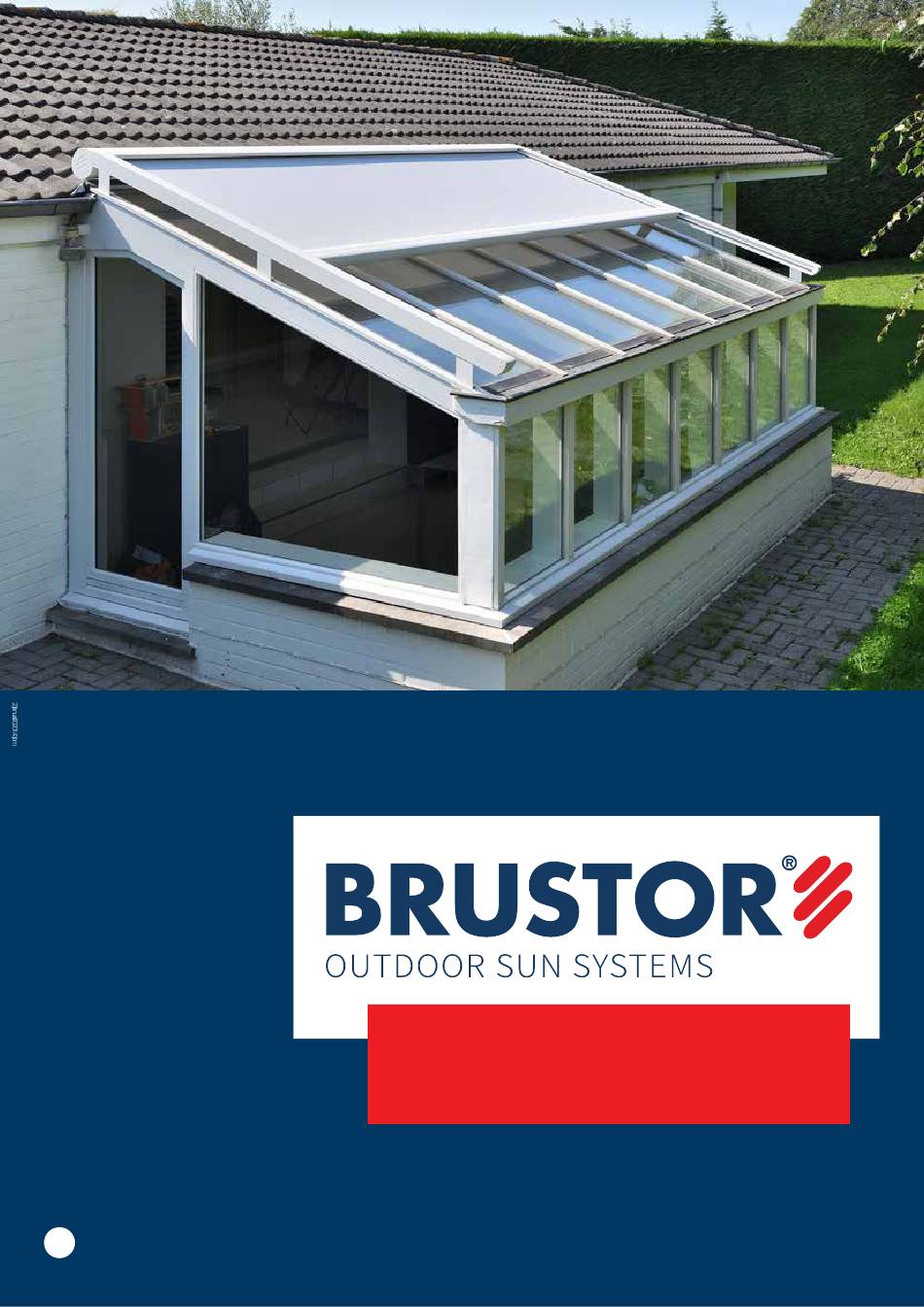

- Page 1 Mounting instructions B-128 Conservatory awning...
- Page 2 B-128 Conservatory awning Mounting instructions Table of contents Contents 1. Placing the screen housing 2. Placing the guides 3. Tensioning the canvas 4. Motor adjustment 5. Assembly support beam Montage Handleiding...
- Page 3 V2017 B-128 Conservatory awning Mounting instructions Inhoud › Check that all parts are present and/or the dimensions correspond to the order. Side guide Screen housing support beam Double guide support Guide support › Multiple types of supports possible: Guide support...
- Page 4 B-128 Conservatory awning Mounting instructions V2017 2. Plaatsen van de geleiders › First remove the covers of the guides (socket-head 3 mm) and of the housing. › ! If a support beam is also placed, extra fastening plates must be slid into the guide. (1x left 1x right) Make sure that the guide plates are in the correct place, before and/or behind the guide support.
- Page 5 V2017 B-128 Conservatory awning Mounting instructions › Slide the guides upwards over the fastening plates of the guide supports. › Slide the zipper in the PVC rail and place the guide wheels in the guide. › Slide the side guides on the side plates of the screen housing.
- Page 6 B-128 Conservatory awning Mounting instructions V2017 3. Tensioning the canvas › Remove the cover of the front louvre. › The belt comes horizontally out of the housing. Bring the belt forwards and insert it vertically along the wheel in the end cap of the guide.
- Page 7 V2017 B-128 Conservatory awning Mounting instructions 4. Motor adjustment › Follow the Somfy manual for the adjustment of the motor. › Motor Somfy Orea RTS: ADJUSTMENT OREA RTS MOTOR ADJUSTMENT OREA RTS MOTOR Open the tent Take control over the motor...
- Page 8 B-128 Conservatory awning Mounting instructions V2017 5. Assembly support beam › A support beam can be placed as canvas support. › Fasten the end plates of the support beam to a fastening plate in the guide with the bolt DIN6912 M8x16.
