Overview

Design and function

2
1
8

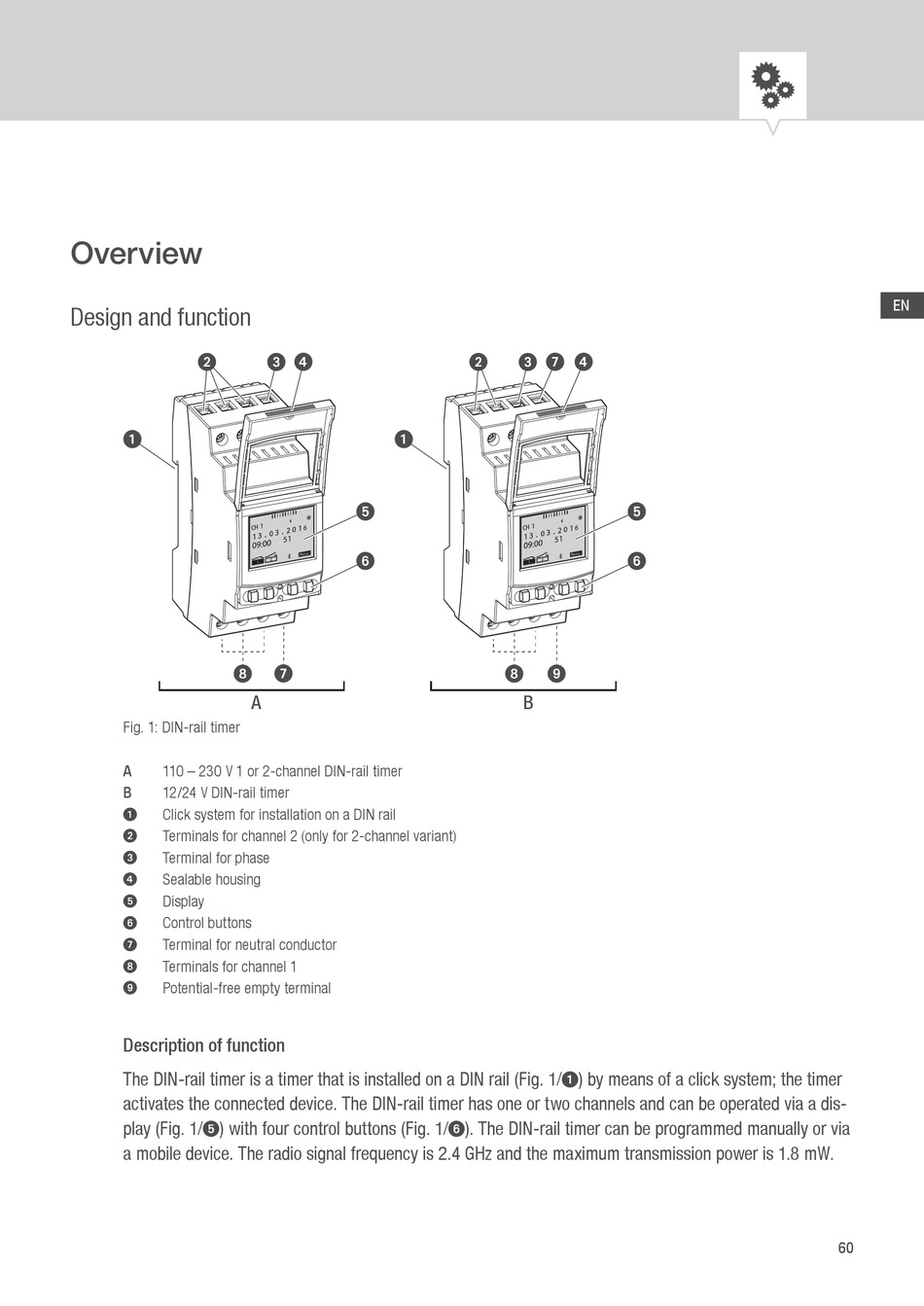

Fig. 1: DIN-rail timer
A 110 – 230 V 1 or 2-channel DIN-rail timer
B
12/24 V DIN-rail timer
Click system for installation on a DIN rail
1
Terminals for channel 2 (only for 2-channel variant)
2
Terminal for phase
3
Sealable housing
4
Display
5
Control buttons
6
Terminal for neutral conductor
7
Terminals for channel 1
8
Potential-free empty terminal
9
Description of function
The DIN-rail timer is a timer that is installed on a DIN rail (Fig. 1/
activates the connected device. The DIN-rail timer has one or two channels and can be operated via a dis-
play (Fig. 1/ ) with four control buttons (Fig. 1/
5
a mobile device. The radio signal frequency is 2.4 GHz and the maximum transmission power is 1.8 mW.
3 4
1
5
6
7
A
2 3 7 4
8 9
B
) by means of a click system; the timer
1
). The DIN-rail timer can be programmed manually or via
6
5
6
