Summary of Contents for Echelon ROW

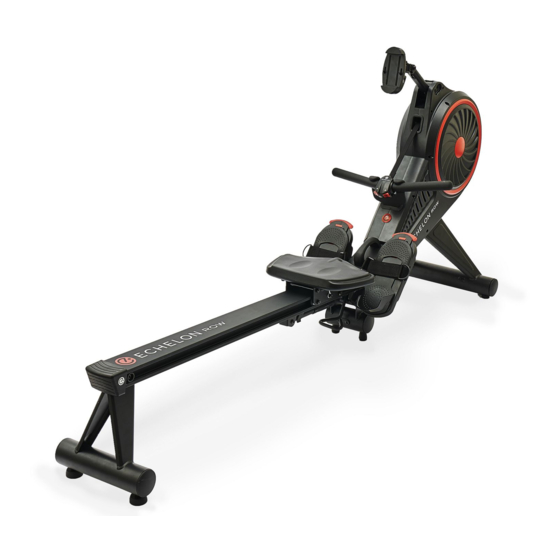

- Page 1 R OW I N S T R U C T I O N M A N U A L...
- Page 3 Hello, I am Lou Lentine, President of Echelon, and I would like to welcome you to the Echelon community. You’ve made a great decision for yourself and your family. The Echelon Experience is an innovative combination of fitness products integrated with our state-of-the-art Echelon Fit App. This brand-new, fitness lifestyle connects your family, friends, the Echelon community, and Echelon instructors together to help you with your fitness goals.
- Page 4 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT 15.21 YOU ARE CAUTIONED THAT CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 15.105(B) THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
- Page 5 INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA (ISED) INNOVATION, SCIENCE ET DÉVELOPPEMENT ÉCONOMIQUE CANADA (ISED) THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003 CET APPAREIL NUMÉRIQUE DE CLASSE B EST CONFORME À LA NORME NMB-003. CANADIAN NOTICE THIS DEVICE COMPLIES WITH ISED LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED...
-
Page 6: Important Safety Instructions
POSITION AND BRING THE MACHINE TO A COMPLETE STOP. THE MANUFACTURER RECOMMENDS TO PLACE THE ECHELON® CONNECT BIKE IN A SPACE WHERE YOU HAVE TWO FEET OF CLEARANCE ON ALL SIDES OF THE BIKE FOR SAFE MOUNTING AND DISMOUNTING OF THE EXERCISE BIKE. - Page 7 WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons. 1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts. 2.
- Page 8 · Have you been told by a doctor that you should NOT exercise? IF YOU ANSWER “YES” TO ANY OF THE ABOVE QUESTIONS, YOU SHOULD SEEK FURTHER ADVICE FROM YOUR DOCTOR PRIOR TO USING THE ECHELON® CONNECT. Read the user manual fully and follow all instructions. This ensures your safety.
- Page 9 • NEVER use the bike if it is not properly/completely assembled or is damaged in any way. • NEVER exceed the weight limit for this bike. The weight limit for this bike is 300 pounds. Do not use the Echelon ®...
- Page 10 Connect is wiped down after each use to keep it sanitary. ® • Cleaning and user maintenance shall not be made by children without supervision. If any problems arise affecting the performance of the Echelon Connect, contact the manufacturer immediately. Always ®...
- Page 11 INCLUDES 1. Echelon ® Row Base 2. Echelon ® Row Rail 3. Rear Foot 4. Front Foot 5. 10 Big Screws 6. 8 Small Screws 7. Hex Key 8. Left Foot Carriage 9. Right Foot Carriage 10. Seat...
-
Page 12: Account Creation
This will be the same login for the App. DOWNLOAD THE ECHELON FIT APP Ensure latest version of the Echelon Fit™ App is installed from the Google Play Store or the App Store. OPERATIONAL INSTRUCTIONS Connect to the Echelon Fit app to access tutorials and operation instructions. - Page 13 1. Place the front foot and hand 4. Set rower upright and adjust 2. Tighten the screws with hex key. tighten screws into place. the arm of phone holder to your desired level. 5. Place seat on ground and lay 6.
- Page 14 ANGLE AWAY FROM ROW 8. Place the four screws into rail 9. Tighten screws with hex key. 10. Align front foot with screw and hand tighten. holes on the rail and hand tighten screws into the foot. 11. Tighten screws with hex key.
- Page 15 14. Connect the power cord. 15. Toggle the power switch, as 16. Route the power cable shown above. through the cable routing clips legs, as shown above. 17. To lower the rail, press down 18. To lock into place, pull up on the foot pedal at the joint and this handle until you hear a lower the rail gently to the...
- Page 16 Flip over the handle and place While keeping thumb on cover, Pull on battery activation strip. into the handle cradle. remove battery cover with a small flat-head screwdriver. Slightly press down on battery to Replace the battery cover. Flip handle back over and place make sure it is seated properly.
- Page 18 To turn up the resistance, press To turn down the resistance, press To adjust footrest, push down on the right toggle. the left toggle. the red locking mechanism on the footrest. While holding red locking mechanism, pull up or push down the black sliding adjustment.
