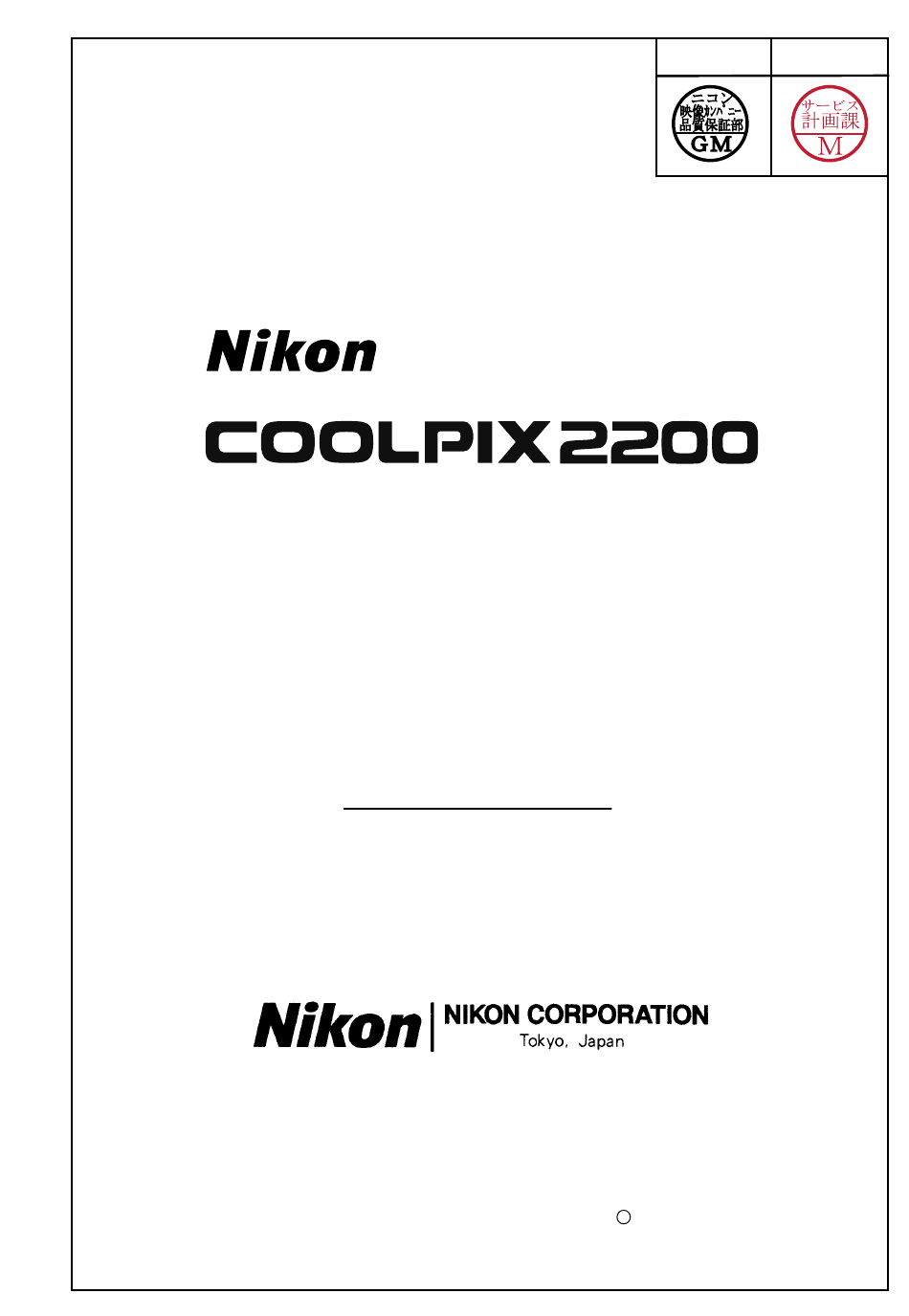

VAA23001-R.3626.A

作成承認印配布許可印

VAA23001

REPAIR MANUAL

Printed in Japan February 2004

Table of Contents

Summary of Contents for Nikon COOLPIX 2200

Page 2 VAA23001-R.3626.A CONTENTS SPECIFICATIONS ･･･････････････････････････････････････････････････････････････････Ｍ１－Ｍ２ DISASSEMBLING WARNING ･･･････････････････････････････････････････････････････････････････････････Ｄ 1 REAR COVER･･･････････････････････････････････････････････････････････････････Ｄ 2 －Ｄ３ FRONT COVER ･･･････････････････････････････････････････････････････････････････････Ｄ４ DISCHARGE MAIN CONDENSER ･･･････････････････････････････････････････････････････Ｄ５ BATTERY COVER/BATTERY TERMINAL ･････････････････････････････････････････････････Ｄ５ BATTERY HOLDER/BATTERY TERMINAL/CONTROL RELEASE ････････････････････････････Ｄ５ LCD / HOLDER MONITOR / SPRING PLATE A / HOLDER MICROPHONE / HOLDER FLASH ･････Ｄ６ CP1-PCB / TB1-PCB / CCD ･･････････････････････････････････････････････････････････････...
Page 3 VAA23001-R.3626.A ELECTRICITY OVERALL WIRING ････････････････････････････････････････････････････････････････････Ｅ８ OVERALL BLOCK DIAGRAM ･･････････････････････････････････････････････････････････････････Ｅ９ ASIC BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････Ｅ１０ CCD BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････Ｅ１１ LENS DRIVE BLOCK DIAGRAM ･･････････････････････････････････････････････････････Ｅ１２ POWER BLOCK DIAGRAM･････････････････････････････････････････････････････････････Ｅ１３ SYSTEM BLOCK DIAGRAM ････････････････････････････････････････････････････････････Ｅ１４ PWA CIRCUIT DIAGRAM (STROBE CIRCUIT DIAGRAM) ･･････････････････････････････････Ｅ１５ FUSE configuration (CP1 PCB) ･････････････････････････････････････････････････････････...
Page 4: Specifications
VAA23001-R.3626.A SPECIFICATIONS Type E2200 digital camera Effective pixels 2.0 mega-pixels 1/3.2-inch high-density CCD; total pixels: 2.14 mega-pixels Image size (pixels) 1600×1200, 1024×768 and 640×480 Lens 3×Zoom Nikkor f = 4.7 to 14.1mm (36 ~ 108mm by conversion with 35mm-format) F2.6 ~ F4.7 Digital zoom Max.
Page 5 VAA23001-R.3626.A Interface USB 2.0 Video output User can choose from NTSC and PAL I/O terminals DC input terminal, Video output terminal which is also used as USB terminal Power sources Rechargeable battery EN-MH1 (nickel hydrogen battery: accessory) 2 pcs., lithium battery CR-V3 (available separately): 1 pc., AA nickel manganese battery (on the market): 2 pcs.
Page 6 VAA23001-R.3626.A Disassembly �� Points to notice for Lead-free solder products ・Lead-free solder is used for this product. ・For soldering work, the special solder and soldering iron are required. ・Do NOT mix up lead-free solder with traditional solder. ・Use the special soldering iron respectively for lead-free solder and lead solder.
Page 7 VAA23001-R.3626.A Rear cover ・ Open the cover ( ① ). ・ Take out 2 screws ( ② : M1.7×5). ・ Take out 2 screws ( ③ : M1.7×4.5). ・ Take out 2 screws ( ④ : M1.7×4). ・ Uncover the bottom of the rear cover from card-lid side, and unhook the rear cover while pressing its upper part.
Page 8 VAA23001-R.3626.A Push. Rear cover Bottom card cover (Fig 1) ⑤ (Fig 2) - D3 ･ E2200 -...
Page 9 VAA23001-R.3626.A Front cover ・ Remove the lead wire (black: ① ) and lead wire (red: ② ). ・ Remove the FPC ( ③ ). ・ Take out 3 screws ( ④ : M1.7×4). ・ Remove the front cover by pulling it forwards. ・...
Page 10 VAA23001-R.3626.A Discharge Main condenser �� 2KΩ/5W Main condenser Battery cover / Battery terminal ・ Take out 2 screws ( ① : M1.7×2.5), and remove the battery terminal C ( ② ). ・ The battery cap ( ③ ), battery terminal D ( ④ ) and battery knob ( ⑤ ) come off. ・...
Page 11 VAA23001-R.3626.A ・ Remove the FPC ( ① ). ・ Remove the lead wires (white: ② and red: ③ ). (Fig. 1) ・ Remove the LCD. Note) Handle the stopper of the FPC ( ① ) with care because it is fragile. Holder monitor ・...
Page 12 VAA23001-R.3626.A CP1-PCB / TB1-PCB / CCD ・ Take out the screw ( ① : M1.7×3). ・ Remove the FPC ( ② ). ・ Take out 2 screws ( ③ : M1.7×6). ・ The lens assembly comes off. ・ The spacer ( ④ ), LPF ( ⑤ ) and spacer ( ⑥ ) come off. ・...
Page 13: Finder Unit
VAA23001-R.3626.A Finder unit ① Finder unit Lens-barrel ・ Take out 2 screws ( ① ). ・ Remove the finder unit by lifting it in the direction indicated by the arrow. - D8 ･ E2200 -...
Page 14 VAA23001-R.3626.A Separate Lens-barrel ② ① ② Shutter FPC ・ Remove the solder of the shutter FPC and take out the screw ( ① ). ・ Take out 4 screws ( ② ). Lens-barrel Finder gear A Finder gear B ・ Detach the lens barrel by moving it slowly in the direction indicated by the arrow. 　...
Page 15 VAA23001-R.3626.A Shutter Turning tube ・ Rotate the turning tube in the direction indicated by the arrow, to extend the lens-barrel to the maximum. Barrier joint plate ② ① Ａ Barrier joint plate ＡＡ【 Side view 】・ Remove the barrier joint plate by pulling it in the direction of A. - D10 ･...
Page 16 VAA23001-R.3626.A ・ Rotate the turning tube to the full up position, to reduce the lens-barrel size. ・ Remove the shutter unit by lifting it in the direction of the arrow. ① 2nd lens frame Shutter ・ Take out 2 screws ( ① ) to separate the 2nd lens frame from the shutter. - D11 ･...
Page 17: Straight Tube
VAA23001-R.3626.A Straight tube (1st lens frame) / key tube Turning tube unit Lens-barrel cover Straight tube (1st lens frame ） Key tube Turning tube ・ Remove the turning tube unit from the lens-barrel cover. ・ Remove the straight tube (1st lens frame) by pulling it backwards. ・...
Page 18 VAA23001-R.3626.A 3rd lens unit / Zoom motor unit 3rd lens spring Focus motor 3rd lens unit Turning stopper ① Zoom gear D Zoom gear C Zoom motor Worm gear ② ① Motor base 1) Zoom motor unit ・ Take out 2 screws ( ① ). ・...
Page 19 VAA23001-R.3626.A Assembly 3rd lens unit Focus motor CCD base 3rd lens spring 3rd lens unit Turning stopper ・ While turning the focus motor shaft clockwise with a flathead screwdriver, assemble the 3rd lens unit and the turning stopper into the CCD base. ・...
Page 20 VAA23001-R.3626.A Zoom motor unit CCD base ② Zoom gear D Zoom gear C Zoom motor Worm gear ① ② Motor base ・ Attach the zoom motor on the motor base, and tighten 2 screws ( ① ). ・ Assemble the worm gear, zoom gear C and zoom gear D into the CCD base. ・...
Page 21 VAA23001-R.3626.A Barrier unit Barrier ring Straight tube (1st lens frame) Spring Barrier Name plate ・ Attach the barrier ring to the straight tube (1st lens frame), and hook the spring. ・ Attach the barrier by turning it slightly in the direction indicated by the arrow. ・...
Page 22 VAA23001-R.3626.A Straight tube (1st lens frame) / key tube Turning tube Light-shielding ring Key tube ・ Assemble the light-shielding ring and key tube into the turning tube by following the above direction of the arrow. Straight tube (1st lens frame) Key tube ・...
Page 23 VAA23001-R.3626.A Shutter ① 2nd lens frame Shutter ・ Assemble the shutter and 2nd lens frame with 2 screws ( ① ). Shutter unit Lens-barrel cover ・ Assemble the shutter unit into the turning tube by following the above direction of the arrow. - A5 ･...
Page 24 VAA23001-R.3626.A Turning tube ・ Rotate the turning tube in the direction indicated by the arrow, to extend the lens-barrel to the maximum. Barrier joint plate ② ① Ａ Barrier joint plate ＡＡ【 Side view 】・ Attach the barrier joint plate by pressing slightly in the direction of A arrow. - A6 ･...
Page 25 VAA23001-R.3626.A Assemble Lens-barrel / CCD base CCD base Gear shaft Adhesive: Lens-barrel Cemedine 575 　　 J67017 Finder gear A Finder gear B ・ Attach the gear shaft to the CCD base. ・ Apply the cemedine 575 on the tip of the gear shaft from the backside of the CCD base. ・...
Page 26 VAA23001-R.3626.A CCD base FPC ① ② ① Shutter FPC ・ Tighten 4 screws ( ① ). ・ Tighten the screw ( ② ) and solder the shutter FPC on the FPC of the CCD base. Finder unit ① Finder unit Lens-barrel ・...
Page 27 VAA23001-R.3626.A CCD / TB1-PCB / CP1-PCB ・ Arrange the shield tape ( ① ), spacer ( ② ), and lens mount ( ③ ). Assemble the CCD ( ④ ) and solder the CP1-PCB. ・ Solder the lead wires (gray: ⑤ and white: ⑥ ). ・...
Page 28 VAA23001-R.3626.A Holder flash ・ Solder the lead wires (red: ① , gray: ② , and black: ③ ). (Fig. 1) ・ Place the lead wires in position as shown below. Attach the holder flash and tighten the screw ( ④ :M1.7×4). (Fig.
Page 29 VAA23001-R.3626.A Arrange wires of Holder flash ② ① （Fig 2） Arrange wires of Holder microphone （Fig 3） - A11 ･ E2200 -...
Page 30 VAA23001-R.3626.A Arrange LCD wires ⑫ ⑪ （Fig 5） - A12 ･ E2200 -...
Page 31 VAA23001-R.3626.A Battery cover ・ Mount the battery cover knob ( ① ), battery terminal D ( ② ), battery cap ( ③ ) and battery terminal C ( ④ ) on the battery cover, and tighten 2 screws ( ⑤ : M1.7×2.5). ・...
Page 32 VAA23001-R.3626.A ⑩ ⑫ （Fig 1） Arrange lead wires (red: ⑩ and black: ⑫ ) （Fig 2） - A14 ･ E2200 -...
Page 33 VAA23001-R.3626.A ④ ③ - A15 ･ E2200 -...
Page 34 VAA23001-R.3626.A Rear cover ・ Connect the FPC ( ① ). ・ Attach the rear cover. Rear cover ・ Tighten 3 screws ( ② :M1.7×4). ・ Tighten 2 screws ( ③ :M1.7×4.5). ・ Tighten 2 screws ( ④ :M1.7×5). ① black ②...
Page 35 VAA23001-R.3626.A ADJUSTMENT 1. Equipment IBM compatible PC/AT • AC adapter EH-62B • USB cable ( UC-E6) 　　 2. Servicing tools Pattern box • • Color meter • Luminance meter • Siemens star chart • Calibration software (J65057) 　　 •Adjustment collimator (J63090) or Adjustment firmware 　　...
Page 36: Installing Usb Driver
VAA23001-R.3626.A 5. Installing USB driver If the USB driver is necessary, install Nikon View via CD-ROM packed with the camera. 6. Pattern box Before using the pattern box, turn its power on to carry out "Aging" approx. 30 minutes: the color temperature should be 3100 ±...
Page 37: Optical Filter
VAA23001-R.3626.A 7. Adjustments required when parts are replaced Lens Adj. AWB CCD Defects Lens Unit ○ ○ ○ × Optical filter ○ ○ ○ × ○ ○ ○ × CP-1 ○ ○ ○ ○ ○ Adjustment is necessary. × Adjustment is not necessary. 8.
Page 38: Calibration Software
VAA23001-R.3626.A 9. Calibration software When the calibration software starts, the following is displayed on the PC monitor. - A20 ･ E2200 -...
Page 39: Lens Adjustment
VAA23001-R.3626.A 10. Lens adjustment ※ For the lens adjustment, choose either the infinity adjustment with the collimator or the 1.5-m adjustment with the adjustment firmware. (However, in case of 1.5-m adjustment, the focus may not be sharp at infinity.) 10-1. Infinity adjustment [Preparations] •...
Page 40 VAA23001-R.3626.A 10-2. 1.5-m Adjustment ※ For 1.5-m adjustment, it is necessary to (re)write the adjustment firmware, so before the adjustment, be sure to (re)write the firmware. Also, after completing the adjustment, do NOT forget to restore the original product firmware. Procedure for setting Adjustment firmware 1) Save the adjustment firmware and the product firmware in any folder.
Page 41 VAA23001-R.3626.A 11. AWB adjustment [Preparations] 　• Pattern Box（Color temperature: 3100±20K, Luminance: 900±20cd/m ） [Conditions] • Set the pattern box and camera (lens front) at "0cm" distance between them. Note) Do not allow outside light to enter in. [How to] • Double-click on "DscCalDi130c". •...
Page 42 VAA23001-R.3626.A 12. CCD white dot defect compensation [Conditions] • With the lens shutter being closed, read the defect of CCD pixels. Then, make the correction data and rewrite the data by the following procedure. Correct the upper level of defective 512 pixels from the brightest number of CCD pixels.. [How to] •...
Page 43: Usb Storage Information Registration
• Double-click on the "DscCalDi130c". • Click on the "Get" button in the USB storage window and check the USB storage data. VID: NIKON PID: NIKON DSC E3200 Serial: Rev. : 1.00 • Check the “Serial” in the above USB storage data. If the displayed value is different from the serial number printed on the base of the camera, enter the number on the base of the camera, and click the "Set"...
Page 44 VAA23001-R.3626.A 1. OUTLINE OF CIRCUIT DESCRIPTION 1-1. CP1 CIRCUIT DESCRIPTION 1. IC Configuration IC903 (RJ24N3AA3DT) CCD imager IC904 (LR366854) V driver IC905 H driver, CDS, AGC and A/D converter 2. IC903 (CCD imager) [Structure] Interline type CCD image sensor Image size Diagonal 5.62 mm (1/3.2 type) (Note) Pixels in total...
Page 45 VAA23001-R.3626.A 3. IC904 (V Driver) 5. Lens drive block V driver is necessary in order to generate the clocks 5-1. Focus drive (vertical transfer clock, horizontal transfer clock and The four control signals (FIN1, FIN2, FIN3 and FIN4) electronic shutter clock) which driver the CCD. with different phases which are output from the ASIC IC904 is V driver.
Page 46: Sdram Controller
VAA23001-R.3626.A 6. Circuit Description 6-1. Digital clamp 7. Outline of Operation The optical black section of the CCD extracts averaged When the shutter opens, the reset signals and the serial values from the subsequent data to make the black level signals (“take a picture”...
Page 47 VAA23001-R.3626.A 1-2. PWA POWER CIRCUIT DESCRIPTION 1. Outline 3. Analog System Power Output This is the main power circuit, and is comprised of the 15.5 V (A), 3.45 V (A) and -8.0 V (A) are output. Feed- following blocks. back for the 15.5 V (A) is provided to the switching Switching controller (IC501) controller (Pins (53) of IC501) so that PWM control can Digital and analog system power output (T5001, Q5001,...
Page 48 VAA23001-R.3626.A 1-3. SYA CIRCUIT DESCRIPTION 1. Configuration and Functions For the overall configuration of the SYA block diagram, refer to the block diagram. The SYA block centers around a 8-bit microprocessor (IC301), and controls camera system condition (mode). The 8-bit microprocessor handles the following functions. 1.
Page 49 VAA23001-R.3626.A ZM IN 2 Zoom motor drive signal 2 ZM IN 1 Zoom motor drive signal 1 AVREF ON AD VREF ON/OFF signal SELF LED SELF LED (H = Lighting) ASIC TEST ASIC control signal (ZTEST) PLLEN PLL oscillation ON/OFF 52~56 SCAN IN4~0 Keymatrix input...
Page 50: Power Supply Control
VAA23001-R.3626.A 3. Key Operaiton For details of the key operation, refer to the instruction manual. SCAN IN SCAN OUT PW_TEST AUTO SCENE PORTRAIT LANDSCAPE MOVIE SET UP NIGHT SCENE SPORTS ← → ↑ ↓ PLAY WIDE TELE MENU PW_ON TEST AV JACK Table 3-2.
Page 51: Lcd Panel
VAA23001-R.3626.A 総合結線図 OVERALL WIRING LCD PANEL (WHIT) CL320 LED_AN JW601 LED_AN CL321 LED_CA JW602 LED_CA (GRAY) 1AV4J11B5670G CN110 & USB_VDD JW501 BAT+ (RED) USB D(-) VIDEO TO BATTERY USB D(+) JW502 BAT-(BLACK) ZAV_JACK VIDEO_OUT W1400 XAN (RED) FLASH W1600 TRG (GRAY) REFLECTOR 1AV4J11RV190G (DMA)
Page 52 VAA23001-R.3626.A 総合ブロック図 OVERALL BLOCK DIAGRAM CCD BLOCK CDS/AGC/AD-C V Driver LENS BLOCK IIN1,2 H Driver 3M Pixel LENS IC904 SIN1,2 IC951 IC905 IC903 FIN(1:4) LENS DRIVER IC106 D-FF IC121 CN301 MRST EEPROM RELEASE UNIT FD(0:7) ZTEST 128Mbit PLLEN D(0:15) Flash 16Mbit A(1:20) CN302...
Page 53 VAA23001-R.3626.A ASIC ブロック図 ASIC BLOCK DIAGRAM SDRAM IC101 ASIC SDRAM DIGITAL CONTROLLER CLAMP BLOCK SIGNAL PROCESSOR SRAM SRAM JPEG AF,AE,AWB CONTROLLER UART COMPOSITE VIDEO NTSC/PAL SRAM ENCODER CONNECTOR DIGITAL 6bit DATA SD CARD IC301 36MHz MICRO BUS I/F DRIVER CLKGEN PROCESSOR 98MHz 4fsc...
Page 54: Ccd Block Diagram
VAA23001-R.3626.A CCD ブロック図 CCD BLOCK DIAGRAM - E11 ･ E2200 -...
Page 55 VAA23001-R.3626.A レンズ駆動ブロック図 LENS DRIVE BLOCK DIAGRAM SW REG. UNREG IC955 BOOST4.4V Q9551 UNIT LENS L9551 D9551 C9554 CN951 Q9509 VDD3 PI_VCC ZPLUSE1 PICTRL (IC301 23pin) ZPLUSE2 ZPULSE1 (IC301 16pin) Q9502 ZPULSE2 (IC301 59pin) ZRESET ZRESET (IC301 58pin) Q9501 FPIOUT (IC101 231pin) IC951 LB8649W ZOOM_DC1...
Page 56: Power Block Diagram
VAA23001-R.3626.A POWER ブロック図 POWER BLOCK DIAGRAM - E13 ･ E2200 -...
Page 57 VAA23001-R.3626.A SYSTEM ブロック図 SYSTEM BLOCK DIAGRAM UNREG BOOST4.4V Boost4.4V TO DMA(MAIN) ALWAYS3.2V 6 32 PAON2 TO PWA PAON2 IC302 BLON BATTERY BL_ON Q3002 BACKUP P ON RESET P ON PA ON PA_ON BAT OFF CHG ON VMONIT VMONIT LCD ON BATTERY TO DMA (MAIN) LCD ON...
Page 58 VAA23001-R.3626.A PWA 回路図 ( ストロボ回路図 ) PWA CIRCUIT DIAGRAM (STROBE CIRCUIT DIAGRAM) FLASH REFLECTOR 1AV4L17B0200G T5401 D5403 D5402 W1400 �� RR264M-400 F1P8 T5402 OM/ORDD30HVZ 1AV4L17B0160N C5410 W1600 GRAY 0.047;350H R5414 2125 1K;1/16J C5411 C5403 R5406 0.22;16B 270;1/16J 0.01;630H Q5407 3LN01S D5405 R5408 S6A37...
Page 59 VAA23001-R.3626.A FUSE 配置図（CP1 基板） FUSE configuration (CP1 PCB) レンズ側実装面ﾋｭｰｽﾞ仕様（RPNO.) Populated surface of Lens Fuse specifications F5004 F5001 F5001 ～ F5004 F5003 2.0A　32V （423-031-1707）ＬＣＤ側実装面 Populated surface of LCD F5002 - E16 ･ E2200 -...
Page 60 VAA23001-R.3626.A The contents of inspection standards and tools for E2200 [1] Inspection standards ..........................R1 to R7 [2] Tools ................................. T1 to T3 - E2200 -...
Page 61: Inspection Standards
VAA23001-R.3626.A INSPECTION STANDARDS Item Criteria Applied tool(s) External view Gap/Difference in • General components Visual observation height Gap: 0.3mm or less Difference in height: 0.15mm or less • When the battery cover is closed: Gap: 0.5mm or less (Difference between right and left must not be noticeable.) Outside and inside •...
Page 62 VAA23001-R.3626.A Item Criteria Applied tool(s) Lens capacity Focal length Wide-end position (Compelling Focal length ∞ 4.7 mm +7.3% measuring -0.9% instrument Tele-end position (Compelling Lens drive tool ∞ 14.1 mm +3.3% -4.7% Open aperture F No. Wide-end position (Compelling Focal length ∞...
Page 63 VAA23001-R.3626.A Item Criteria Applied tool(s) Shooting with a speed light Light adjustment • Tele-end: 0.4 ~ 2.0m Standard reflection accuracy • Wide-end: 0.4 ~ 3.7m plate • Macro-wide-end 0.4 ～ 3.7 ｍ In the above range, ± 0.5 Ev or less (Photography mode: AUTO , •...
Page 64 VAA23001-R.3626.A Item Criteria Applied tool(s) Gradation/luminance [Histogram's gray average value] Gray scale chart level • Black: 10 ± 5 Gray: 145 ± 10 PHOTOSHOP White: 220 ± 15 • Photography mode: AUTO, Image quality mode: HIGH • Wide-end position, aperture "open", distance: 0.3m or more •...
Page 65 VAA23001-R.3626.A Item Criteria Applied tool(s) Quality of image Reproduction of color Color bar chart ＢＲＧＢ 210±20 210±20 210±20 Ｗ PHOTOSHOP 190±20 195±20 20-55 Ｙｅ 205±20 15±10 0-15 Ｒ • Photography mode: AUTO, Image quality mode; HIGH • Equip the 5100K viewer with the chart and shoot an object in the full range of angle of view.
Page 66 VAA23001-R.3626.A Item Criteria Applied tool(s) LCD and others Monitor LCD View • There must be no shading in the LCD display range. Visual observation • Inclination between the monitor and the monitor frame must not be outstanding. Visual observation Visual field ratio •...
Page 67 VAA23001-R.3626.A Item Criteria Applied tool(s) Electric characteristics Consumption current • When card is not used: 0.27mA or less (when the power Constant voltage switch is OFF) power supply • When card is used: 0.39mA or less (when the power switch is Ammeter OFF) Stand-by...
Page 68 VAA23001-R.3626.A ［２］工具一覧表　　Tool List ※：新規工具 ※：New tool 名　　称備　考工具番号 Name Remarks Tool No. J63080 パターンボックス　LV-1450DC 共通（E4300, E3500, Pattern Box LV-1450DC E3100, E2100, E5400, E3700, E3200, E2200, E8700） Common J63080A 交換用ハロゲンランプ（LV-1450DC 用） Spare Harogen Lamp (For LV-1450DC) LV-1450DC Exclusive J63081 カラーメータ（ミノルタカラーメータⅢ...
Page 69 VAA23001-R.3626.A ※：新規工具 ※：New tool 工具番号名　　称備　考 Tool No. Name Remarks J65057 キャリブレーションソフト共通 (E995,E775,E885 ※ Calibration Software E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200 E8700) Common(E995,E775,E885 E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200 E8700) J63090...
Page 70 VAA23001-R.3626.A - T3 ･ E2200 -...
