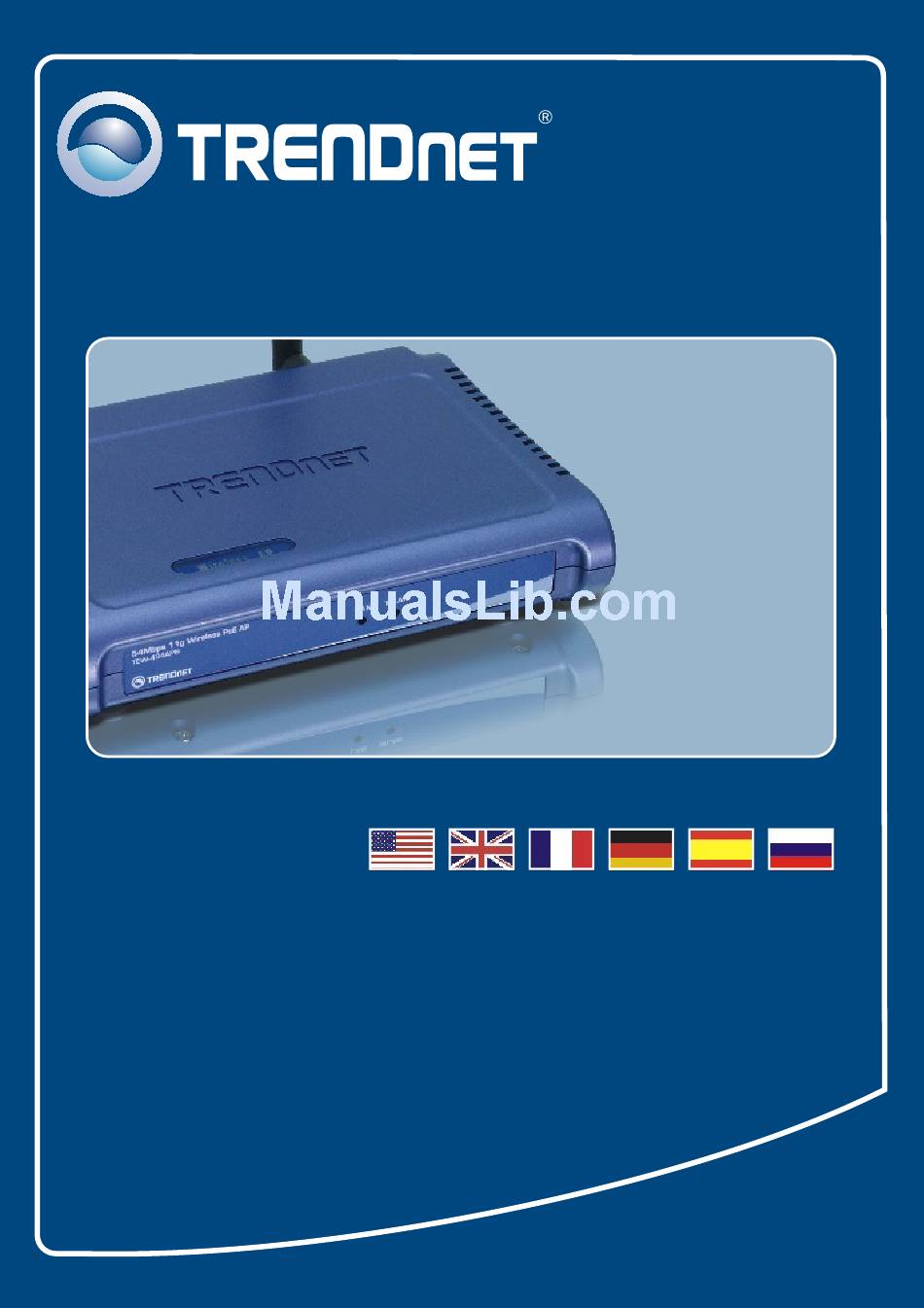

- Page 1 Quick Installation Guide TEW-434APB...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... 3. Power-over-Ethernet Installation ... 4. Configure the Access Point ... Troubleshooting ... Version 01.08.2007... -
Page 3: English
(TEW-423PI) Internet Cable/DSL Modem 100Mbps Note: The TEW-434APB only support Power over Ethernet (PoE) devices that follow the IEEE 802.3af Mode A (pin 1, 2, 3, 6) standard TEW-434APB Quick Installation Guide User’s Guide CD-ROM AC Power Adapter (7.5V 1A) -
Page 4: Hardware Installation
Note: Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network. Please connect the computer configuring the TEW-434APB to the same switch/hub. 1. Connect a RJ-45 cable from the... -
Page 5: Power-Over-Ethernet Installation
3. Power-over-Ethernet Installation Using the TEW-434APB with a PoE switch 1. Connect a RJ-45 cable from the Power-over-Ethernet Switch (e.g. TRENDnet TPE-S88) to the LAN port of the Access Point and then connect the 2dBi Detachable Antenna. 2. Verify that the following panel lights are on: WLAN and LAN. - Page 6 Using the TEW-434APB with the TPE-101I 1. Connect the Power Cord to the AC Power Adapter. 2. Connect the AC Power Adapter to the DC 48V IN connector on the TPE-101I. Then connect the Power Cord to an outlet. 3. Connect a CAT-5 cable from a switch to the TPE-101I's DATA IN port.
-
Page 7: Configure The Access Point
4. Configure the Access Point Note: It is recommended that you configure the Access Point from a wired computer. Before the Access Point can be configured, a Static IP address must be assigned to your computer's network adapter in the subnet of 192.168.1.x. - Page 8 4. Click Next. 5. Enter a new password for your Access Point, verify the new password, and then click Next. (If a new password is not entered, the default password admin will be used. 6. Enter a SSID for your Access Point and then click Next.
- Page 9 7. Enable Encryption if needed and then click Next 8. Click Restart. 9. Click Close. Your installation is now complete. For detailed information regarding the TEW-434APB's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. English...
-
Page 10: Troubleshooting
I typed http://192.168.1.100 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-434APB's web configuration page? First, check your hardware settings again by following the instructions in section 2. - Page 11 Make sure the wireless network adapter is configured with the proper SSID. The default SSID of the Access Point is TRENDnet. The TEW-434APB does not power on when I plug the device into a Power- Over-Ethernet switch or splitter. What should I do? First, verify that the PoE device supports IEEE 802.3af protocol.
- Page 12 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 13 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
