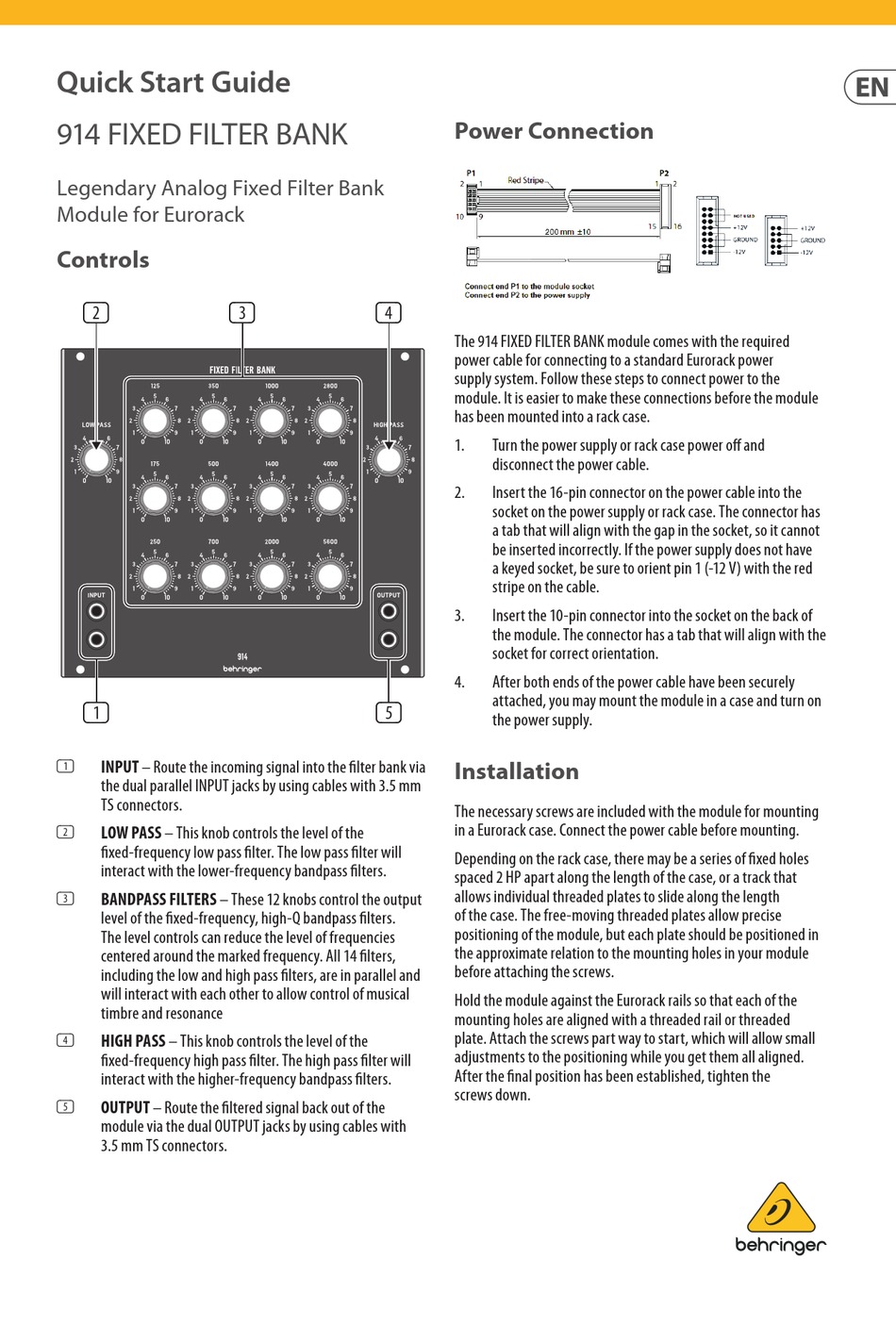

Behringer 914 Fixed Filter Bank Quick Start Manual

Quick Start Guide
914 FIXED FILTER BANK
Legendary Analog Fixed Filter Bank
Module for Eurorack
Controls
(2)
(1)
(1)
INPUT – Route the incoming signal into the fi lter bank via
the dual parallel INPUT jacks by using cables with 3.5 mm
TS connectors.
(2)
LOW PASS – This knob controls the level of the
fi xed-frequency low pass fi lter. The low pass fi lter will
interact with the lower-frequency bandpass fi lters.
(3)
BANDPASS FILTERS – These 12 knobs control the output
level of the fi xed-frequency, high-Q bandpass fi lters.
The level controls can reduce the level of frequencies
centered around the marked frequency. All 14 fi lters,
including the low and high pass fi lters, are in parallel and
will interact with each other to allow control of musical
timbre and resonance
(4)
HIGH PASS – This knob controls the level of the
fi xed-frequency high pass fi lter. The high pass fi lter will
interact with the higher-frequency bandpass fi lters.
(5)
OUTPUT – Route the fi ltered signal back out of the
module via the dual OUTPUT jacks by using cables with
3.5 mm TS connectors.
(3) (4)
(5)
Power Connection
The 914 FIXED FILTER BANK module comes with the required
power cable for connecting to a standard Eurorack power
supply system. Follow these steps to connect power to the
module. It is easier to make these connections before the module
has been mounted into a rack case.
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the
socket on the power supply or rack case. The connector has
a tab that will align with the gap in the socket, so it cannot
be inserted incorrectly. If the power supply does not have
a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of
the module. The connector has a tab that will align with the
socket for correct orientation.
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and turn on
the power supply.
Installation
The necessary screws are included with the module for mounting
in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fi xed holes
spaced 2 HP apart along the length of the case, or a track that
allows individual threaded plates to slide along the length
of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned in
the approximate relation to the mounting holes in your module
before attaching the screws.
Hold the module against the Eurorack rails so that each of the
mounting holes are aligned with a threaded rail or threaded
plate. Attach the screws part way to start, which will allow small
adjustments to the positioning while you get them all aligned.
After the fi nal position has been established, tighten the
screws down.
