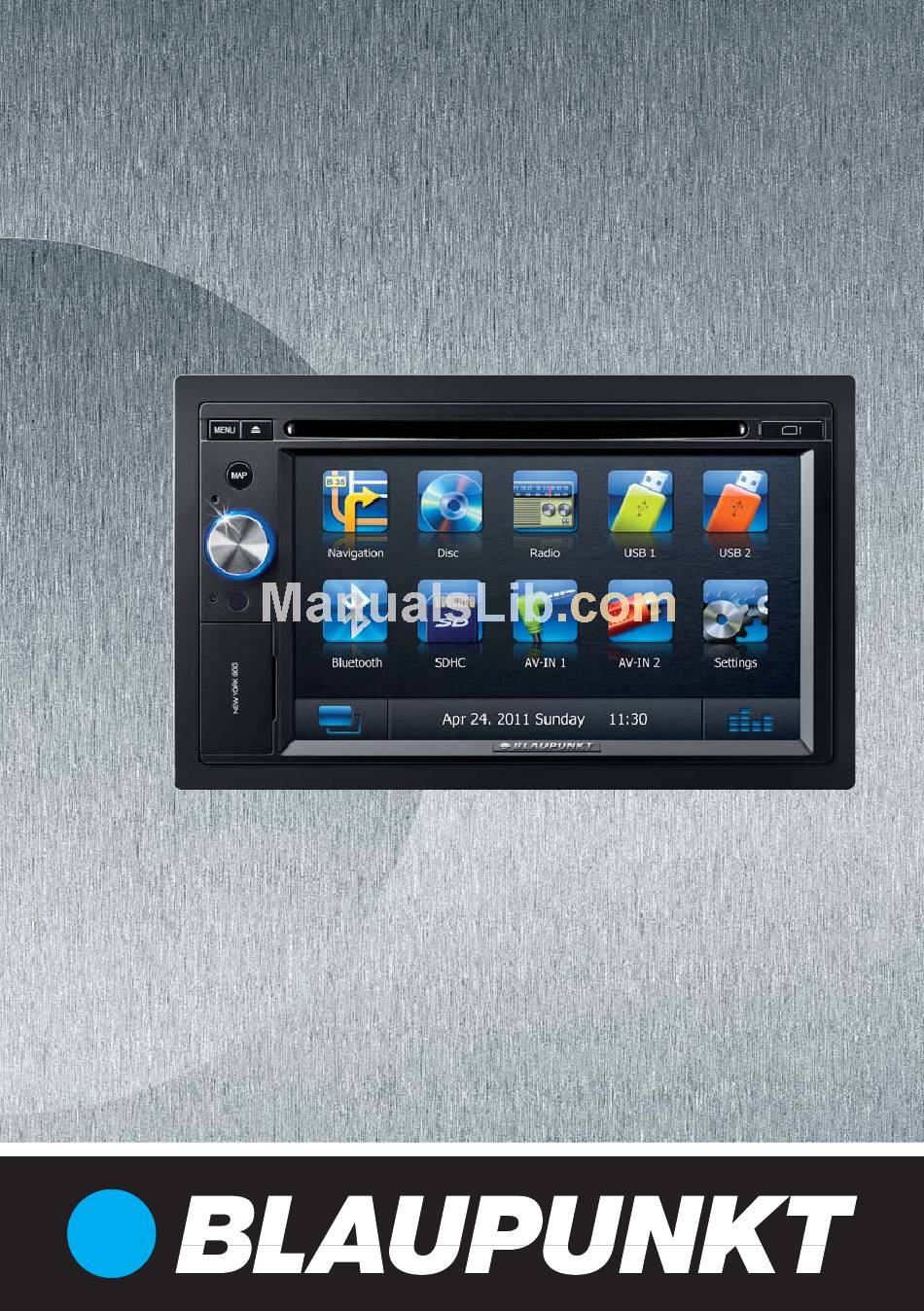

- Page 1 Multimedia Navigation New York 800 Operating instructions...
- Page 2 Controls – Device button (Eject) Eject a CD/DVD MENU button Call up main menu In the main menu: Call up menu of active source MAP button Call up navigation In navigation mode: Call up menu of active source Microphone Rotary/pushbutton Short press: Switch on device In operation: Mute audio source Long press: Switch off device...
- Page 3 SRC button Call up main menu / EJECT button Eject a CD/DVD AUDIO / MUSIC button Select playback language (if available on DVD) Call up folder overview of audio fi les DISP button Show information on the display ZOOM button Zoom in on image area BAND button Select waveband/memory bank...
-
Page 4: Table Of Contents
Contents Safety notes ... 5 Symbols used ...5 Road safety ...5 General safety notes ...5 Declaration of conformity ...5 Cleaning notes ... 5 Disposal notes... 5 Scope of delivery ... 6 Placing the device in operation ... 6 Switching on/off ...6 Volume ...6 Main menu ...6 Radio mode ... -
Page 5: Safety Notes
Declaration of conformity We, Blaupunkt AudioVision GmbH & Co. KG, affi rm that the device New York 800 fulfi ls the fundamental require- ments and other relevant regulations of the EU Directive 1999/5/EC. The declaration of conformity can be found on the Inter- net under www.blaupunkt.com. -
Page 6: Scope Of Delivery
Scope of delivery | Startup | Radio mode Scope of delivery The scope of delivery includes: • New York 800 • Remote control (incl. battery) • TMC Tuner (for 1 011 103 800/802/810/812 only) • MicroSD card with navigation data in the MicroSD card slot (only for devices with navigation) •... -
Page 7: Storing Stations Manually
Enter broadcast frequency directly If the frequency of the desired stations is known, it can be entered directly via the touchscreen. u In radio mode, press the [ ] button. A numeric keypad is displayed for the frequency input. u Enter the frequency of the desired station with the numeric keypad. -
Page 8: Navigation
Download of map data To ensure that you have the latest version of the map data when you purchase the New York 800, you have 30 days from the fi rst GPS positioning to download the latest version of the map data once and free of charge to the standard MicroSD card from the Internet at www.naviextras.com. -
Page 9: Points Of Interest
The menu for the address entry is displayed. u Enter the country, city and street in succession as well as the intersection or house number. To do so, press the corresponding entry in the address entry menu. A menu for text entry is displayed. u Enter the desired destination via the keyboard. -
Page 10: Setting Route Options
Navigation A list of petrol stations in the vicinity of the vehicle is displayed. The petrol stations are sorted by distance to vehicle. u Select a petrol station from the list by pressing on the list entry. The petrol stations is displayed on the map. u Press Next. -
Page 11: Map Settings
Changing route options during route guidance u During a route guidance, press the More button. u Press Route Settings. The route settings are displayed. u Change the settings, if necessary. u Press Back. The route guidance is displayed again. Map Settings With the map settings, you can adjust the view mode (2D or 3D), the viewing angle of the map, the colours and the display of buildings and points of orientation on the... -
Page 12: Dvd/Cd/Usb/Sdhc/Ipod Media Playback
DVD/CD/USB/SDHC/iPod media playback Basic information The New York 800 can be used to play audio DVDs/CDs (CDDA) and DVD/CD-R/RWs with audio, MP3 or WMA fi les as well as MP3 or WMA fi les on USB data carriers and SDHC cards. -
Page 13: Sdhc Cards
DVD movie playback The New York 800 can play video DVDs and VCDs. After inserting the DVD, the playback starts automatically. The DVD menu is displayed. -
Page 14: Audio Playback Of Dvd/Cd, Usb, Sdhc Or Ipod/Iphone
DVD/CD/USB/SDHC/iPod media playback Audio playback of DVD/CD, USB, SDHC or iPod/iPhone The principles of the audio playback (MP3/WMA) from data carriers or iPod®/iPhone® are identical for all sources. u Select the desired source via the main menu. If the playback starts with image or video fi les, u press the [ ] button to change to the audio play- back. -
Page 15: Image Playback From Dvd/Cd, Usb Or Sdhc
The playback menu is shown. ] Display the second page of the menu. ] End playback, change to folder view. ] Select previous movie. ] Interrupt playback and continue playback. ] Select next movie. ] Fast searching reverse. ] Fast searching forward. Second page of playback menu. -
Page 16: Bluetooth Mode
Registering Bluetooth devices If you want to register a device with the New York 800 for the fi rst time, proceed as follows: u Ensure that Bluetooth® is activated at the New York 800 and at your Bluetooth®... -
Page 17: Bluetooth Settings
Bluetooth mode | Rear Seat Entertainment Rear Seat Entertainment (RSE) The New York 800 features outputs to connect two exter- nal monitors and audio outputs for the rear area of the vehicle. Since a diff erent programme can be displayed on the ex- ternal monitors than on the device, it is possible to view images and movies on an external monitor while driving. -
Page 18: External Audio/Video Sources
External audio/video sources | Sound settings External audio/video sources This device features two external AV inputs for audio and video playback: • AV-IN 1 is located under the cover at the front of the device. • AV-IN 2 is implemented as a cinch socket on a cable at the rear of the device. -
Page 19: Basic Settings
Basic settings In the settings menu of the device, you can adjust the basic settings for the diff erent functions of the New York 800 to your requirements. u In the main menu, press the Settings button. The settings menu is displayed, the General sub- menu is activated. -
Page 20: Sound
Basic settings Sound The following settings are possible: Subwoofer – Switch subwoofer on/off Subwoofer fi lter – Make the setting according to the subwoofer used (settings: 80/120/160 Hz). Dynamic bass boost – Switch dynamic bass on/off Language The following settings are possible: On screen display –... -
Page 21: Volume
European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up from www.blaupunkt.com. Service If you ever need to use a repair service, you will fi nd in- formation about service partners in your country under www.blaupunkt.com. -
Page 22: Connection Diagram
Connection diagram... -
Page 23: Appendix
Caution: (pertaining to FCC part 15.21) Modifi cations not expressly approved by this company could void the user’s authority to operate the equipment. © 2011 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only. - Page 24 Blaupunkt AudioVision GmbH & Co. KG Robert-Bosch-Straße 200 D-31139 Hildesheim http://www.blaupunkt.com 5 101 030 003 05/11...
