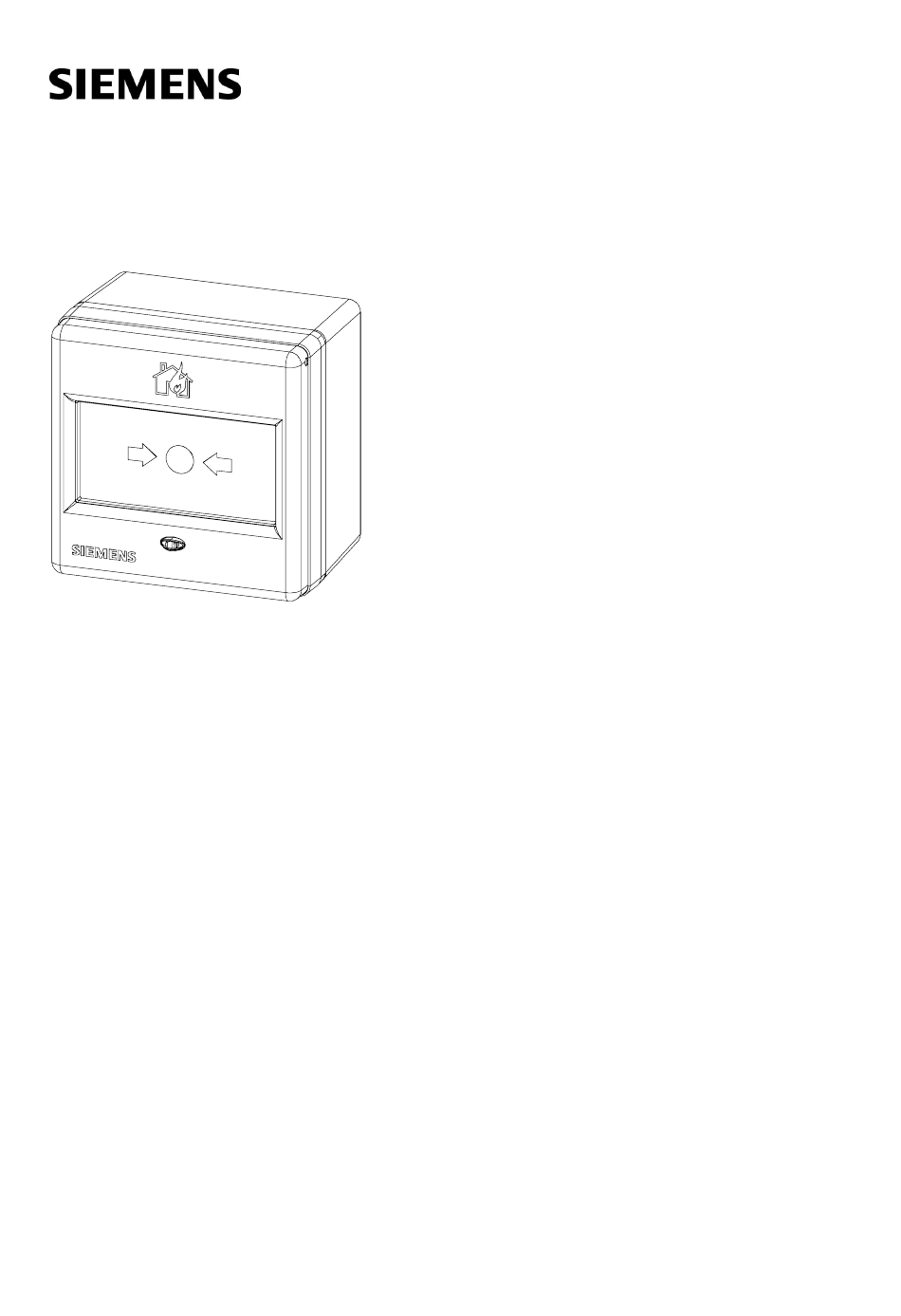

- Page 1 FDM275, FDM275(F) Radio manual call point Mounting Building Technologies A6V10401114_f_en_-- 2018-11-19 Control Products and Systems...
- Page 2 Issued by: Siemens Switzerland Ltd. Building Technologies Division International Headquarters Theilerstrasse 1a CH-6300 Zug Tel. +41 58 724-2424 www.siemens.com/buildingtechnologies Edition: 2018-11-19 Document ID: A6V10401114_f_en_-- © Siemens Switzerland Ltd, 2014 2 | 18 Building Technologies A6V10401114_f_en_-- Fire Safety 2018-11-19...
-
Page 3: Table Of Contents
Table of contents About this document ................5 Mounting and installation ............... 6 Mounting radio manual call point FDM275 ..........6 Installation ....................7 Installing the protective cover ..............9 Replacing the plastic insert with a glass insert ..........10 Details for ordering ................11 Battery pack BAT3.6-10 ................11... - Page 4 4 | 18 Building Technologies A6V10401114_f_en_-- Fire Safety 2018-11-19...
-
Page 5: About This Document
The radio manual call points FDM275 and FDM275(F) may only be used together with a radio gateway FDCW241 in a fire detection system FS20/FS720. FDM275 will now apply to both variants of the radio manual call point – FDM275 and FDM275(F). -
Page 6: Mounting And Installation
2 Mounting and installation 2.1 Mounting radio manual call point FDM275 Secure the radio manual call point FDM275 at a height of 0.9…1.6 m on an even surface. Observe the country-specific regulations for the exact mounting height! Figure 1: Opening the housing with the key FDMK295 w The position of radio manual call point FDM275 has been established. -
Page 7: Installation
1. Remove the adhesive label with the serial number from the type plate (3) on the switching unit. Use the adhesive label to mark the position of the radio manual call point FDM275 on the device location plan. 2. Label the battery pack (2) with the current date. - Page 8 (5). a The internal alarm indicator (10) lights up red. a After a further 10 seconds, the radio manual call point FDM275 signals that it is not installed in the housing, and the internal alarm indicator flashes every two seconds: –...
-
Page 9: Installing The Protective Cover
(1) intended for this purpose. See also 'Protective cover FDMC295' chapter. a The protective cover is installed. Figure 3: Installing the protective cover FDMC295 1 Radio manual call point FDM275 2 Protective cover See also 2 Protective cover FDMC295 [➙ 12]... -
Page 10: Replacing The Plastic Insert With A Glass Insert
Mounting and installation Replacing the plastic insert with a glass insert 2.4 Replacing the plastic insert with a glass insert Proceed as follows to replace the plastic insert with a glass insert: w The detector line to which the manual call point is connected is switched off. 1. -
Page 11: Details For Ordering
Inscription field for commissioning date ● Compatible with: – Radio gateway FDCW241 – Radio manual call point FDM273 – Radio manual call point FDM275 – Radio manual call point FDM275(F) – Radio fire detector FDOOT271 ● Order number: S54370-Z11-A1 3.2 MCL-USB (radio) adapter FDUZ227 ●... -
Page 12: Protective Cover Fdmc295
Manual call point FDM1101-Rx – Manual call point FDM1101A-Rx – Manual call point FDM225-Rx – Manual call point FDM226-Rx – Radio manual call point FDM275 ● Order number: A5Q00013440 3.4 Glass inserts FDMG295-x ● For alarm activation and protection against soiling ●... -
Page 13: Key Fdmk295
Compatible with: – Manual call point FDM1101-Rx – Manual call point FDM1101A-Rx – Manual call point FDM225-Rx – Manual call point FDM226-Rx – Radio manual call point FDM275 ● Order number: A5Q00013448 13 | 18 A6V10401114_f_en_-- Building Technologies Fire Safety 2018-11-19... -
Page 14: Specifications
Specifications Technical data 4 Specifications 4.1 Technical data You will find information on approvals, CE marking, and the relevant EU directives for this device (these devices) in the following document(s); see 'Applicable documents' chapter: ● Document A6V10271323 Device characteristics Detector diagnosis With FXS2061 SWING Tool or connected fire control panel Type of alarm activation... - Page 15 Specifications Technical data Ambient conditions Place of installation Inside buildings/indoors Operating temperature -10…+55 °C Storage temperature -30…+75 °C Air humidity ≤95 % rel. Protection categories (IEC 60529): IP24D Electromagnetic compatibility: ● 10 kHz…100 kHz 160 V/m ● 100 kHz…2.5 GHz 30 V/m Mechanical data Weight:...
-
Page 16: Dimensions
Specifications Dimensions 4.2 Dimensions 86.8 36.5 4.3 Master gauge for recesses 25.4 25.4 A, B = 5.3 mm 16 | 18 Building Technologies A6V10401114_f_en_-- Fire Safety 2018-11-19... -
Page 17: Environmental Compatibility And Disposal
Specifications Environmental compatibility and disposal 4.4 Environmental compatibility and disposal This equipment is manufactured using materials and procedures which comply with current environmental protection standards as best as possible. More specifically, the following measures have been undertaken: ● Use of reusable materials ●... - Page 18 Issued by © Siemens Switzerland Ltd, 2014 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Building Technologies Division International Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID: A6V10401114_f_en_-- Manual FD20/FD720 Edition: 2018-11-19...
