Summary of Contents for Pulse PLS00571

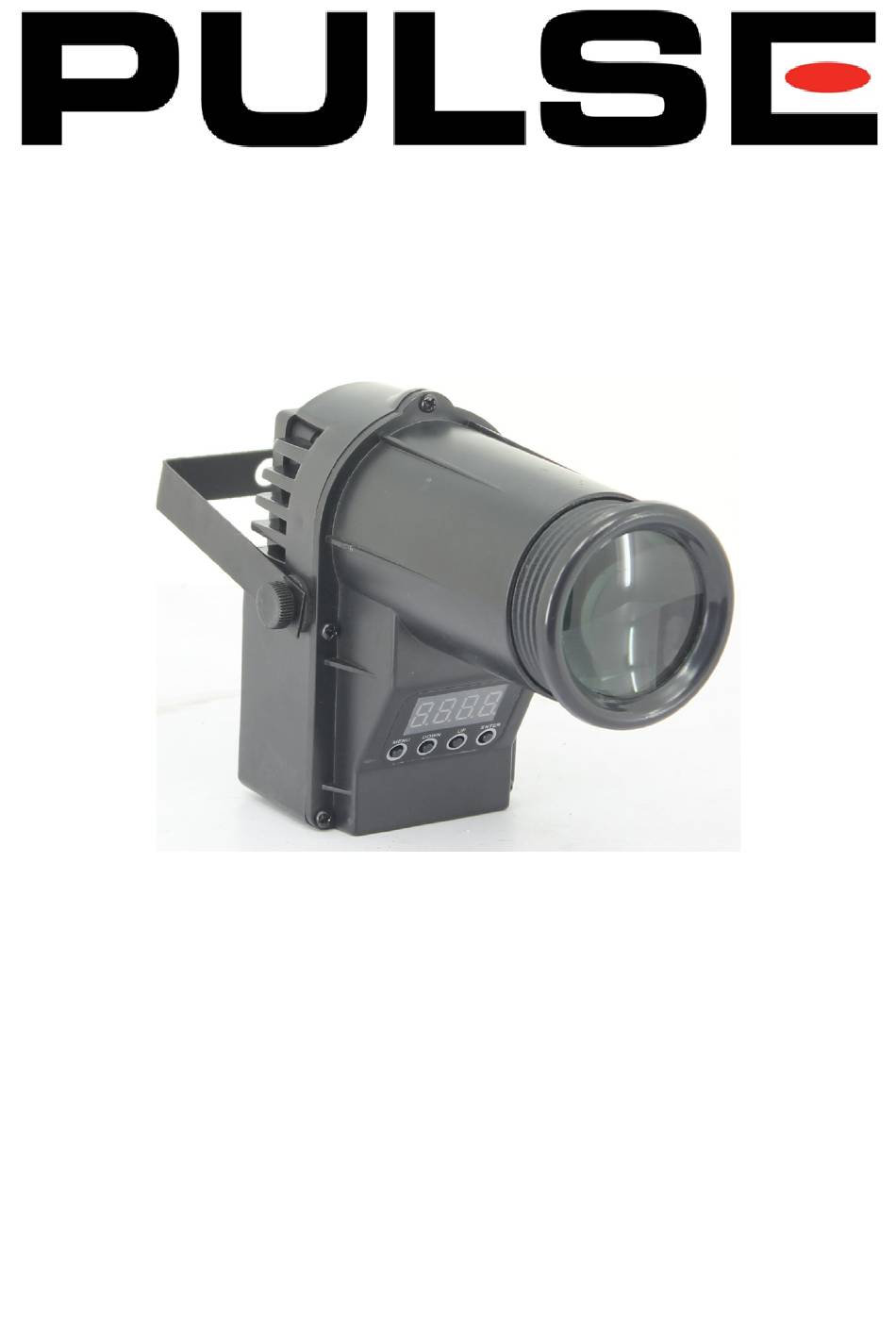

- Page 1 Mini LED Pin Spot Light Model: PLS00571...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be • followed. Check the product before use for any damage. Should you notice any damage on •... -
Page 3: Menu Function Settings
MENU FUNCTION SETTINGS Number Display Function DMX512 (enter-switch to channel choose) A001 Operational model choose X (sound control) RUN x Color dimmer (enter-switch different color) Color Leon / Dighton free or close - when operating the display light is open loff Specific Settings Clear... -
Page 4: Building A Serial Dmx Chain
BUILDING A SERIAL DMX CHAIN • Note: the DMX-output of the first fixture in the DMX chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected. •... - Page 5 DMX 6 CH Mode Channel Number Function Description 9-134 Dimmer 135-239 Strobe Combined with CH2/CH3/CH4/CH5 channel for red, 240-255 green, blue, white brightness control 0-255 Red linear adjustment from dark to bright 0-255 Green linear adjustment from dark to bright 0-255 Blue linear adjustment from dark to bright 0-255...
-
Page 6: Cleaning And Maintenance
Control mode sound activation, auto, DMX-512 DMX channels 6 CHs Dimmer 0-100% with regulated constant color control Electronic strobe with pulse and random effects. 10 flashes Strobe per second. Working environment 32°F to 104°F Dimensions 5.3" x 3.1" x 4.7"...
