Summary of Contents for Bosch GCM 8 SJL

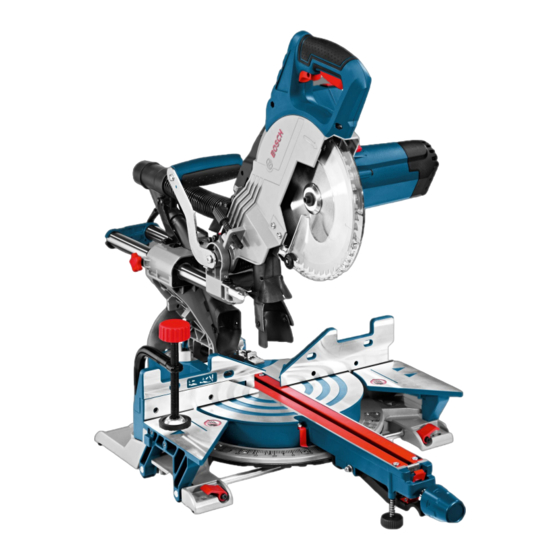

- Page 1 User Manual Bosch GCM 8 SJL 14.03.2019...
-
Page 2: Safety Rules
Safety Rules Do NOT touch the saw blade Do NOT wear gloves, watches and jewellery Cut only wood Clean after usage Use the ventilation... - Page 3 Terms On/Off Switch Handle Lock Switch Slide Blade Guard Saw Blade Slide Lock Material Clamp Miter Angle Scale Table Table Extension Clamps Miter Angle Lock...
-
Page 4: Workpiece Holding
Workpiece Holding Always use the material clamp to fix the workpiece before cutting! NEVER hold the workpiece with your hand close to the saw blade! For longer workpieces, use the table extensions... - Page 5 Alignment Use the laser to see where the workpiece will be cut. Laser Switch The laser ray shows you the left side of the final cut...
- Page 6 Cutting Short cuts Grab the handle with one hand Press the On/Off-switch and the lock-switch Push the handle down slowly Long cuts Loosen the slider lock – you can now move the slieder Start cutting at the front and push the handle towards the end of the machine until your cut is completed...
-
Page 7: Miter Angle
Miter Angle Miter Detent Lever Open the miter angle lock Press the miter detent lever Rotate the table Miter Angle Lock Use the miter angle indicator to set the required angle Close the miter angle lock... -
Page 8: Bevel Angle
Bevel Angle Bevel Clamping Lever Open the bevel clamping lever Adjust the bevel angle using the bevel angle scale Close the bevel clamping lever IMPORTANT: Move the adjustable fence to the left...
