6 Installation
Position of the fan burners in appliances sizes 20.10 and 20.20

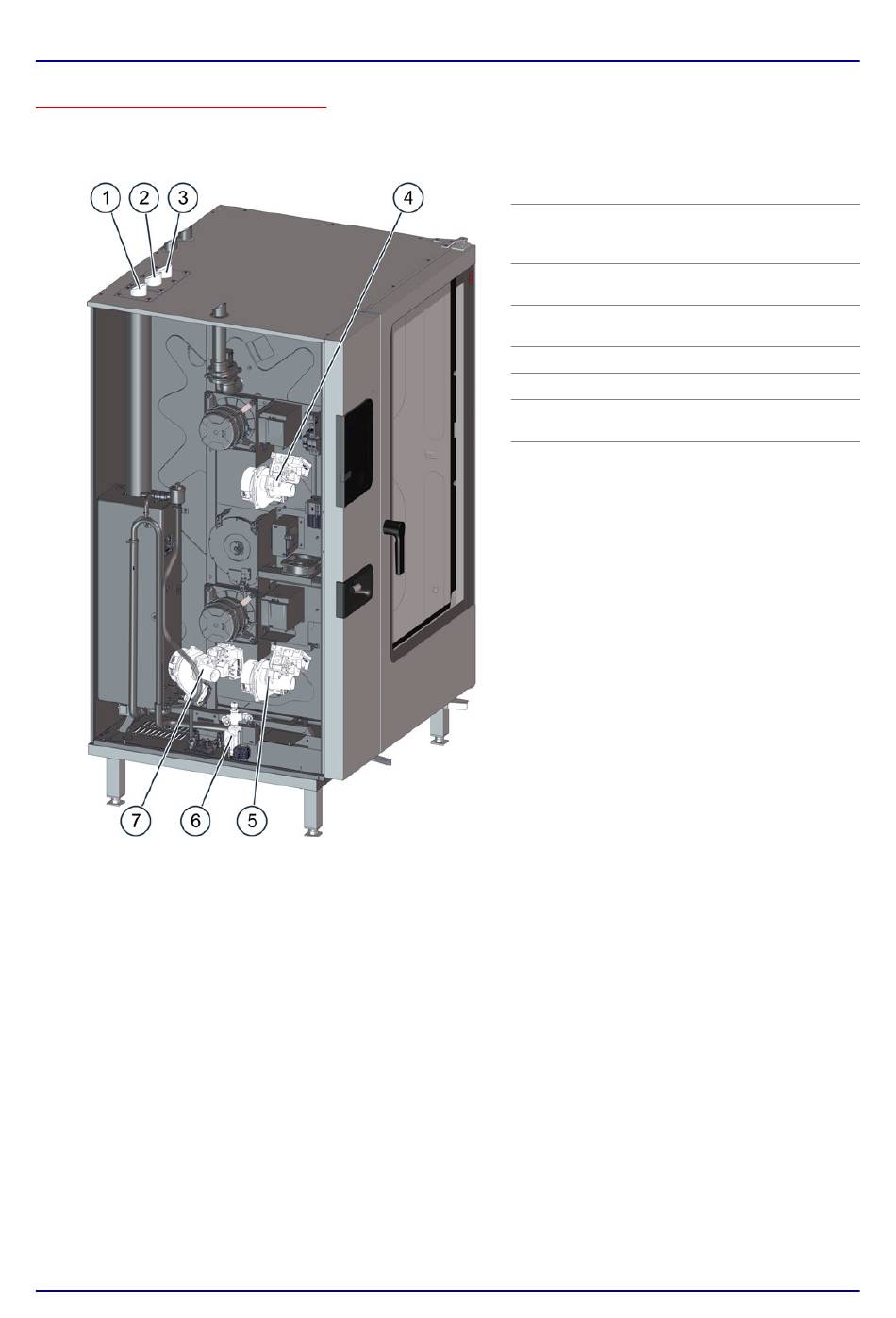

The following illustration shows a size 20.20 combi oven with boiler as an example of gas appliances
of size 20.10 and 20.20:
Item Name
Exhaust outlet from boiler burner
1
(only on models with boiler not
steam injection)
Exhaust outlet for bottom convection
2
burner
Exhaust outlet for top convection
3
burner
Top convection burner
4
Bottom convection burner
5
Main gas valve, connection to gas
6
supply in appliance floor
Boiler burner (only on models with
7
boiler not steam injection)
