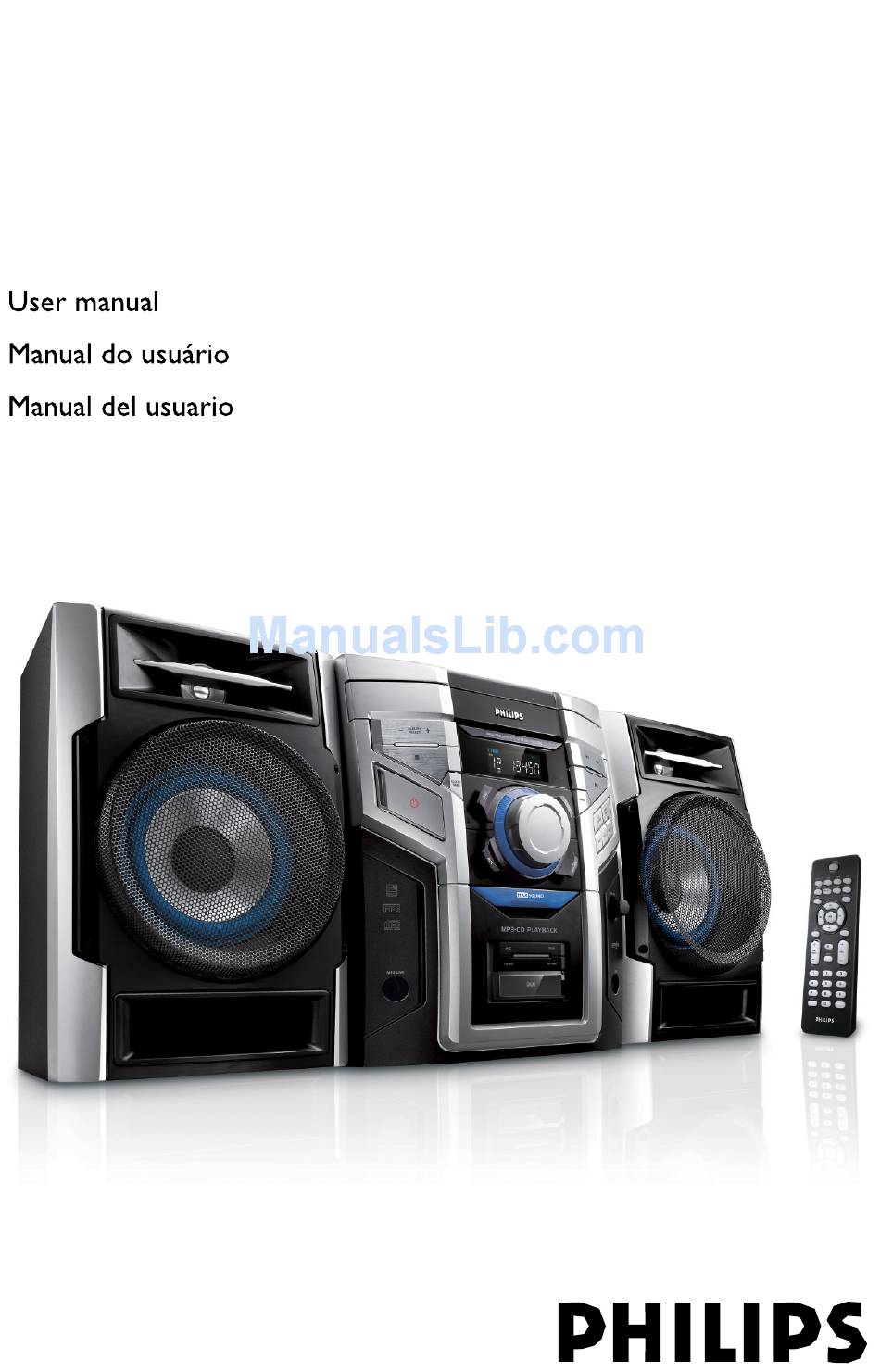

Mini Hi-Fi System FWM396 Register your product and get support at www.philips.com/welcome...
Page 2
País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
Page 4
CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. ATENCIÓN El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.
Page 5
Index English ------------------------------------------------ 6 Español --------------------------------------------- 24 Português ------------------------------------------ 52...
Contents General Information Supplied accessories ... 7 Environmental information ... 7 Safety information ... 7 Preparations Rear connections ... 8–9 Power Antenna connection Speakers connection Optional connection ... 9 Inserting batteries into the remote control ... 9 Controls Controls on the system ... 10 Controls on remote control ...
Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome. IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY.
Preparations AM antenna Speaker (right) AC power cord Rear connections The type plate is located at the rear of the system. Power Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage.
FM Antenna It is unnecessary to connect the FM pigital antenna since it is fixed to the main unit.. ● Adjust the FM antenna for optimal FM stereo reception. Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "R"...
Controls (illustrations on page 3) Controls on the system Disc tray Display screen – to view the current status of the system. Mode Selection ALBUM/PRESET -/+ for MP3-CD ... to select previous/next album. for Tuner ... to select a preset radio station for Clock/Timer ...
Controls on remote control POWER – switches the system on or to standby mode. Source selection – to select the following: DISC 1/2/3 – to select disc tray 1, 2 or 3. – to select waveband: FM or MW. Line-in (MP3 LINK) –...
Basic Functions MP3 LINK IMPORTANT! Before you operate the system, complete the preparation procedures. Plug and Play (for tuner installlation) Plug and Play allows you to store all available radio stations automatically. First time setup/power up When you turn on the main supply, "AUTO INSTALL - PRESS PLAY"...
Switching the system to standby mode In any other source mode ● Press 2 (or POWER on the remote control). ➜ The clock will appear on the display when the system is in standby mode. Power-saving automatic standby As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 15 minutes after a disc or tape has stopped playing.
CD/MP3-CD/WMA Operations MP3 LINK IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism.
Press OPEN•CLOSE to close the disc tray. ➜ READING is displayed as the CD player scans the contents of a disc, and then the total number of tracks and playing time (or the total number of albums and tracks for MP3/WMA disc) are shown.
CD/MP3-CD/WMA Operations Different play modes: SHUFFLE and REPEAT You can select and change the various play modes before or during playback. The play modes can also be combined with PROGRAM..plays the current track continuously ALB ... plays the current album continuously ALL ...
MP3 LINK Tuning to radio stations Press TUNER (or TUN on the remote control). Hold S / T (or à / á on the remote control) and then release the button. ➜ The system will start searching for a radio station with sufficient signal strength.
External Sources MP3 LINK Listening to external sources Using AUX IN (white/red jacks) Use the audio cables (white/red, not supplied) to connect AUX IN (L/R) jacks of the main unit (located on the back panel ) to the corresponding AUDIO OUT jacks on an external device (such as TV or VCR).
MP3 LINK Clock setting The clock can be set in either 12-hour or 24-hour mode ("AM 12:00" or "00:00" for example). In standby or view clock mode, press CLOCK/ TIMER (or CLOCK on the remote control ) on the remote control. Press PROG to select clock mode.
Clock/Timer Press ALBUM/PRESET +/- (or ALB/ PRESET +/- on the remote control ) repeatedly to set the minute for the timer to start. Press CLOCK/TIMER (or TIMER on the remote control ) to store the start time. ● At the preset time, the selected source will play. To exit without storing the setting ●...
Cleaning the disc lens ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
Troubleshooting The remote control does not function properly. The time is not working. The Clock/Timer setting is erased. ✔ Select the source (DISC or TUN, for example) before pressing the function button (É Å,í,ë). ✔ Reduce the distance between the remote control and the system.
