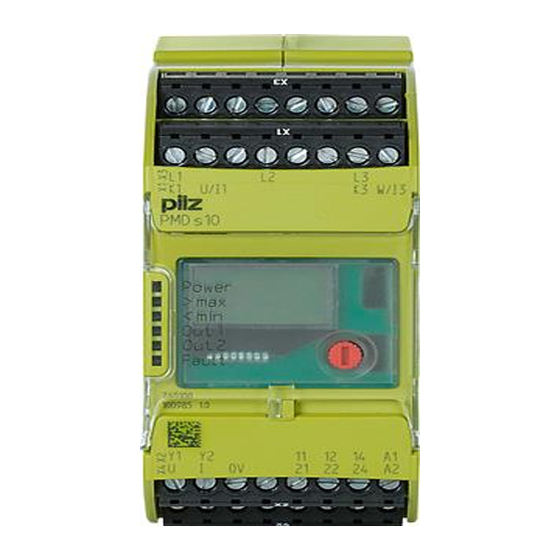

- Page 1 PMD s10 Monitoring relays Operating Manual-22092-EN-05...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
"Advanced Settings" menu and sub-menu ................23 7.5.4.3 "Info" menu ..........................24 7.5.4.4 "Settings", "Advanced Settings" and "Info" menu (schematic representation)......25 7.5.5 Set the parameter value ......................Procedure for setting parameters ..................... 7.6.1 Example configuration ......................Operating Manual PMD s10 22092-EN-05... - Page 4 Contents Operation ..........................Status messages ........................8.1.1 Error messages ........................Technical details ........................Order reference ........................EC declaration of conformity ....................Operating Manual PMD s10 22092-EN-05...
-
Page 5: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the true power converter PMD s10 from Version 2.0. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 6 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PMD s10 22092-EN-05...
-
Page 7: Safety
Safety Safety Intended use The true power converter PMD s10 used to measure and monitor the rated power or true power on electrical consumers. It is designed for use on: True power converter for single and three-phase electrical machinery Trip device for underload and overload... -
Page 8: Disposal
If voltages higher than low voltage (>50 V AC or >120 V DC) are present on the unit, con- nected control elements and sensors must have a rated insulation voltage of at least 250 V Operating Manual PMD s10 22092-EN-05... -
Page 9: Unit Features
Display of operating hours and load hours (resettable) Device parameters can be saved to chip card (write) Device parameters can be restored from the chip card (load) Suitable for use with frequency-controlled drives Suitable for current transformers Suitable for voltage transformers Operating Manual PMD s10 22092-EN-05... -
Page 10: Block Diagram
Block diagram Block diagram *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual PMD s10 | 10 22092-EN-05... -
Page 11: Function Description
Function description Function description The PMD s10 monitors the set upper and lower true power limit on a single or three phase supply or on the DC supply. The unit operates in accordance with the principle of Aron cir- cuit. - Page 12 Function diagram 1 Hysteresis Hysteresis tstart tstart tstart tstart Legend P: Actual true power tstart: Start-up suppression time tr: Reaction time Operating Manual PMD s10 | 12 22092-EN-05...
- Page 13 Pmax = (1.0 W … 11.5 kW) x 100 x 1 = 100 W … 1.5 MW 2. Current transformer CT 1000 : 1 and voltage transformer VT 100 : 1 Pmax = (1.0 W … 11.5 kW) x 1000 x 100 = 100 kW … 1.5 GW Operating Manual PMD s10 | 13 22092-EN-05...
-
Page 14: Installation
In environments exposed to heavy vibration or when installing on a vertical mounting rail (35 mm), the unit should be secured using a fixing element (e.g. retaining bracket or end angle). Push the unit upwards or downwards before lifting it from the mounting rail. Operating Manual PMD s10 | 14 22092-EN-05... -
Page 15: Commissioning
Connect the output contacts in accordance with the relevant application circuit. Application NOTICE Only connect the unit as shown in the examples below! Do not connect un- labelled terminals. The following circuit examples are typical applications of the true power converter PMD s10. Operating Manual PMD s10 | 15 22092-EN-05... -
Page 16: Circuit For Three-Phase Motor
With voltage > 500 V the voltage has to be measured via an ex- ternal voltage transformer. 7.3.1 Circuit for three-phase motor U/I1 W/I3 PMD s10 Reset extern Y1 Y2 U V W < 12A Operating Manual PMD s10 | 16 22092-EN-05... -
Page 17: Circuit For Three-Phase Motor With Ct And Vt
Commissioning 7.3.2 Circuit for three-phase motor with CT and VT PMD s10 Reset extern Operating Manual PMD s10 | 17 22092-EN-05... -
Page 18: Circuit For Motor (1 Ac)
Commissioning 7.3.3 Circuit for motor (1 AC) Operating Manual PMD s10 | 18 22092-EN-05... -
Page 19: Circuit For Motor (1 Ac) With Ct
(A) pull out until it locks into position (B) release and push it back into the unit: – Press the bar on the side of the knob [1] towards the centre of the knob. This releases the knob. Operating Manual PMD s10 | 19 22092-EN-05... -
Page 20: Display
If the parameters on a unit have been changed due to an error, they can be restored us- ing the backup copy from the chip card. If a unit requires maintenance or needs to be exchanged, the chip card can be used to download the parameters to another unit. Operating Manual PMD s10 | 20 22092-EN-05... -
Page 21: Insert Chip Card
– Mechanical impact, such as scratches. NOTICE Switch off the product before inserting or exchanging the chip card. Make sure that you do not bend the chip card as you insert it into the chip card slot. Operating Manual PMD s10 | 21 22092-EN-05... -
Page 22: Write Data To Chip Card
Commissioning 7.5.3.2 Write data to chip card If you are inserting a chip card which has not yet been written by a PMD s10, you have the option to: Allow data to be written to the chip card Insert chip card 1. -
Page 23: Menu Overview
Transmission ratio of the external current transformer; if there is no external current trans- former set 1 : 1 External voltage transformer (ext. VT) Transmission ratio of the external current transformer; if there is no external current trans- former set 1 : 1 Operating Manual PMD s10 | 23 22092-EN-05... -
Page 24: Info" Menu
Reset all parameters to the factory default settings 7.5.4.3 "Info" menu Operating hours (tOperate) Operating hours of the PMD s10 Operating hours load/generator (tLoad) Operating hours of the load/generators; can be reset Max. voltage applied (Umax) highest voltage to have been applied Max. -
Page 25: Settings", "Advanced Settings" And "Info" Menu (Schematic Representation)
...% Pmax ...% Pmax Escape > PWU > PWU ...% Pmax ...% Pmax Escape Escape Load > Load > Load Def. yes? Def. Esc Default Adv.Set. Escape Info tOperate Menue Escape Escape Info Escape Operating Manual PMD s10 | 25 22092-EN-05... -
Page 26: Set The Parameter Value
0.0 V - 10.0 V + 10.0 V Escape Ioffset -> Ioffset -> Ioffset -> Ioffset 0.0 mA - 20.0 mA + 20.0 mA Escape Rel. K1 -> Rel. K1 -> Rel. K1 … Operating Manual PMD s10 | 26 22092-EN-05... -
Page 27: Procedure For Setting Parameters
Setting the parameters: If the unit PMD s10 is connected to a current transformer and/or a voltage transformer, set the CT/VT transmission ratio (default setting: 1 : 1). Set the load's maximum true power Pmax: –... -
Page 28: Example Configuration
(1 ... 10) is the same. Power P …. Settings Display Pmax x.xx KW -> Pmax x.xx KW 5. -> select -> Pmax 1.xx KW Pmax 1.00 KW 7. -> select Settings Escape Operating Manual PMD s10 | 28 22092-EN-05... - Page 29 1 : 1 6. -> select -> ext. CT 1 : 1 ext. CT 10 : 1 8. -> select Advanced Settings Escape Advanced Settings 10. -> select Menue Escape Power P ..Operating Manual PMD s10 | 29 22092-EN-05...
-
Page 30: Operation
Pmax too low Increase Pmax P > Pmax Insert Fault Chip card not inserted, not Insert or exchange chip card/ SIM Card writable or defective Power does No supply voltage Check supply voltage not illuminate Operating Manual PMD s10 | 30 22092-EN-05... -
Page 31: Technical Details
0,5 kOhm 0,5 kOhm Output signals during generator 760100 761100 operation Output voltage Uout 0 - -10 V 0 - -10 V Output current Iout 0 - -20 mA 0 - -20 mA Operating Manual PMD s10 | 31 22092-EN-05... - Page 32 0,01 - 30,00 s 0,01 - 30,00 s Start-up suppression time tstart 0,0 - 30,0 s 0,0 - 30,0 s Switch-on delay Typ. switch-on delay 700 ms 700 ms Max. switch-on delay 900 ms 900 ms Operating Manual PMD s10 | 32 22092-EN-05...
- Page 33 2 core with the same cross sec- tion, flexible without crimp con- nectors or with TWIN crimp con- nectors 0,20 - 1,50 mm², 24 - 16 AWG – Torque setting with screw terminals 0,50 Nm – Operating Manual PMD s10 | 33 22092-EN-05...
- Page 34 9 mm Dimensions Height 98,0 mm 100,0 mm Width 45,0 mm 45,0 mm Depth 120,0 mm 120,0 mm Weight 340 g 370 g Where standards are undated, the 2012-01 latest editions shall apply. Operating Manual PMD s10 | 34 22092-EN-05...
-
Page 35: Order Reference
Product type Features Connection type Order no. PMD s10 24 - 240 V AC/DC With screw terminals 760 100 PMD s10 C 24 - 240 V AC/DC With spring-loaded ter- 761 100 minals Operating Manual PMD s10 | 35 22092-EN-05... -
Page 36: Ec Declaration Of Conformity
EC declaration of conformity This/(These) product(s) fulfil the requirements of the low voltage directive 2006/95/EG. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/down- loads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-... - Page 37 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
