Saugen
Repair instructions
Applies to:
FEIN Dustex 25 L, FEIN Dustex 35 L, Turbo I, TURBO II
with antistatic preparation

Advertisement

Table of Contents
loading

Related Manuals for Fein Dustex 25 L

Summary of Contents for Fein Dustex 25 L

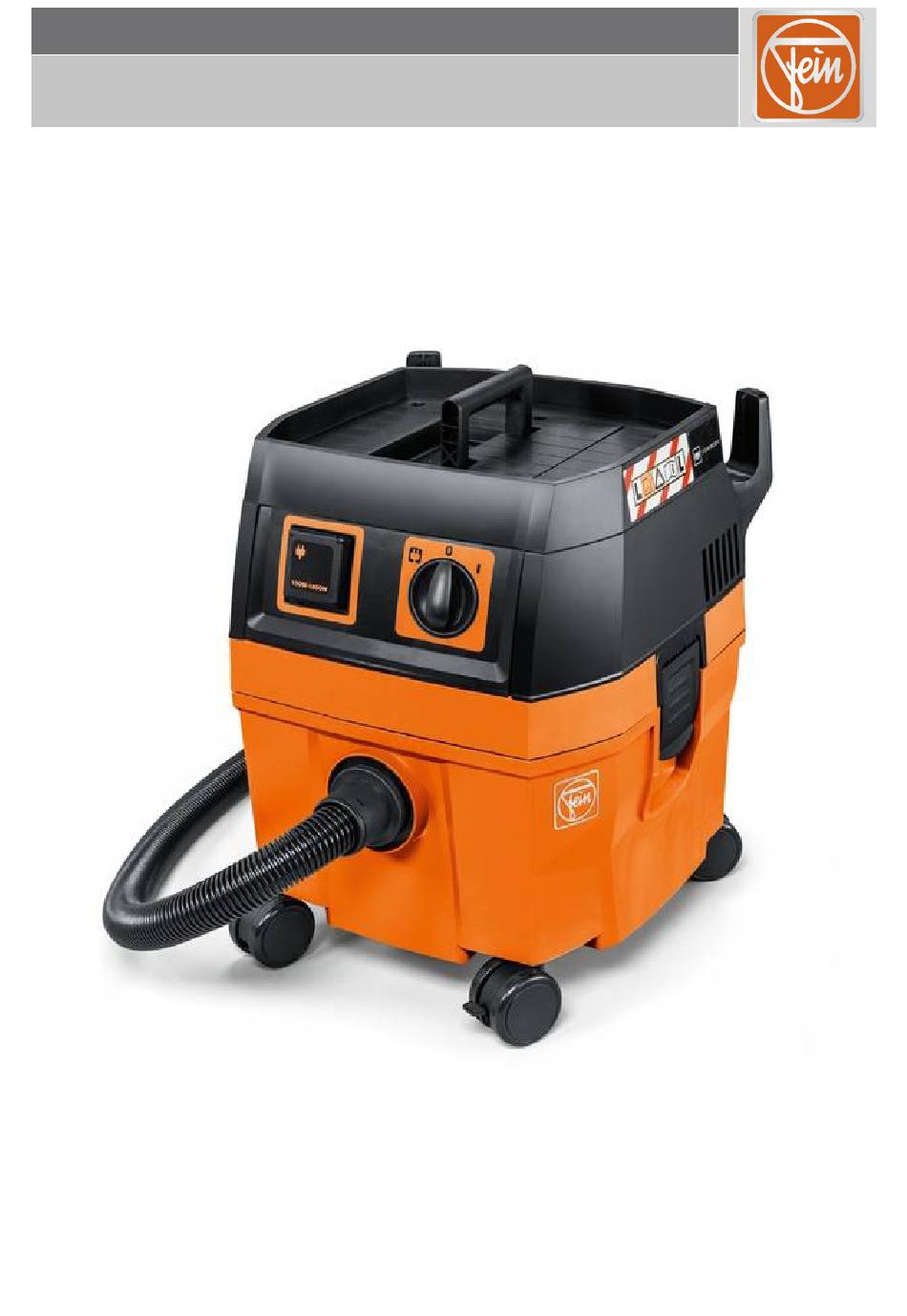

  • Page 1 Saugen Repair instructions Applies to: FEIN Dustex 25 L, FEIN Dustex 35 L, Turbo I, TURBO II with antistatic preparation...

  • Page 2: Table Of Contents

    Removing the electronics (Turbo I; Turbo II) ................15 Removing the housing ......................17 Removing the mains cable (FEIN Dustex 25 L; FEIN Dustex 35 L) .......... 20 Removing the mains cable (Turbo I; Turbo II) ................21 Removing the motor ......................... 22 Removing the base plate ......................
  • Page 3 Fitting the cover ........................44 10 Inspection following repairs ......................45 C-SC_CSSM Version 1.0 10.12.2019 Page 3 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Models Described

    9 20 36 2 ..with antistatic preparation C-SC_CSSM Version 1.0 10.12.2019 Page 4 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 5: Technical Data

    Up-to-date test data for all devices can be found in the FEIN electronic information system. Special tools, lubricants and auxiliary substances The special tools catalogue and the lubricants and container sizes available from FEIN can be found in the FEIN electronic information system.

  • Page 6: Symbols Used

    Part of the navigation interface. C-SC_CSSM Version 1.0 10.12.2019 Page 6 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 7: Notes And Requirements

    C. & E. Fein GmbH assumes no responsibility for the completeness, relevance, quality or correctness of the information provided. Liability claims against C. & E. Fein GmbH that relate to material or immaterial damage caused by the use or failure to use the information provided or by the use of incorrect or incomplete information are excluded.

  • Page 8: Safety Instructions

    Measure that must be taken in order to avoid this danger. C-SC_CSSM Version 1.0 10.12.2019 Page 8 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 9 NFORMATION C-SC_CSSM Version 1.0 10.12.2019 Page 9 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 10: Tools, Lubricants And Auxiliary Substances Required

    Special tools Assembly aid 64122121010 Pressure gauge 64108010010 Lubricants and auxiliary substances required No lubricants and auxiliary substances are required for assembly the FEIN Dustex 25L/Turbo I and FEIN Dustex 35L/Turbo II machines. C-SC_CSSM Version 1.0 10.12.2019 Page 10 of 45 All rights reserved by FEIN, especially in case of property rights applications.

  • Page 11: Test And Diagnostics Options

    Check the fill level regularly. C-SC_CSSM Version 1.0 10.12.2019 Page 11 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 12: Disassembly

    Lift up the two hooks (6). Remove the holder (7). C-SC_CSSM Version 1.0 10.12.2019 Page 12 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 13: Removing The Operating Element

    The operating element can be damaged by excessive force. Press out the rotary knob carefully. C-SC_CSSM Version 1.0 10.12.2019 Page 13 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 14: Removing The Electronics (Fein Dustex 25 L; Fein Dustex 35 L)

    Saugen Disassembly Removing the electronics (FEIN Dustex 25 L; FEIN Dustex 35 L) Steps that must be completed: Remove the cover Removing the operating element Damage from electrostatic charge. Failure to comply with the safety regulations for ESD protection may cause damage to the electronics.

  • Page 15: Removing The Electronics (Turbo I; Turbo Ii)

    Remove the cover (1). Remove the plug (2). Remove the electronics (3). C-SC_CSSM Version 1.0 10.12.2019 Page 15 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 16 8.4 Removing the electronics (Turbo I; Turbo II) Remove the housing (1). C-SC_CSSM Version 1.0 10.12.2019 Page 16 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 17: Removing The Housing

    Remove the two filters (1). Remove the cables (2). Remove the cable (3). C-SC_CSSM Version 1.0 10.12.2019 Page 17 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 18 Unscrew the M4x12 screw (3). Remove the distributor (4). Remove the nut (5). C-SC_CSSM Version 1.0 10.12.2019 Page 18 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 19 (2). Remove the seal (3). Remove the seal (4). C-SC_CSSM Version 1.0 10.12.2019 Page 19 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 20: Removing The Mains Cable (Fein Dustex 25 L; Fein Dustex 35 L)

    Saugen Disassembly Removing the mains cable (FEIN Dustex 25 L; FEIN Dustex 35 L) Unscrew the two screws (1). Remove the clamp (2). Remove the cable (3). C-SC_CSSM Version 1.0 10.12.2019 Page 20 of 45 All rights reserved by FEIN, especially in case of property rights applications.

  • Page 21: Removing The Mains Cable (Turbo I; Turbo Ii)

    Remove the clamp (1). Unscrew the two screws (2). C-SC_CSSM Version 1.0 10.12.2019 Page 21 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 22: Removing The Motor

    Remove the motor bracket ring (3). Remove the ferrite ring (4). C-SC_CSSM Version 1.0 10.12.2019 Page 22 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 23 8.8 Removing the motor Remove the seal (1). Remove the seal (2). C-SC_CSSM Version 1.0 10.12.2019 Page 23 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 24: Removing The Base Plate

    Remove the filter (3). Unscrew the two sensors (4). C-SC_CSSM Version 1.0 10.12.2019 Page 24 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 25 Remove the contact spring (6). Remove the seal (7). C-SC_CSSM Version 1.0 10.12.2019 Page 25 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 26: Removing The Container

    Remove the four rollers (1). Remove the holder (2). C-SC_CSSM Version 1.0 10.12.2019 Page 26 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 27: Assembly

    Position the holder (1). Fit the four rollers (2). C-SC_CSSM Version 1.0 10.12.2019 Page 27 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 28: Fitting The Earth Contact

    5 mm inner diameter Rubber hammer Position the earth contact (1). C-SC_CSSM Version 1.0 10.12.2019 Page 28 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 29: Fitting The Base Plate

    Position the housing (6). NFORMATION The clips (7) click audibly into place. C-SC_CSSM Version 1.0 10.12.2019 Page 29 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 30 Position the two inserts (5). Position the filter (6). C-SC_CSSM Version 1.0 10.12.2019 Page 30 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 31: Fitting The Motor

    Wrap the cable (3) around the ferrite ring twice. C-SC_CSSM Version 1.0 10.12.2019 Page 31 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 32 Align the recess (3) on the arrow (4). Connect the two cables (5). C-SC_CSSM Version 1.0 10.12.2019 Page 32 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 33 Connect the two plugs (2). NFORMATION Ensure that the connection diagram is observed. C-SC_CSSM Version 1.0 10.12.2019 Page 33 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 34: Fitting The Mains Cable (Fein Dustex 25 L; Fein Dustex 35 L)

    Saugen Assembly Fitting the mains cable (FEIN Dustex 25 L; FEIN Dustex 35 L) Position the cable. Position the clamp (1). Screw in the two screws (2). Place the cable in the guide. C-SC_CSSM Version 1.0 10.12.2019 Page 34 of 45 All rights reserved by FEIN, especially in case of property rights applications.

  • Page 35: Fitting The Mains Cable (Turbo I; Turbo Ii)

    Screw in the two screws (2). Place the cable in the guide. C-SC_CSSM Version 1.0 10.12.2019 Page 35 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 36: Fitting The Housing

    Screw in the M4x12 mm screw (2). Screw in the nut (3). C-SC_CSSM Version 1.0 10.12.2019 Page 36 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 37 Position the insert (3). Screw in the four lock washers (4). C-SC_CSSM Version 1.0 10.12.2019 Page 37 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 38 Insert the cable (4). NFORMATION Ensure that the connection diagram is observed. C-SC_CSSM Version 1.0 10.12.2019 Page 38 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 39: Fitting The Electronics (Fein Dustex 25 L; Fein Dustex 35 L)

    Saugen Assembly Fitting the electronics (FEIN Dustex 25 L; FEIN Dustex 35 L) Steps that must be completed: Fit the base plate Fit the motor Fit the mains cable Fit the housing Damage from electrostatic charge. Failure to comply with the safety regulations for ESD protection may cause damage to the electronics.

  • Page 40: Fitting The Electronics (Turbo I; Turbo Ii)

    Ensure that the connection diagram is observed. Insert the electronics (3). C-SC_CSSM Version 1.0 10.12.2019 Page 40 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 41 9.10 Fitting the electronics (Turbo I; Turbo II) Position the cover (1). C-SC_CSSM Version 1.0 10.12.2019 Page 41 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 42: Fitting The Operating Element

    Connect the cables (6). NFORMATION Ensure that the connection diagram is observed. C-SC_CSSM Version 1.0 10.12.2019 Page 42 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 43 Position the operating element (1). NFORMATION Pay attention to the cable guide. C-SC_CSSM Version 1.0 10.12.2019 Page 43 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 44: Fitting The Cover

    Screw in the three screws (4). Screw in the four screws (5). C-SC_CSSM Version 1.0 10.12.2019 Page 44 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 45: Inspection Following Repairs

    Check filter cleaning system Intake flow monitoring present: Check intake flow monitoring C-SC_CSSM Version 1.0 10.12.2019 Page 45 of 45 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
