Page 1: Pocket Pulsar
POCKET PULSAR Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2019... -
Page 2: Table Of Contents
Sound Active Mode Slave Mode DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick Lesson On DMX Keeping Your Pocket Pulsar™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 3: Getting Started
Congratulations on purchasing one way cool, way original fat beam R/G/B laser system! Now that you’ve got your Pocket Pulsar™, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/ country of use. Page 4 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 5: Meet The Pocket Pulsar
2. MEET THE POCKET PULSAR™ MAIN FEATURES • 100mW, 650nm red laser • 50mW, 532nm green laser • 150mW, 450nm blue laser • Built-in automatic & sound active programs • Micro-step wide angle scanning motor • Durable blue aluminum casing w/mounting bracket •... -
Page 6: The Pocket Pulsar™ Pin-Up Picture

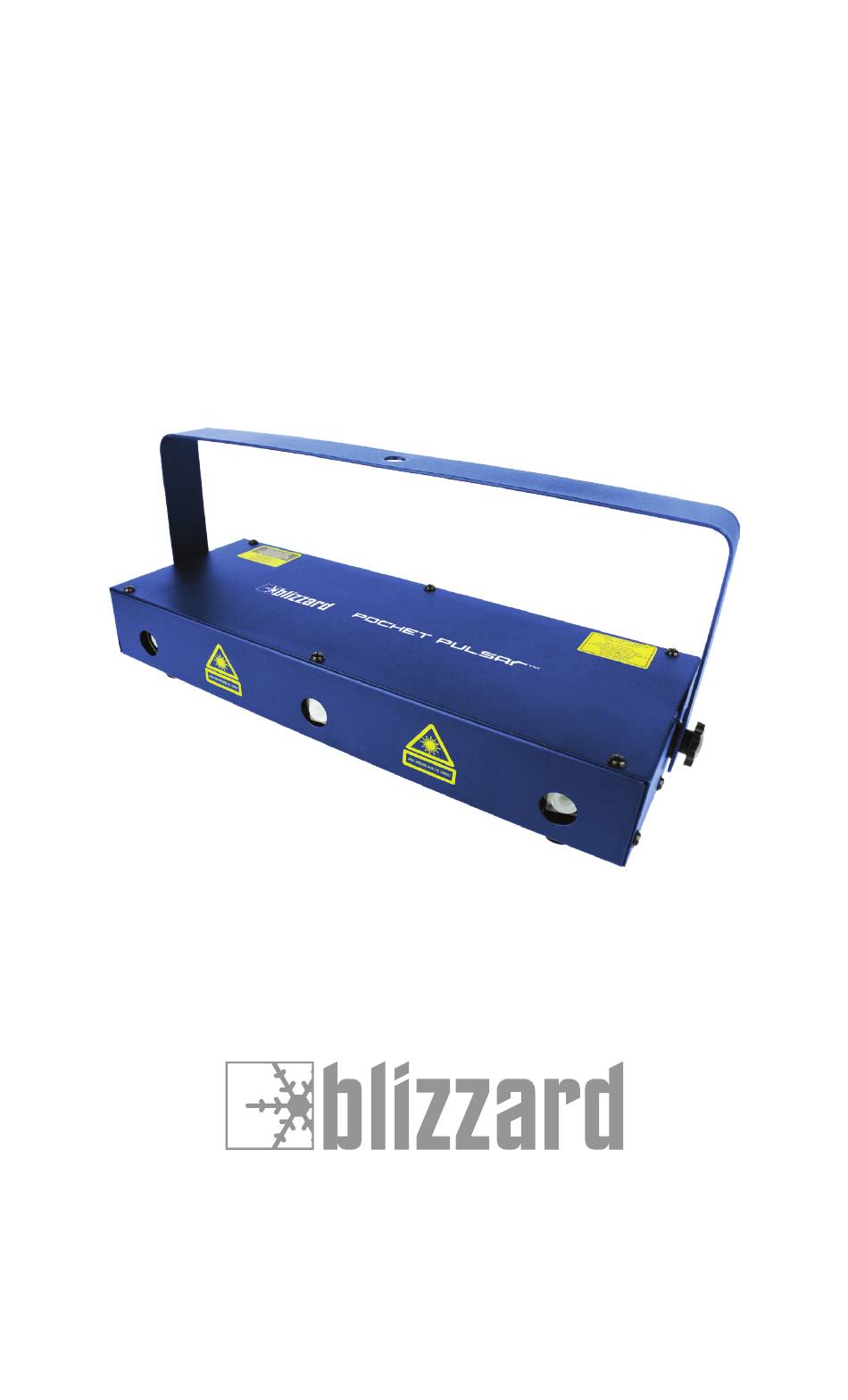

Figure 1: The Pocket Pulsar™ Pin-Up Picture Mounting Bracket with Locking Knobs Laser Outputs (Apertures) Figure 2: The Rear Connections Fuse Cooling Fan Power In DMX In Cooling Fan 4-Button Power Switch Control Panel DMX Out Page 6 Pocket Pulsar™ Manual Rev. A... -
Page 7: Setup
Reattach the fuse holder, and then reconnect power. Connecting A Bunch of Pocket Pulsar™ Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode. -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the features and different modes possible with the Pocket Pulsar™ are ac- cessed by using the LED control panel. There are 4 control buttons below the display which allow you to navigate through the various control panel menus. -
Page 11: Control Panel Menu Structure
2.) The fixture will now run in sound active mode. 3.) For mic sensitivity, navigate the menu to SEnS, and press <ENTER>. 4.) Highlight a level ranging from 0% to 100%, and press <ENTER>. Page 11 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 12: Dmx Channel Values In-Depth
Use Only DMX Cables, install a Terminator. Responding Er- Check all cables for defects. ratically Reset fixture(s). If your problem persists or isn’t listed, please open a support ticket online at: www.blizzardpro.com/support. Page 12 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 13: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 13 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 14: Keeping Your Pocket Pulsar™ As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 Pocket Pulsar™ Manual Rev. A © 2019 Blizzard Lighting, LLC... -
Page 15: Tech Specs
