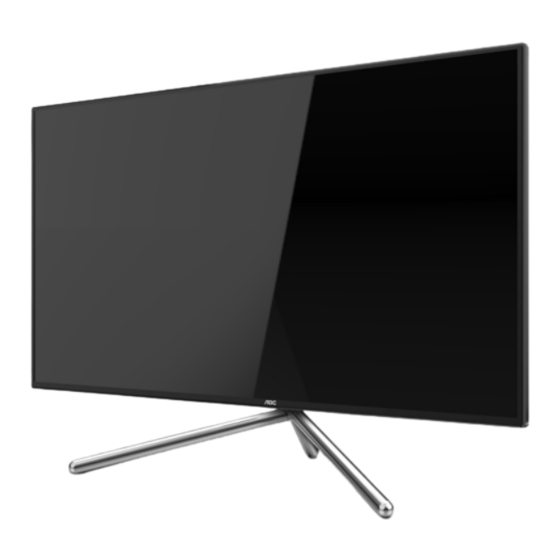

- Page 1 LCD Monitor User Manual U32U1 LED backlight www.aoc.com ©2019 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 HDR .................................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
CD Manual Warranty card Power Cable Adapter HDMI Cable DP Cable USB Cable Not all signal cables (DP, HDMI, USB cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 120mm 30°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 5 6 7 1. HDMI-1 2. HDMI-2 3. DP 4. Audio out 5. USB-C 6. USB upstream 7. Power 8. USB3.2 Gen1 downstream + fast charging(BC1.2) 9. USB3.2 Gen1 downstream Connect to PC 1. -
Page 12: Hdr
It is compatible with input signals in HDR 600 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 13: Adjusting
Adjusting Hotkeys Source/Up Eco/DCR/Down Clear Vision/Left Volume/Right Power/Menu/Enter Menu/Enter/Power When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor. Volume/Right When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume. Source/Up When the OSD is closed, press Source/Up button will be Source hot key function. - Page 14 Clear Vision 1. When there is no OSD, Press the “Left” button to activate Clear Vision. 2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. 3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 15: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 16 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 17: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Image Setup Color Setup Picture Boost Extra OSD Setup Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). Follow Key Guide to move or select (adjust) OSD settings 3). -
Page 18: Luminance
Luminance Luminance Contrast Brightness Gamma Gamma1 Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Gamma1 Adjust to Gamma 1 Gamma Gamma2 Adjust to Gamma 2 Gamma3 Adjust to Gamma 3 Off/On Disable/ Enable dynamic contrast ratio Note: When “HDR/HDR Mode”... -
Page 19: Image Setup
Image Setup Image Setup ECO Mode Standard Overdrive Exit Enter Select Off / Select HDR Mode. DisplayHDR / Note: HDR/HDR Mode HDR Picture / When HDR is detected, the HDR option is displayed for HDR Movie / adjustment. When HDR is not detected, the HDR Mode HDR Game option is displayed for adjustment. -
Page 20: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Saturation Exit Enter Select... - Page 21 Multimedia Decrease the blue light ratio by controlling color Internet temperature. LowBlue Mode Office Remark: Only Reading mode is certified to meet the requirements of TÜV Rheinland’s “Low Blue Reading Light Content” standards. Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM.
-
Page 22: Picture Boost
Picture Boost Picture Boost Bright Frame Frame Size Brightness Contrast H. Position V. Position Exit Enter Select Bright Frame On or Off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. -
Page 23: Extra
Extra Extra Input Select Auto Off Timer Image Ratio Wide DDC/CI Reset Resolution:1920(H)x1080(V) SDR H.Frequency:67 KHz V.Frequency:60 Hz Exit Enter Select Input Select Select Input Signal Source Off timer 0-24hrs Select DC off time Wide / 4:3 / 1:1 / Movie1 Image Ratio Select image ratio for display. -
Page 24: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability H.Position V.Position Transparence Break Reminder USB Selection Auto Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2/DP1.4 support HDR DP Capability 1.1/1.2/1.4 function. -
Page 25: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 26: Drivers
(Screen+) Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7. -
Page 27: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 28: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 29: Specification
Specification General Specification Model name U32U1 Driving system TFT Color LCD Viewable Image Size 80.0 cm diagonal Panel Pixel pitch 0.18159mm(H) x 0.18159mm(V) Video HDMI lnterface & DP Interface Separate Sync. H/V TTL Display Color 1.07 Billion Horizontal scan range... -
Page 30: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188... -
Page 31: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 32: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
