6-26
Electrical Data

Connection Point of Equipment Grounding Conductor

Tightening Torque
DANGER
See also Project Planning Manual of drive system, chapter "System
Connections of the Components"
1: joint bar

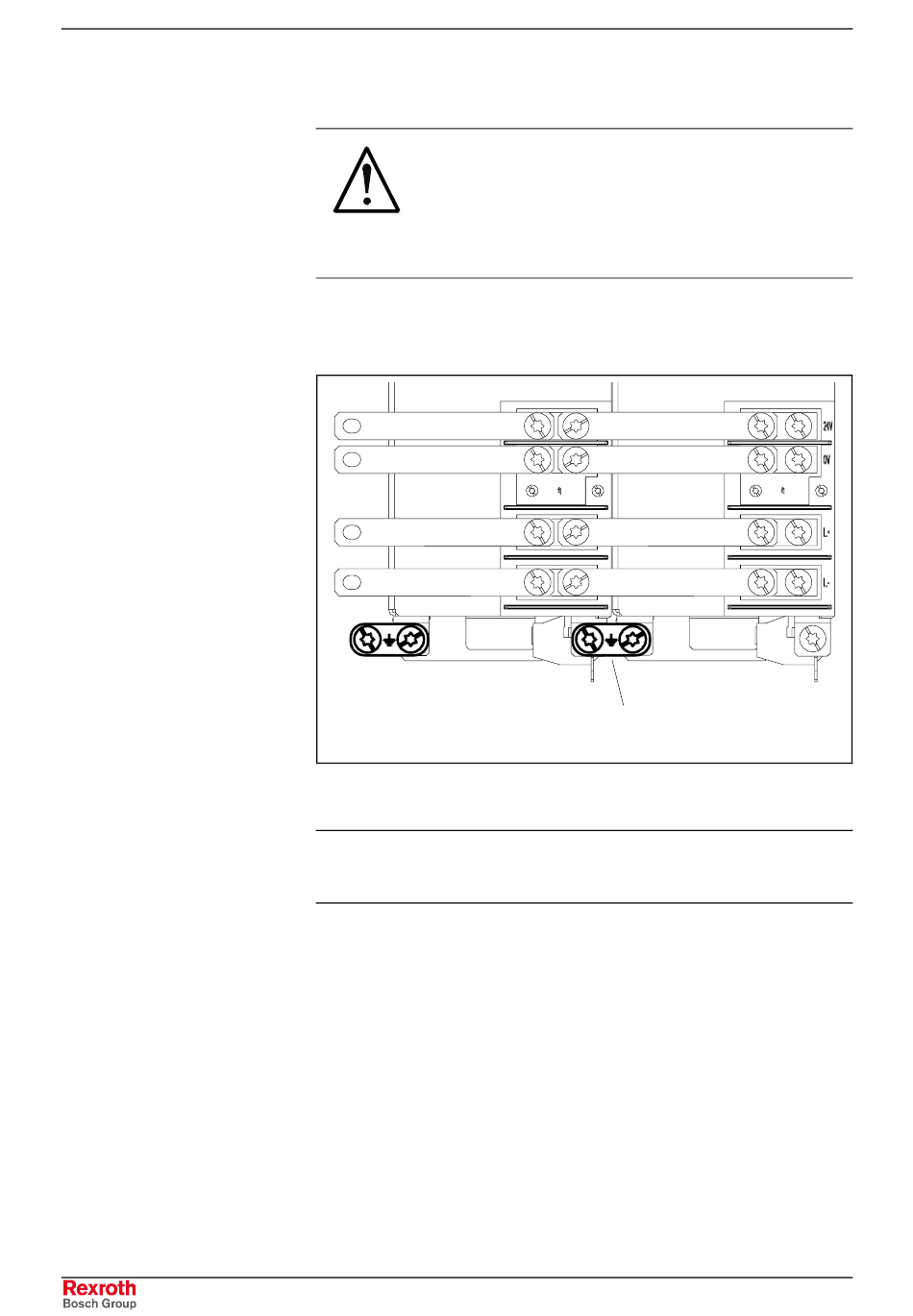

Fig. 6-42: Equipment grounding connection to neighboring device
Note: Cables used for connection of the equipment grounding
conductor must have a cross section of at least 10 mm
(however not smaller than the supply feeder cross section).
The joint bar is mounted by means of screws (M6 x 25).
Design
6 Nm
Lethal electric shock caused by live parts with
more than 50 V!
⇒ Connect the drive controller to the equipment
grounding system.
⇒ Via the joint bar on the front connect the drive
controller to the neighboring drive controller.
Rexroth IndraDrive C HCS03.1
1
masseanschluss_frontf2
DOK-INDRV*-HCS03.1****-PR02-EN-P
