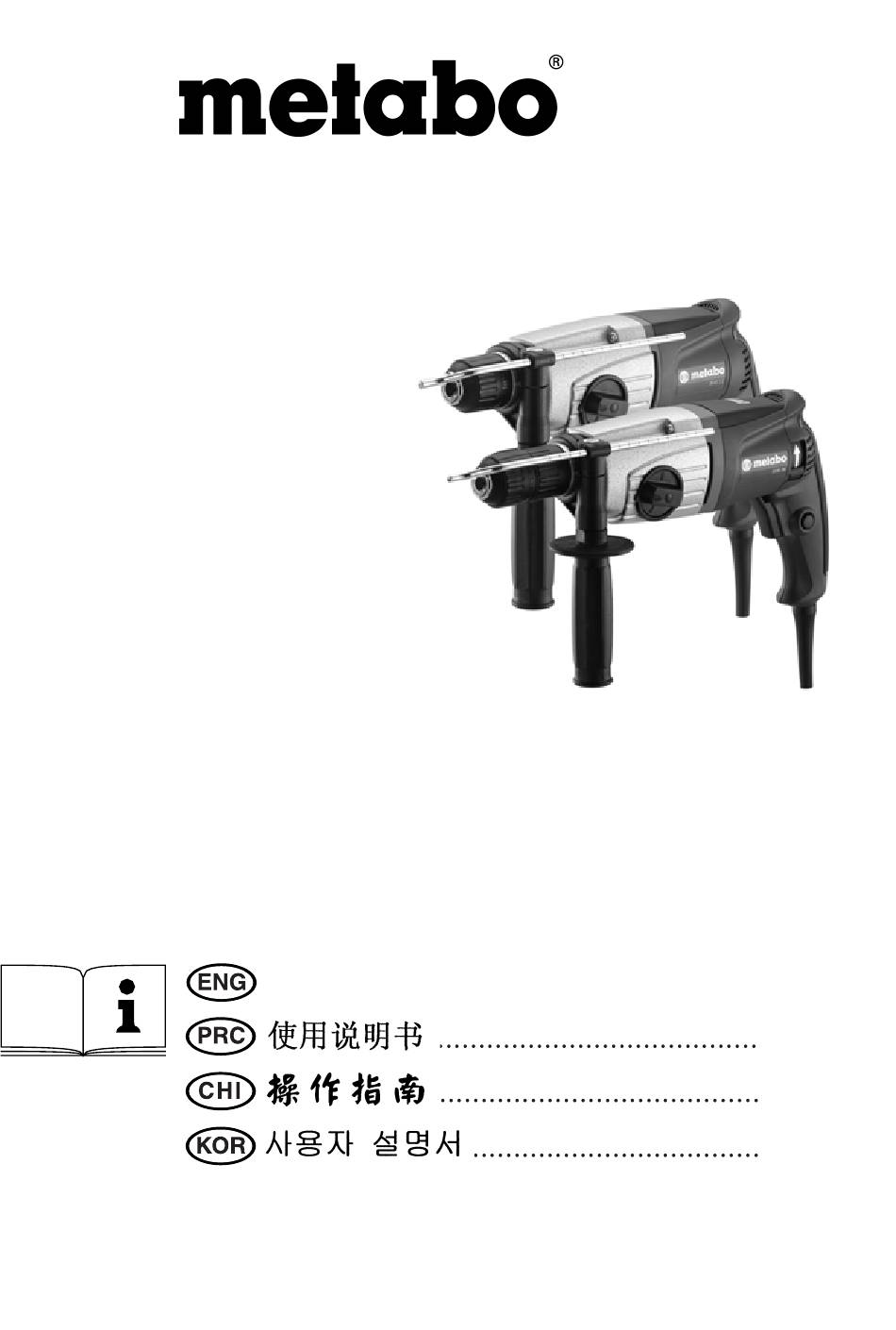

  • Page 1 Made in Germany BHE 22 BHE 24 BHE 26 KHE 24 SP KHE 26 KHE 28 KHE 26 Contact Operating Instructions .... page 170 24 8660 - 0706...
  • Page 2 1010 120V /min 0-1000 0-1000 0-1000 0-1000 0-1000 0-1050 0-1000 /min 1000 1000 1000 ø max. /min. s max. 4600 4600 4600 4600 4600 4830 4600 0-1,6 0-1,8 0-2,3 0-1,8 0-2,3 0-2,3 0-2,5 ø max. ø max. ø max. dB(A) dB(A) EN 50144, EN 50 144,...
  • Page 3 BHE 26 BHE 22 KHE 26 BHE 24 KHE 28 KHE 26 Contact KHE 24 SP 10 11 BHE 22 BHE 22 BHE 24 KHE 24 SP KHE 24 SP...
  • Page 4 30 928 30 282 23 033 23 038 23 034 23 035 23 036 31 600...

  • Page 5: Table Of Contents

    Operating Instructions Dear Customer, Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo’s quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation.

  • Page 6: Overview

    Loosen the side handle (17). Set depth stop (7) to (not BH 20, BHE 20): (not BHE 22, BHE 24, KHE 24 SP) the desired drilling depth and retighten the side With a simple operation and without the need for handle.

  • Page 7: Speed Preselection (Khe 24 Contact) (Khe 26 Contact)

    The speed can be changed at the trigger Drill chuck change (not BH20, BHE 20) (not BHE 22, BHE 24, KHE 24 SP) This machine has an electronic soft start When changing chucks make sure that For continuous operation the trigger can be locked the spindle is clean.

  • Page 8: Tool Change With Sds Chuck

    Tool change with Futuro Plus keyless 10 Tips and Tricks chuck (not BH 20, BHE 20) (not BHE 22, BHE 24, KHE 24 SP) Only moderate pressure is required for hammer drilling and chiselling. Exerting a high force does not increase performance.

  • Page 9: Trouble Shooting

    ONLY! tolerances (as specified in the respective current standards). Any Metabo power tool in need of repair can be sent to one of the addresses listed in the spare parts list. Please attach a description of the fault to the...
  • Page 10 BHE 22 BHE 24 BHE 26 KHE 24 SP KHE 26 KHE 28 KHE 26 Contact...
  • Page 12 BHE 22, BHE 24, KHE 24 SP): (KHE 26, KHE 28, KHE 26 Contact, KHE 24 SP): (BHE 26, KHE 26, KHE 28): (KHE 26 Contact):...
  • Page 13 BHE 22, BHE 24, KHE 24 SP) (KHE 26 Contact) (KHE 26, KHE 28, KHE 26 Contact, KHE 24 SP)
  • Page 14 (KHE 26 Contact) BHE 22, BHE 24, KHE 24 SP)
  • Page 15 E CODE! Key (BHE 26, KHE 26, KHE 28)
  • Page 16 Ø...
  • Page 17 BHE 22 BHE 24 BHE 26 KHE 24 SP KHE 26 KHE 28 KHE 26 Contact BHE 22 BHE 24 BHE 26 KHE 24 KHE 26 KHE 28 KHE 26 CONTACT 110 V 110 V 110 V 110 V 110 V...
  • Page 18 (KHE 26 Contact) BHE 22, BHE 24, KHE 24 SP) (KHE 26 Contact)
  • Page 19 BHE 22, BHE 24, KHE 24 SP) BHE 22, BHE 24, KHE 24 SP) (KHE 26, KHE 28, KHE 26 Contact, KHE 24 SP) (BHE 26, KHE 26, KHE 28) (KHE 26 Contact) (KHE 26 Contact) (KHE 26, KHE 28, KHE 26 Contact, KHE 24 SP)
  • Page 20 BHE 22, BHE 24, KHE 24 SP) E. CODE! Key (KHE 26 Contact) (BHE 26, KHE 26, KHE 28)
  • Page 21 BHE 22, BHE 24, KHE 24 SP...
  • Page 22 BHE 22, BHE 24, KHE 24 SP...
  • Page 23 BHE 24, KHE 24 SP )
  • Page 24 BHE 22, BHE 24, KHE 24 SP...
  • Page 25 CODE! Key...

This manual is also suitable for:

Bhe 24Khe 24 spKhe 26Khe 28Khe 26 contactBhe 26
