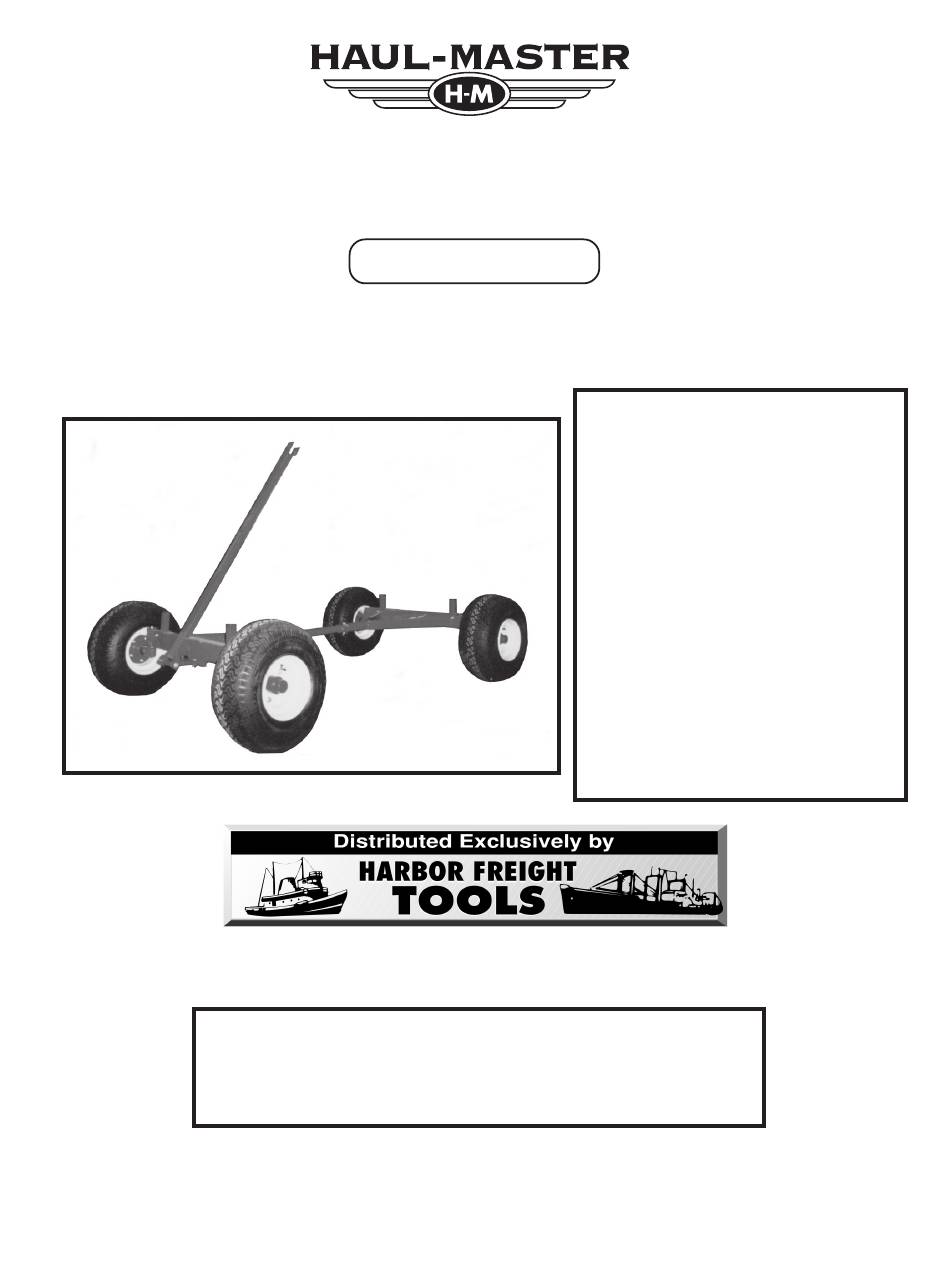

TRAILER RUNNING GEAR
(3,000 LBS. WEIGHT CAPACITY)
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http//www.harborfreight.com
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
©
Copyright 2005 by Harbor Freight Tools. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
MODEL 92696
TO PREVENT SERIOUS INJURY,
IMPORTANT INFORMATION
This trailer's Pull Rod (18) MUST be
properly secured to the hitch of the towing
vehicle. After assembly and attachment, check
to make sure the Hitch Pin is properly installed.
There must be no play between the
hitch and Pull Rod. If there is play,
make the proper adjustments until no play is
present. Carefully read and follow
the complete instructions in this manual
BEFORE setup or use.
If the Pull Rod is not secured
properly, it could come loose
while the Trailer is in motion, possibly
causing property damage, SERIOUS
PERSONAL INJURY, or DEATH.
®
WARNING!
®
Advertisement
Table of Contents
Related Manuals for Harbor Freight Tools HAUL-MASTER 92696
Summary of Contents for Harbor Freight Tools HAUL-MASTER 92696
- Page 1 AND INSTRUCTIONS BEFORE USE. © ® Copyright 2005 by Harbor Freight Tools. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
-
Page 2: Product Specifications
When unpacking, make sure all the parts and hardware shown on the Parts List (page 10) are included. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible. -
Page 3: Work Area
Use eye protection. Wear ANSI approved safety impact eye goggles when assembling this product. ANSI approved safety impact eye goggles are available from Harbor Freight Tools. Dress safey. Do not wear loose clothing or jewelry, as they can become caught in moving parts. -
Page 4: Specific Product Warnings And Precautions
replacement parts. Maintain this product with care. Keep this product clean and dry for better and safer performance. Maintenance: For your safety, service and maintenance should be performed regularly by a qualified technician. Use the right equipment for the job. Do not attempt to force small equipment to do the work of larger industrial equipment. - Page 5 Trailer and its contents, and the towing vehicle. Maintain labels and nameplates on the Trailer. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement. Trailer licensing notice: Some states may consider this Trailer to be a vehicle requiring registration, licensing, and titling.
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS NOTE: For additional references to the parts listed on the following pages, refer to the Assembly Diagram (page 10). To Attach The Pull Rod: Attach the Pull Rod (18) to the Hinge located at the front section of the Front Frame (14), using the Bolt (15), Flat Washer (16), and Nut (17). - Page 7 trailer bed onto the Trailer frame. The trailer bed must be securely attached to the Trailer frame, using appropriate hardware (not included). The weight and size of the trailer bed must be evenly proportioned when attached onto the Trailer frame. The trailer bed must be level, flat, and sturdy enough to handle the weight carried (total weight of payload plus trailer bed not to exceed 3,000 Lbs.).
-
Page 8: Operating Instructions
mounting area on the rear of the towing vehicle (i.e., rear bumper, frame). (See Figure A.) Make sure the Safey Chain is long enough so as not to impead the turning radius of the Trailer, but do not allow the Safety Chain to touch the ground. (See Figure A.) TOWING VEHICLE’S HITCH HITCH PIN (NOT INCLUDED) -
Page 9: Inspection, Maintenance, And Cleaning
INSPECTION, MAINTENANCE, AND CLEANING NOTE: Maintenance may be different based on your local conditions, type of trailer, and frequency of trailer use. Before each use: Inspect the general condition of the Trailer. Check for misalignment or binding of moving parts, cracked or broken parts, and any other condition that may affect its safe operation. -
Page 10: Parts List & Assembly Diagram
PARTS LIST & ASSEMBLY DIAGRAM Part # Description Qty. Part # Description Qty. Wheel Front Frame Rear Frame Bolt (M12 x 125) Stop Bracket Flat Washer (12mm x 125) Bolt (M12 x 35) Nut (M12) Spring Washer (12mm) Pull Rod Flat Washer (12mm) Turning Brace Bolt (M8 x 75)
