NCR 7350-K120 Instructions Manual

NCR 7350-K120 Instructions Manual

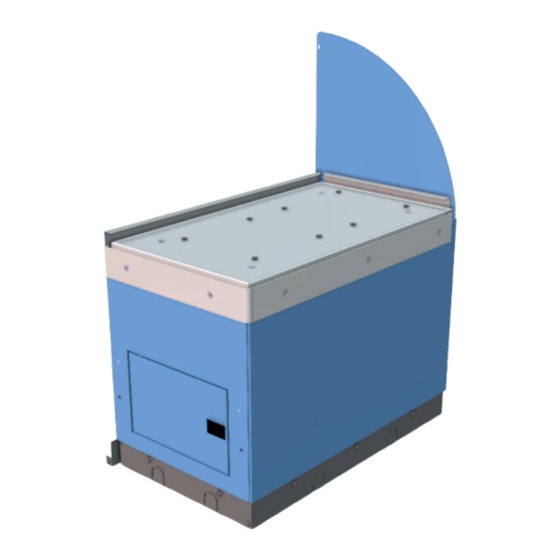

1-bag bagwell upgrade kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Kit Instructions
1-Bag Bagwell Upgrade
7350-K120/K121/K122/K123/K125/K962/K967
Issue C

Advertisement

Table of Contents
loading

Related Manuals for NCR 7350-K120

Summary of Contents for NCR 7350-K120

  • Page 1 Kit Instructions 1-Bag Bagwell Upgrade 7350-K120/K121/K122/K123/K125/K962/K967 Issue C...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Software screen images are representative, and in some cases, may not match a customer’s installed software exactly.
  • Page 3 Revision Record Issue Date Remarks Jan 2011 • First Issue • 50DR20059 Aug 2011 • Added steps on the removal and installation of stainless steel lower bumpers if included in the kit. • Added steps on the removal and installation of the rear frame support bracket.

  • Page 4: Table Of Contents

    1-Bag Bagwell Upgrade This publication provides procedures for installing a 1-Bag Bagwell to a 7350 NCR SelfServ™ Checkout. Kit Contents Depending on the color variant of the Bagwell, refer to the following sections for information about kit contents: • 7350–K120 1-Bag Bagging Area (G/11) on the next page.

  • Page 5: 7350-K120 1-Bag Bagging Area (G/11)

    1-Bag Bagwell Upgrade 7350–K120 1-Bag Bagging Area (G/11) Part Number Description 497-0526230 1-Bag Bagging Area (G/11) 795-0283401 1-Bag Door Assembly (G/11) 795-0137201 1-Bag Backsplash Panel (G/11) 795-0137101 1-Bag Front Panel (G/11)
  • Page 6 1-Bag Bagwell Upgrade Part Number Description 795-0133301 1-Bag Bagwell Side Panel (G/11) * 795-0281699 Hole Cover Label (G/11) 497-0466204 Skirt-Mini BOM Package 497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365 1-Bag Backsplash Side Plastic Deflector...

  • Page 7: 7350-K121 1-Bag Bagging Area (Battleship Gray)

    1-Bag Bagwell Upgrade 7350-K121 1-Bag Bagging Area (Battleship Gray) Part Number Description 497-0526234 1-Bag Bagging Area (Battleship Gray) 795-0283416 1-Bag Door Assembly (Battleship Gray) 795-0137216 1-Bag Backsplash Panel (Battleship Gray) 795-0137116 1-Bag Front Panel (Battleship Gray)
  • Page 8 1-Bag Bagwell Upgrade Part Number Description 795-0133316 1-BagBagwell Side Panel (Battleship Gray) * 795-0281616 Hole Cover Label (Battleship Gray) 497-0466204 Skirt-Mini BOM Package 497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365...

  • Page 9: 7350-K122 1-Bag Bagging Area (Ral9001 Cream)

    1-Bag Bagwell Upgrade 7350-K122 1-Bag Bagging Area (RAL9001 Cream) Part Number Description 497-0526232 1-Bag Bagging Area (RAL9001 Cream) 795-0283409 1-Bag Door Assembly (RAL 9001 Cream) 795-0137209 1-Bag Backsplash Panel (RAL 9001 Cream) 795-0137109 1-Bag Front Panel (RAL 9001 Cream)
  • Page 10 1-Bag Bagwell Upgrade Part Number Description 795-0133309 1-Bag Bagwell Side Panel (RAL 9001 Cream) * 795-0281609 Hole Cover Label (RAL 9001 Cream) 497-0466204 Skirt-Mini BOM Package 497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365...

  • Page 11: 7350-K123 1-Bag Bagging Area (Coles Silver)

    1-Bag Bagwell Upgrade 7350-K123 1-Bag Bagging Area (Coles Silver) Part Number Description 497-0526233 1-Bag Bagging Area (Coles Silver) 795-0283413 1-Bag Door Assembly (Coles Silver) 795-0137213 1-Bag Backsplash Panel (Coles Silver) 795-0137113 1-Bag Front Panel (Coles Silver)
  • Page 12 1-Bag Bagwell Upgrade Part Number Description 795-0133313 1-Bag Bagwell Side Panel (Coles Silver) * 795-0281613 Hole Cover Label (Coles Silver) 497-0466204 Skirt - Mini BOM Package 497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365...

  • Page 13: 7350-K125 1-Bag Bagging Area (Walmart Blue)

    1-10 1-Bag Bagwell Upgrade 7350-K125 1-Bag Bagging Area (Walmart Blue) Part Number Description 497-0526495 1-BagBagging Area (Walmart Blue) 795-0283412 1-Bag Door Assembly (Walmart Blue) 795-0137212 1-Bag Backsplash Panel (Walmart Blue) 795-0137112 1-Bag Front Panel (Walmart Blue)
  • Page 14 1-Bag Bagwell Upgrade 1-11 Part Number Description 795-0133312 1-Bag Bagwell Side Panel (Walmart Blue) * 795-0117112 Hole Cover Label (Walmart Blue) 497-0466204 Skirt - Mini BOM Package 497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0457365 1-Bag Backsplash Side Plastic Deflector 497-0455519...

  • Page 15: 7350-K962 1-Bag Bagging Area (Ral 7021 Black)

    1-12 1-Bag Bagwell Upgrade 7350-K962 1-Bag Bagging Area (RAL 7021 Black) Part Number Description 497-0526231 1-Bag Bagging Area (RAL 7021 Black) 795-0283407 1-Bag Door Assembly (RAL 7021 Black) 795-0137207 1-Bag Backsplash Panel (RAL 7021 Black) 795-0137107 1-Bag Front Panel (RAL 7021 Black)
  • Page 16 1-Bag Bagwell Upgrade 1-13 Part Number Description 795-0133307 1-Bag Bagwell Side Panel (RAL 7021 Black) * 795-0281607 Hole Cover Label (RAL 7021 Black) 497-0466204 Skirt - Mini BOM Package 497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365...

  • Page 17: 7350-K967 1-Bag Bagging Area (Dark Red)

    1-14 1-Bag Bagwell Upgrade 7350-K967 1-Bag Bagging Area (Dark Red) Part Number Description 497-0526235 1-Bag Bagging Area (Dark Red) 795-0283418 1-Bag Door Assembly (Dark Red) 795-0137218 1-Bag Backsplash Panel (Dark Red) 795-0137118 1-Bag Front Panel (Dark Red)
  • Page 18 1-Bag Bagwell Upgrade 1-15 Part Number Description 795-0133318 1-Bag Bagwell Side Panel (Dark Red) * 795-0281618 Hole Cover Label (Dark Red) 497-0466204 Skirt - Mini BOM Package 497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly 497-0472267 1-Bag Scale Tray with Bag Rack Hardware 497-0467814 Scale Controller and Pods Assembly 497-0457365...
  • Page 19 1-16 1-Bag Bagwell Upgrade Installation Procedures Installing the Bagwell upgrade involves the following procedures: • Removing Existing Bagwell on the facing page. • Changing Bagwell Orientation on page 22. Note: This procedure may be optional. • Installing New Bagwell on page 28. •...
  • Page 20 1-Bag Bagwell Upgrade 1-17 Removing Existing Bagwell To remove an existing 1-Bag Bagwell, follow these steps: Note: To remove a 2-Bag Bagwell refer to 7350-K140/K141/K142/K143/K145/K964 2-Bag Bagwell Upgrade. To remove a 3-Bag Bagwell refer to 7350-K160/K162/K164/K165/K996 3-Bag Bagwell Upgrade. 1. Detach the Scale Tray from the Bagwell by removing four (4) flat head screws. Note: Remove bag racks if present.
  • Page 21 1-18 1-Bag Bagwell Upgrade 2. Remove the clear plastic deflectors from the Backsplash and side of the Core. Note: Leave the Core side deflector in its place if the new Bagwell is attached on the same side. Note: The 7350-K125 (Walmart Blue) variant does not have plastic deflectors and bumpers.
  • Page 22 1-Bag Bagwell Upgrade 1-19 3. Disconnect the following cables: Note: The 7350-K125 (Walmart Blue) variant uses Top Spacer Brackets instead of a Scale Controller and Scale Pods. • USB Power Cable from the Scale Controller • Local Area Network (LAN) Cable from the Customer Interface •...
  • Page 23 1-20 1-Bag Bagwell Upgrade 5. Remove the upper rear screw attaching the Backsplash to the Core. 6. Remove the Bagwell by doing the following: a. Remove the two (2) bottom screws attaching the Bagwell to the Core. Screws are located on either side of power strip.
  • Page 24 1-Bag Bagwell Upgrade 1-21 b. Loosen the two (2) upper screws, but do not remove. c. Lift Bagwell up and away from Core. The upper screw heads will pass through the key holes in the Bagwell side support. Note: The two (2) upper screws may be left in place if a new Bagwell will be installed in the same orientation.
  • Page 25 1-22 1-Bag Bagwell Upgrade Changing Bagwell Orientation To change the Bagwell from right hand to left hand orientation, follow these steps: Note: These steps should be done before attaching the Bagwell to the Core. 1. Detach the Scale Tray from the Bagwell by removing four (4) flat head screws.
  • Page 26 1-Bag Bagwell Upgrade 1-23 2. Remove the bumpers by doing the following: Note: Do not remove the front access door bumper. Note: The 7350-K125 (Walmart Blue) variant does not have plastic deflectors and bumpers. a. Detach the lower-rear bumper from the Bagwell by removing two (2) flat head screws.
  • Page 27 1-24 1-Bag Bagwell Upgrade b. Detach the Backsplash from the Bagwell by removing four (4) flat head screws. c. Detach the upper bumper from the Bagwell by removing five (5) flat head screws and spacers, as shown in the image below.
  • Page 28 1-Bag Bagwell Upgrade 1-25 d. Detach the wrap-around side bumper by removing three (3) flat head screws and spacers, as shown in the image below. 3. Remove two (2) nuts securing the front panel to the Bagwell frame located at the inside corner posts.
  • Page 29 1-26 1-Bag Bagwell Upgrade 4. Pull down the front panel and then pull out to disengage from the slots in the Bagwell frame base, as shown in the image below. 5. Install the front panel on the opposite side of the Bagwell and secure it with two (2) nuts.

  • Page 30: On The Next Page

    1-Bag Bagwell Upgrade 1-27 6. Install the bumpers to the Bagwell by doing the following: Note: Do not reinstall Scale Tray, Backsplash panel, and rear lower bumper (if present). For more information, refer to Installing New Bagwell on the next page. a.
  • Page 31 1-28 1-Bag Bagwell Upgrade Installing New Bagwell To install the new Bagwell, follow these steps: Note: If changing the Bagwell orientation (Left-Hand or Right-Hand), ensure that the orientation is changed before installing the new Bagwell to the Core. 1. Remove the Scale Tray from the Bagwell. 2.
  • Page 32 1-Bag Bagwell Upgrade 1-29 3. Lower all the leveling feet of the Bagwell slightly beyond the height of the casters to assist in lining up the Core and the Bagwell mounting holes. 4. Install the new Backsplash panel using four (4) screws.
  • Page 33 1-30 1-Bag Bagwell Upgrade 5. If not already present, partially thread the two (2) upper screws on the Bagwell side of the Core. Leave approximately ¼ inch of the threads exposed. 6. Mate the new Bagwell to the Core by lifting the frame up and over the partially threaded screws.
  • Page 34 1-Bag Bagwell Upgrade 1-31 7. Tighten the two (2) screws and install the two (2) lower screws that connect the Bagwell and the Core. 8. Install the upper rear screw attaching the Backsplash panel to the Core. Note: Adjust the leveling feet if the slot does not line up well.

  • Page 35: On Page

    1-32 1-Bag Bagwell Upgrade 9. If present, install rear lower bumper using two (2) plastic spacers and two (2) flat head screws on the Backsplash. 10. Route the following cables through the cable access hole: Note: The 7350-K125 (Walmart Blue) variant uses Top Spacer Brackets instead of a Scale Controller and Scale Pods.
  • Page 36 1-Bag Bagwell Upgrade 1-33 11. Remove four (4) yellow shipping spacers from the scale pods before installing the Scale Tray. Note: The 7350-K125 (Walmart Blue) variant uses Top Spacer Brackets instead of a Scale Controller and Scale Pods. 12. Install the Scale Tray on the Bagwell using four (4) flat head screws. Note: Ensure that the surface marked BACK is facing towards the back of the unit.
  • Page 37 • Level the unit and attach the bag racks, if necessary. For more information, refer to the 7350 NCR SelfServ™ Checkout (7350) Hardware Installation Guide (B005– 0000–1826). • Test scale operation in PML. For more information, refer to the NCR FastLane SelfServ™ Checkout Profile Manager Lite (PML) User Guide for ADD 3.X (B005- 0000-2279).
  • Page 38 1-Bag Bagwell Upgrade 1-35 Installing Bagwell Skirt Panels To install Bagwell skirt panels, follow these steps: 1. On the side of the Bagwell, do the following: a. Attach the skirt panel to the skirt brackets by aligning the open slots in the skirt panel with the screw holes in the skirt bracket.
  • Page 39 1-36 1-Bag Bagwell Upgrade 2. On the front and back of the Bagwell, do the following: Note: The front and back skirt panels of the Bagwell must be installed after the side skirt panel of the Bagwell. a. Attach the skirt panel to the skirt brackets by aligning the open slots in the skirt panel with the screw holes in the securing bracket.
  • Page 40 1-Bag Bagwell Upgrade 1-37 Routing Cables To route cables when installing a new Bagwell follow these steps: Note: If a new Bagwell is installed to a No-Bag unit, refer to Routing Cables for No-Bag unit on page 40 first for additional steps. Note: Use the new pre-installed USB Power Cable only when installing a new Bagwell to a No-Bag unit.
  • Page 41 1-38 1-Bag Bagwell Upgrade 2. Tie the USB Power Cable with cable ties to hold it in place. 3. Route the Local Access Network (LAN) Cable from the Core to the Customer Interface through the smaller opening of the Bagwell frame as shown in the image below.
  • Page 42 1-Bag Bagwell Upgrade 1-39 4. Route the AC Power Out and AC Power In cables and then connect to the Power Strip, as shown in the image below.
  • Page 43 1-40 1-Bag Bagwell Upgrade Routing Cables for No-Bag unit These are additional steps in routing cables when upgrading a No-Bag unit to a 1-Bag unit: Note: Use the new USB Power Cable. Route the USB Power Cable to the E-Box first before installing new Bagwell.
  • Page 44 1-Bag Bagwell Upgrade 1-41 3. Do the following to remove the Scanner/Scale from the scanner bucket area. a. Grasp the front of the Scanner and lift up. b. Grasp the back of the Scanner and slide scanner out of the bucket area. 4.
  • Page 45 1-42 1-Bag Bagwell Upgrade 5. Tilt the E-Box Bracket forward to easily access the cables. 6. Unplug the pre-installed USB Power Cable from the Scale Controller in the new Bagwell and plug host connector to the USB M Port of the E-Box.
  • Page 46 1-Bag Bagwell Upgrade 1-43 7. Tie the Scale Controller Cable to the main bundle by using six (6) cable ties. Note: Secure the main cable to the E-Box with the first two (2) cable ties. 8. Continue routing the cable down the back of the Receipt Printer, as shown in the image below.
  • Page 47 1-44 1-Bag Bagwell Upgrade 9. Ensure that the cable bundle is not in contact with the Tri-Light pole bracket, DVD Drive, and ventilation fan studs when the E-Box is tilted from Up to Down positions as shown in the image below. 10.
  • Page 48 1-Bag Bagwell Upgrade 1-45 11. Install the Scanner/Scale. To install the Scanner/Scale, follow these steps: a. Grasp the Scanner/Scale by its handles and lower it into the checkstand cutout. Caution: Be careful not to damage any of the cables. b. Place the back of Scanner/Scale on the two supports located on the E-Box mount. c.

  • Page 49: On Page

    1-46 1-Bag Bagwell Upgrade 12. Ensure the E-Box can rotate freely by adjusting the position of the cable as needed. USB Power Cable should be routed through the left hand lower Core access cutout into the new Bagwell. 13. Unplug the AC Power Out and AC Power In cables from the Power Strip. AC Power In Cable will be reused in the new Bagwell.
