AT&T MetroCell Installation Guide For the following MetroCell model: Alcatel-Lucent 9363 Metro Cell - Indoor (v2 1900/850 MHz) Contents Before you begin What’s In the Kit Getting to Know AT&T MetroCell Installation LAN Configuration Requirements Serial Number Site-Specific Hardware Placement Guidelines Device Assembly Step 1: Mount AT&T MetroCell... -
Page 2: Before You Begin
The AT&T MetroCell is an Alcatel-Lucent 9363 Metro Cell - At least 1 foot away from any work station or place – Indoor. Here’s what the device looks like, with names of where people may gather in order to avoid excessive parts &... -
Page 3: Installation

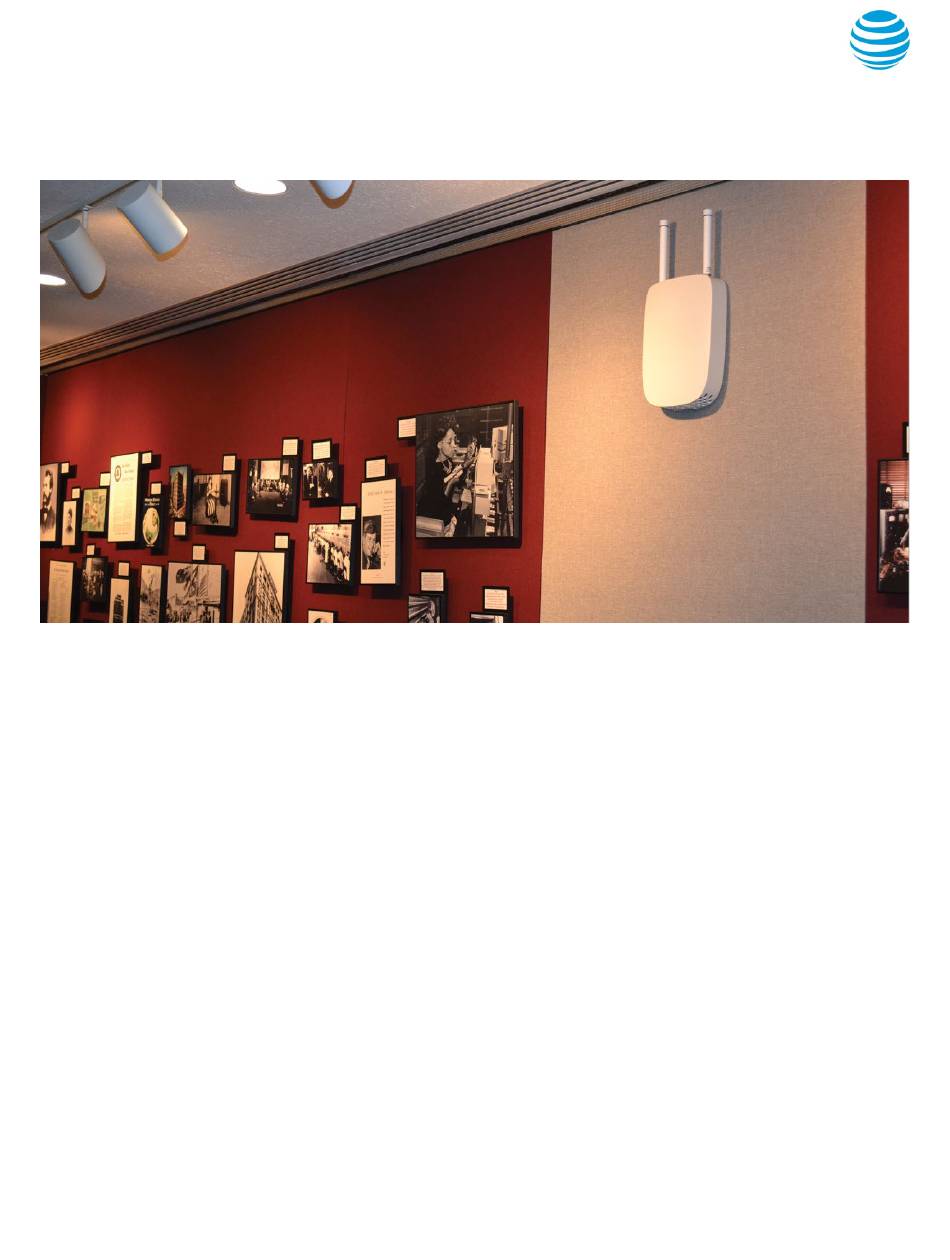

Installation Figure 4 – MetroCell - Indoor Installation Example LAN configuration requirements To activate your AT&T MetroCell, it must be able to communicate with a dynamic Internet address in the AT&T Mobility network. If you’re connecting the MetroCell to a router that has a simple configuration and hasn’t been customized, you likely won’t have to make changes to your router settings. -
Page 4: Device Assembly
Step 2: Connect AT&T MetroCell Figure 5 – PoE+ Connectivity Diagram Power supply Cat5e shielded The MetroCell must be powered either by the provided Ethernet with metallic “boots” Power over Ethernet Plus (PoE+) injector or by the provided Ethernet Ethernet (150 feet) 48V AC/DC power adaptor. -
Page 5: Step 3: Device Cover
Step 3: Device Cover Figure 8 - Ethernet cable connection point Cosmetic Cover Attachment (Optional) If the optional MetroCell cosmetic cover is to be fitted to the MetroCell: • Clip the cosmetic cover into the attachment point on the top of the MetroCell unit and secure in place using the two retention screws at the bottom of the cover. -
Page 6: The At&T Metrocell Website: Att.com/Metrocell
The AT&T MetroCell website: • The street address at which the MetroCell is installed. att.com/metrocell • A “nickname” which you want to assign to the MetroCell to make it easier to identify. The MetroCell customer website provides access to a •... - Page 7 After activation, you should perform the following checks to ensure that your MetroCell is operating properly: 1. Check that AT&T handsets within range of the MetroCell display more “bars” of signal strength than they did before the MetroCell was activated. 2.
-
Page 8: Local Transport Requirements
Appendix A: Local transport Appendix B: Bandwidth guidelines requirements Customer is responsible for providing connectivity to the Internet. Confirm the following router/switch settings prior to activating your AT&T MetroCell: The required bandwidth will depend on the number of simultaneous users you want to be able to support and •... -
Page 9: Installing Multiple Metrocells
Appendix C: Installing multiple MetroCells 3. Find a site for the 2nd MetroCell that is as far away from the edge of the coverage area identified in step 2 as that edge is The floor area that can be covered by a single MetroCell away from the first MetroCell. -
Page 10: Troubleshooting Guide
Appendix D: Troubleshooting guide • Check that the Internet line is working properly. • Ensure that access to the router and MetroCell If you are not able to make a voice call or use data are available. applications, follow the troubleshooting steps in this appendix. - Page 11 Step 2 – MetroCell system LED Then The System LED is ON Skip to Step 3. The System LED is OFF There could be a system error or backhaul network problem. • Power down the MetroCell and wait 10 minutes. •...
-
Page 12: Radio Frequency (Rf) Safety Compliance
Appendix E: Radio frequency (RF) maintenance of any notice, caution, and warning signs, and any RF transparent screen/shield. Customer should safety compliance specifically refer to Appendix F to this Installation Guide, which contains specific instructions for maintaining a When operated in accordance with manufacturer record identifying AT&T as the custodian of the station’s specifications and AT&T’s instructions, the MetroCell license to operate.
