Farpointe Data Ranger Long-Range Installation Manual

Ranger Long-Range
Wireless Receiver (433-MHz)
This Installation Guide is intended for experienced installation technicians. It is a basic reference to ensure all connections are
properly made. Additional information may be downloaded from the Farpointe Data website found at www.farpointedata.com; under
Products > Ranger ® Long Range Transmitters and Receivers.
The Ranger Long-Range Wireless Radio Transmitter is compliant with the following organizations:
FCC compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Spain, Sweden,
United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.
1.0 Description
Wireless Radio Transmitters and Long Range Receivers with an integrated receive antenna comprise Farpointe Data's high frequency,
long-range identification solution known as Ranger
tions are based upon a secure, digital, anti-playback routine
Intended for security access control applications, Ranger's wireless communications are based upon a secure digital anti-playback
routine. The two-channel Ranger Receiver (Channels A and B) allows Ranger Transmitter data to be sent over a pair of Wiegand out-
puts. Formatting of the Wiegand output is dependent upon the programmed format of the individual Ranger Transmitter.
The Receiver kit includes:
● 1 x Receiver mounted in an IP66 compliant plastic enclosure
● 1 x cable grommet for weather reistance
● 4 x self-captivating M4 scres for lid mounting

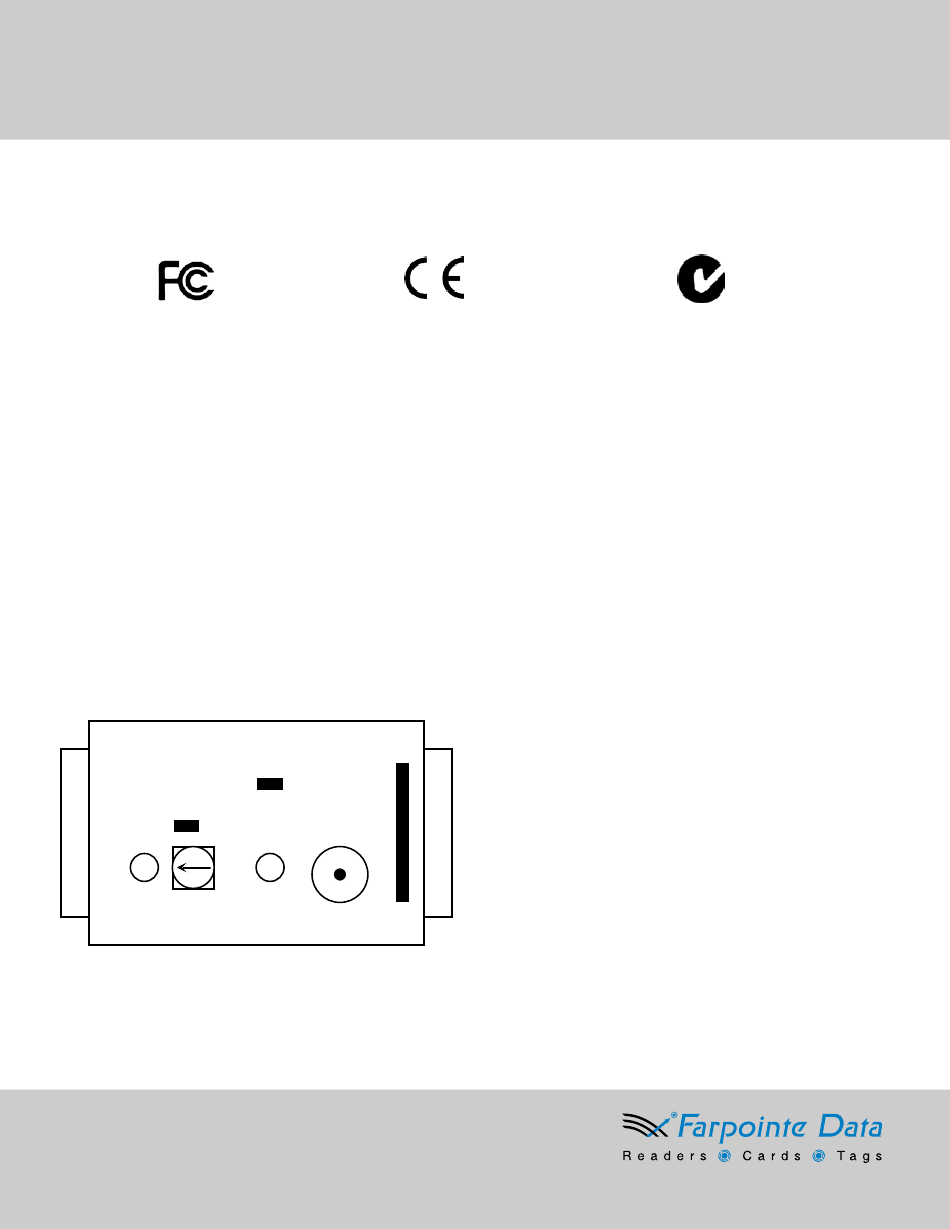

2. Receiver Layout
F
A B
3.0 Cable Requirements
Per the Security Industry Association's Wiegand specification, the Receiver operates at cable runs up to 500 feet (152 m), using AWG
24 (0.6 mm), seven-conductor, shielded cable – such as Belden 9537.
1
Models include the WRT-2+, WRT-2+H, WRT-2+A, WRT-4+, WRT-4+H, WRT-4+A, WRT-2+S1, WRT-2+S4 WRT-4+S1, and WRT-4+S4
Addresses the risks associated with code sniffing and unauthorized duplication
2
260 North Wolfe Road
Sunnyvale, CA 94085 USA
Tel: +1-408-731-8700 Fax: +1-408-731-8705
e-mail: info@farpointedata.com
Web: www.farpointedata.com
. Intended for security access control applications, Ranger's wireless communica-
1
.
2
● 2 x 3,0 x 16 screws for mounting to a European style wall box
● 4 x #6 1-inch Phillips flat head wood screws for flat surface mounting
● 2 x #6 1-inch Phillips flat head machin screws for mounting to a USA single gang wall box
G
C D E
Legend:
A: Range LED
B: Range Adjustment Pot
C: Functional LED Indicator
D: Beeper
E: 7-PIN Terminal Block
F: Button Select Jumper
G: Front LED Control Jumper
1 of 2
Farpointe Data Receiver

Installation Guide

P/N: 01601-001 Rev. 1.2
