10. To remove the switch support: Use a small,
flat-blade screwdriver to gently unsnap the
sides and top of the switch support from the
snaps shown in Figure 2.
The LCD, keypad assembly, and elastomeric
strips are accessible and can be replaced as
needed.
Do not allow the LCD to get wet.
Before installing a new LCD, make sure that
all connector contact points are clean.
Caution
Do not touch the conductive edges of the
elastomeric strips or the contacts on the
keypad assembly. If they are ontaminated,
clean them with isopropyl alcohol.

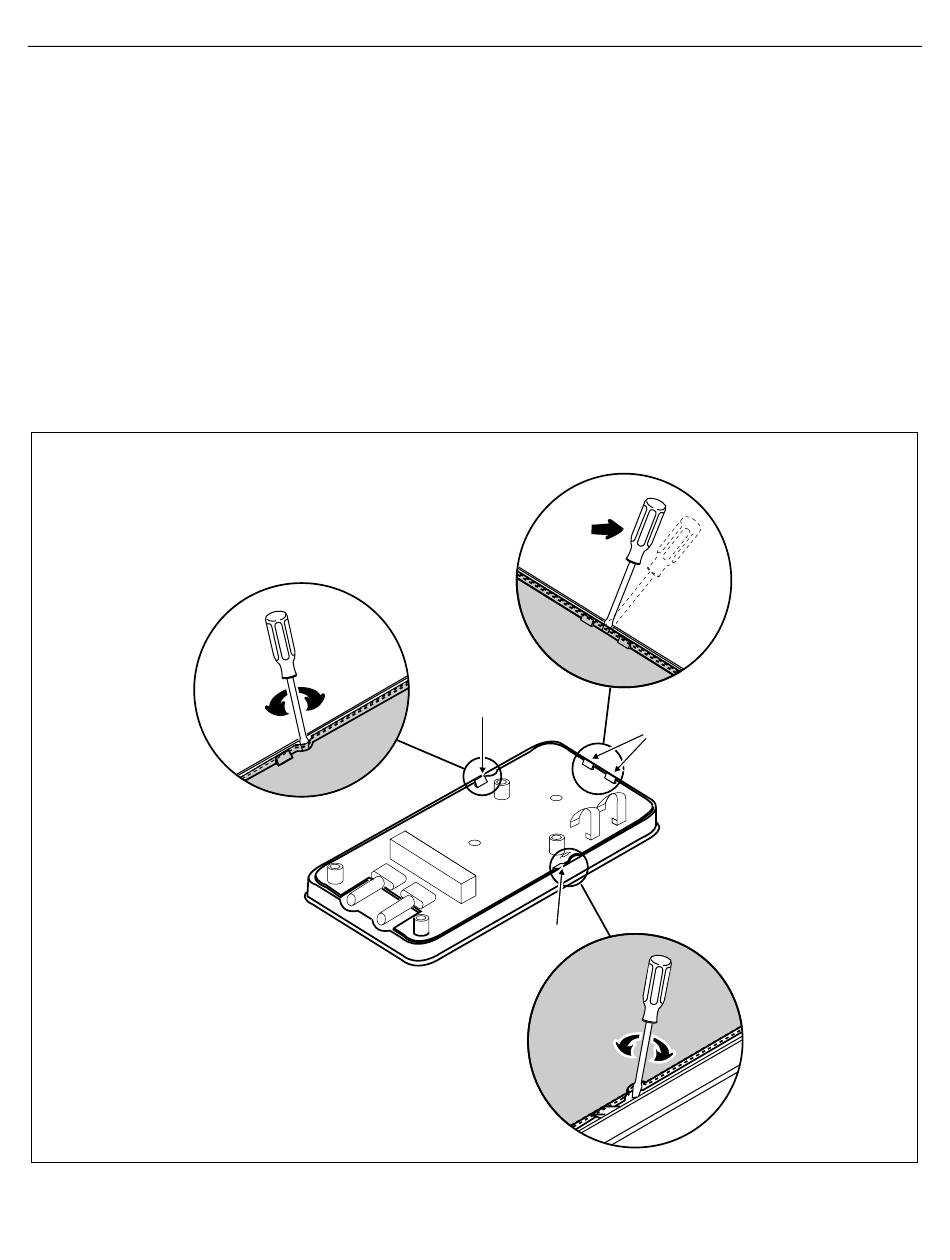

Figure 3. Removing and Reinserting the Printed Cirsuit Assembly (PCA)
2
Snap
Disassembling and Reassembling the Calibrator
11. To reinsert the pca: Place the pca over the four
screw posts in the case top.
Gently press on the center of the pca while using
the small flat-edge screwdriver to shoehorn the
pca under the snap on a side of the case top.
Repeat on the other side and the top.
12. To reassemble to Calibrator: Reassembling the
Calibrator is the reverse of disassembling it.
After the Calibrator is reassembled, perform the
verfication test to confirm that the Loop
Calibrator is working properly.
3
Snaps
1
Snap
Loop Calibrator
AAK02F.EPS
