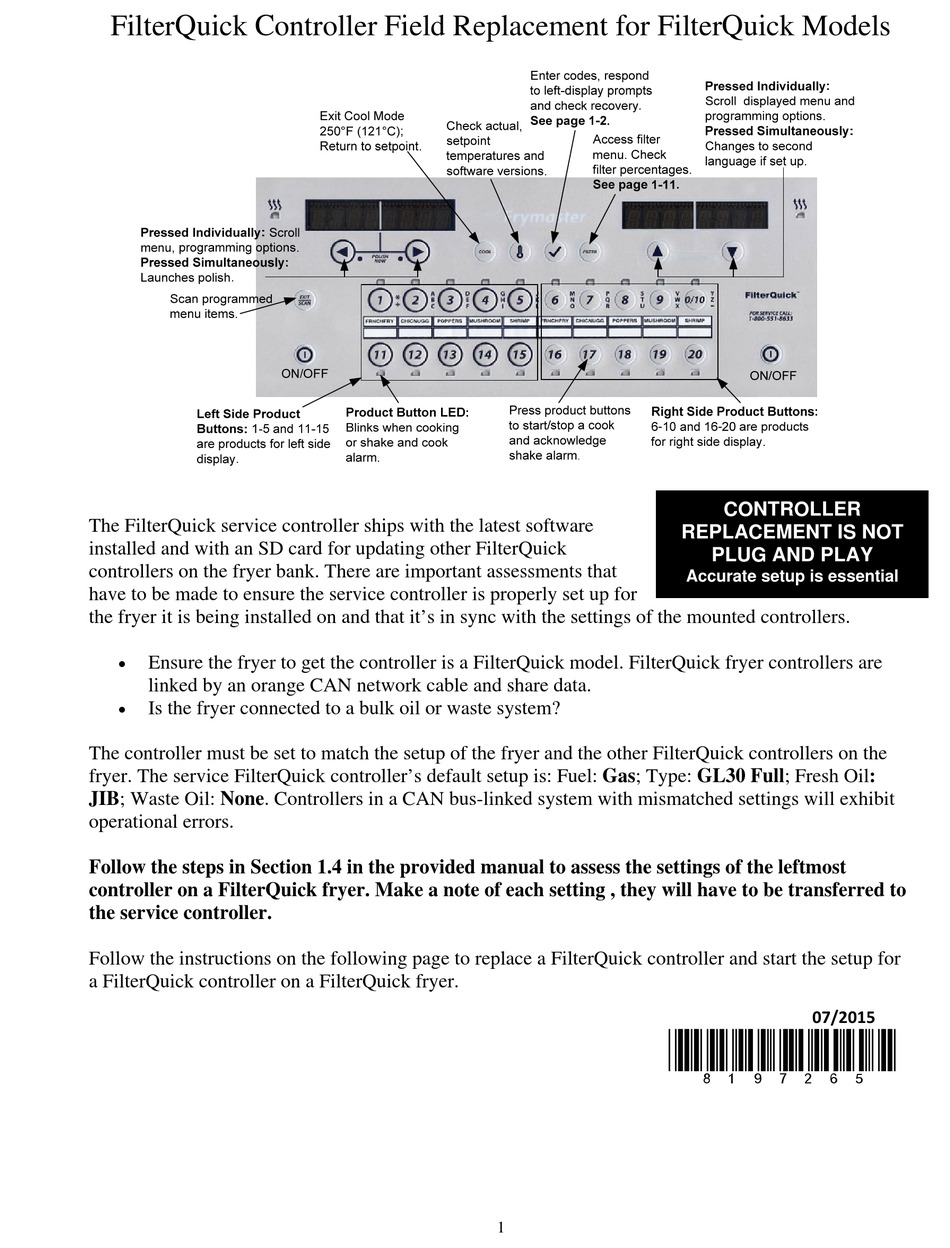

FilterQuick Controller Field Replacement for FilterQuick Models
The FilterQuick service controller ships with the latest software
installed and with an SD card for updating other FilterQuick
controllers on the fryer bank. There are important assessments that
have to be made to ensure the service controller is properly set up for
the fryer it is being installed on and that it's in sync with the settings of the mounted controllers.

Ensure the fryer to get the controller is a FilterQuick model. FilterQuick fryer controllers are
linked by an orange CAN network cable and share data.

Is the fryer connected to a bulk oil or waste system?
The controller must be set to match the setup of the fryer and the other FilterQuick controllers on the
fryer. The service FilterQuick controller's default setup is: Fuel: Gas; Type: GL30 Full; Fresh Oil:
JIB; Waste Oil: None. Controllers in a CAN bus-linked system with mismatched settings will exhibit
operational errors.
Follow the steps in Section 1.4 in the provided manual to assess the settings of the leftmost
controller on a FilterQuick fryer. Make a note of each setting , they will have to be transferred to
the service controller.
Follow the instructions on the following page to replace a FilterQuick controller and start the setup for
a FilterQuick controller on a FilterQuick fryer.
*8197265*
1
CONTROLLER
REPLACEMENT IS NOT
PLUG AND PLAY
Accurate setup is essential
