3000 Computer Field Replacement for Legacy Fryers
The 3000 service computer ships with the latest software installed
and with an SD card for updating other 3000 computers on the fryer
bank. There are important assessments that have to be made to ensure
the service controller is properly set up for the fryer it is being
installed on and that it's in synch with the settings of the mounted controllers.


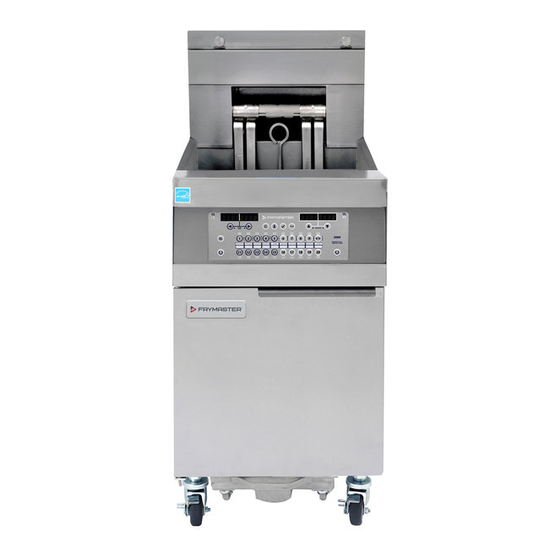

Ensure the fryer to get the controller is a Legacy model. The controllers in legacy model fryers
are not linked by an orange CAN-bus cable.

Does the fryer have an automatic oil top-off system?

Is the fryer connected to a bulk oil or waste system?
The controller must be set to match the setup of the fryer. The service legacy 3000's default is: Energy:
Gas; Type: HD60 FULL; Fresh Oil: None; Waste Oil: None.
Follow the steps in Section 1.5 in the provided manual to assess the settings of a controller on the
fryer to receive the service legacy 3000.
Follow these instructions to replace a 3000 controller and start the setup for a 3000 controller on a
legacy fryer.
Replacing the Controller
1.
Follow the steps in Section 1.5 in the provided manual to record the settings of a controller on a legacy fryer. Make a
note of each setting. They will have to be transferred to the service computer.
2.
Disconnect the fryer from the electrical power supply.
3.
Open the control panel by removing the screws on the bottom of the bezel. Carefully lower the bezel.
4.
Remove the two screws from the upper corners of the controller. The controller is hinged at the bottom and will swing
open from the top.
5.
Unplug the wiring harnesses from the connectors on the back of the controller, marking their position for reassembly,
and disconnect the grounding wires from the terminals. Remove the controller by lifting it from the hinged slots in the
control panel frame.
CONTROLLER
REPLACEMENT IS NOT
PLUG AND PLAY
Accurate setup is essential
