Final Drilling - 5D TACTICAL Router JigPro Instructions Manual

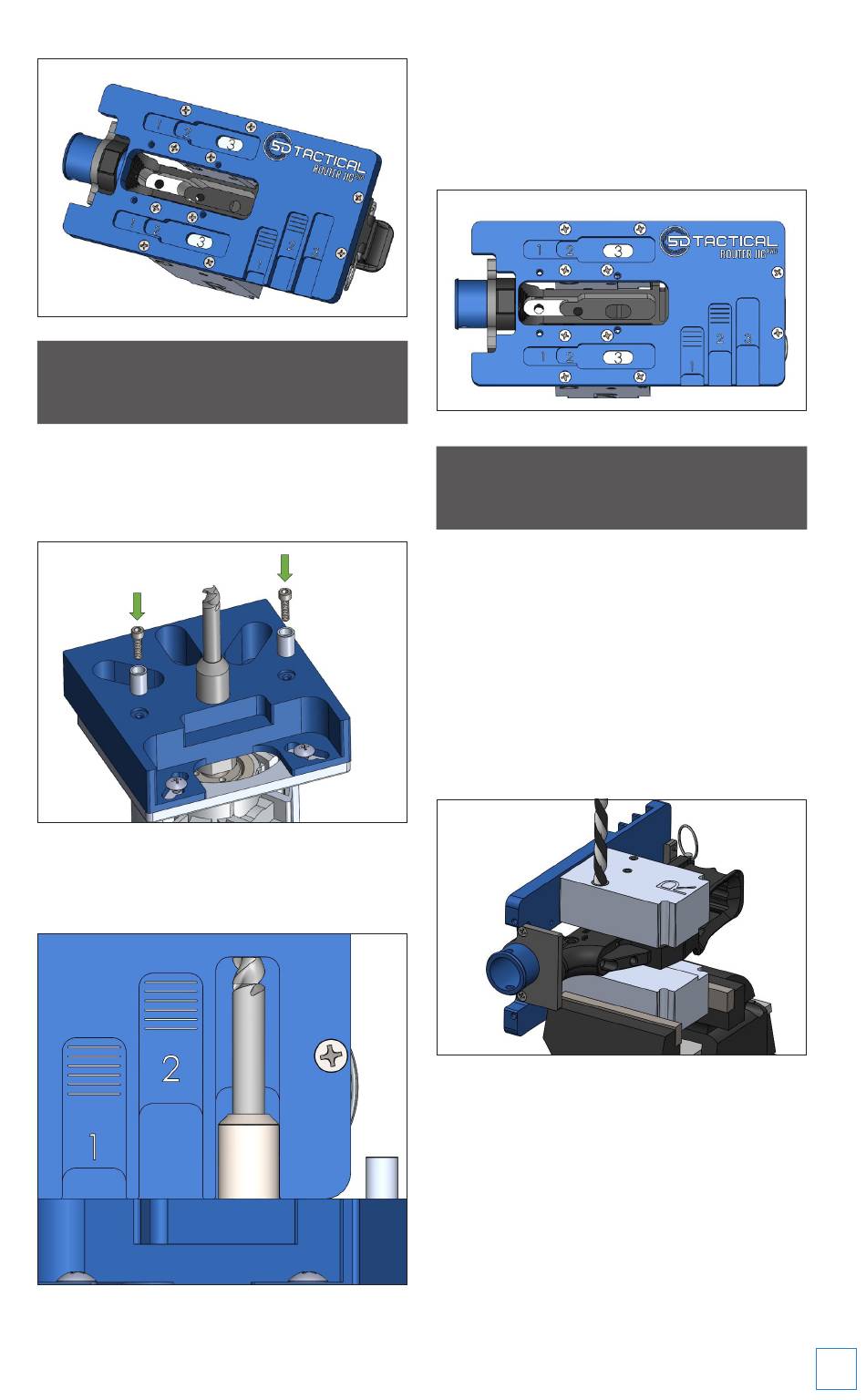

PART 5: MILLING STEP 3
5-1
Remove #2 (Medium) Guide Pins
and install #3 (Long) Guide Pins.
Do not overtighten.
5-2
Set end mill depth to bottom of
Depth Gauge #3.
508-834-4223 5DTACTICAL.COM
5-3
Place router on Guide Plate, with
the end mill centered within the drill
hole. The Guide Pins should be positioned inside
the #3 Guide Holes on both sides. Gently mill in a
clockwise manner until the trigger slot is formed.
SECTION 6: FINAL DRILLING
6-1
Clamp Jig Assembly in the Vise by
the edges of the side plates, with
the RIGHT Side Plate facing up. Ensure that the
assembly is level. Spray WD-40 into the large
Guide Hole and insert 3/8" drill bit. Do not start
drill until bit is fully inserted in the Guide Hole.
Apply moderate pressure and drill until the bit
penetrates the right side wall and continue
drilling through left side wall.
6-2
Spray WD-40 into both small Guide
Holes and insert 5/32" drill bit
into either remaining Guide Hole. Do not start
drill until bit is fully inserted. Apply moderate
pressure and drill until the bit penetrates the
right side wall and continue drilling through
left side wall. Repeat for remaining small
Guide Hole.
9
