ASSEMBLY
Thank you for your Router Jig Pro purchase.
you have chosen to spend your hard earned money with us, and because of that, we strive for 100%
customer satisfaction. Your Router Jig Pro carries a LIFETIME WARRANTY against manufacturer's
defects. Please contact us by phone at 508-834-4223 or email sales@5DTactical.com with any
questions or concerns regarding the use of your Router Jig Pro.
tion of 80% lowers are available for purchase on our website, 5DTactical.com.

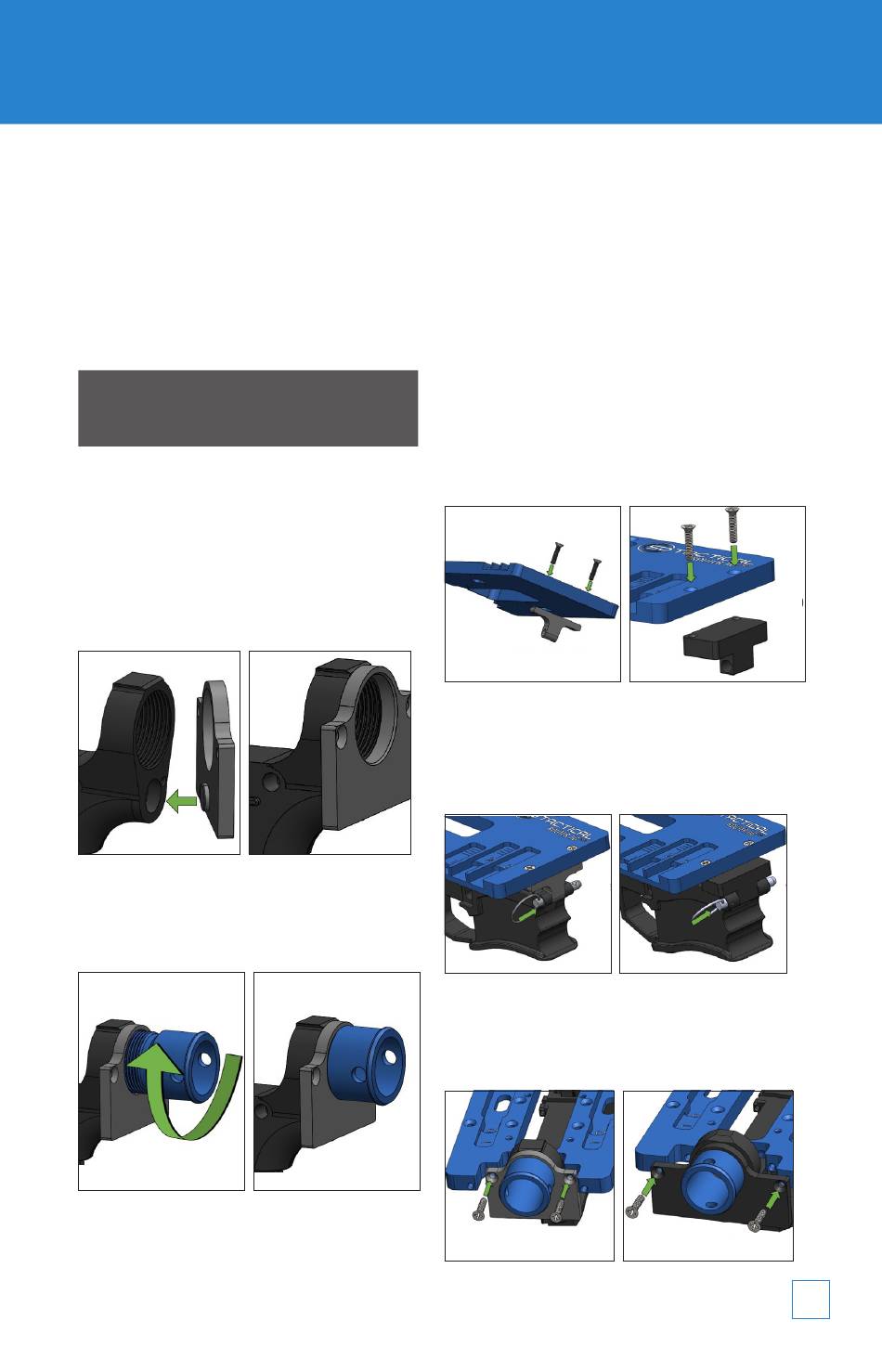

PART 1: JIG ASSEMBLY
1-1
Clean surface of the 80% receiver
and apply masking tape to the sides.
1-2
Apply the Buffer Plate to the back
of the receiver as shown. Use grey
Buffer Plate for AR-15/AR-9 receivers and
black Buffer Plate for .308/AR-10 receivers.
1-3
Loosely thread the Buffer Adapter
into the receiver until the Buffer
Plate is pressed against the back of the receiver.
508-834-4223
5DTACTICAL.COM
At 5D Tactical, we understand
Replacement parts and a selec-
1-4
Loosely install the Takedown
Adapter to the Guide Plate using (2)
Jig Screws. Use grey Takedown Adapter for
AR-15/AR-9 receivers and black Takedown
Adapter for .308/AR-10 receivers.
AR-15/AR-9
1-5
Align the receiver with the Takedown
Adapter, pass the Takedown Pin
through the receiver and adapter. Use the
correct Takedown Pin for the receiver.
AR-15/AR-9
1-6
Align the Buffer Plate with the
holes in the rear of the Guide Plate.
Loosely install (2) Jig Screws.
AR-15/AR-9
.308/AR-10
.308/AR-10
.308/AR-10
