Summary of Contents for Philips FW320C/22

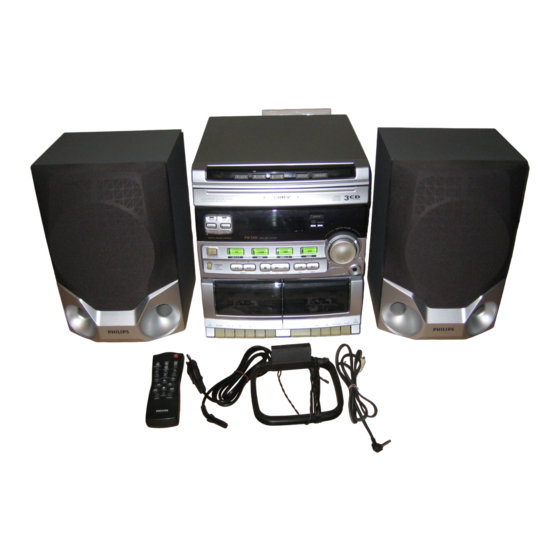

- Page 1 FW320C Mini HiFi System...
-
Page 2: How To Connect Plug
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio FW320C Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. - Page 3 INDEX English ...4 Français ...25 Español ...45 Deutsch ...65 Nederlands ...85 Italiano ...105 Svenska ...125 Dansk ...145 Suomi ...165 Português ...185 CLASS 1 ∂ÏÏËÓÈο ... 205 LASER PRODUCT...
-
Page 5: Table Of Contents
CONTENTS General Information ... 5 Safety Information ... 5 Preparation ... 6 - 7 Controls ... 8 - 9 Operating The System ... 10 - 11 CD ... 12 - 14 Tuner ... 15 - 16 Tape ... 17 - 18 Aux ... -
Page 6: Preparation
PREPARATION Rear Connections FM AERIAL FRONT AM AERIAL – – AUX IN MAINS AUDIO OUT... -
Page 7: Am Loop Antenna Connection
A AM Loop Antenna Connection Connect the supplied loop antenna to the AM AERIAL terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception. B FM Wire Antenna Connection Connect the supplied FM wire antenna to the FM 75 terminal. -
Page 8: Controls
CONTROLS DISC 3 CD ROTARY CHANGER SYSTEM • CD SYNCHRO RECORDING OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK FW 318C DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND STANDBY . ON DUBBING TUNING DUBBING •... - Page 9 Controls on the system and remote control 1 STANDBY-ON – to switch the system on or to standby mode. – to store radio stations automatically by pressing and holding for 5 seconds. 2 SOURCE : to select the following. CD / (CD 1•2•3) –...
-
Page 10: Operating The System
OPERATING THE SYSTEM OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK FW 318C DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND STANDBY . ON DUBBING TUNING DUBBING • FAST • NORMAL NORMA• HIGH RECORD REPLAY SEARCH STOP•CLEAR... - Page 11 Sound Control Volume Adjustment Adjust VOLUME to increase or decrease the sound level. For Personal Listening Connect the headphones plug to the n socket at the front of the system. The speakers will be muted. Digital Sound Control (DSC) The DSC feature enables you to enjoy special sound effects that have preset equalizer settings, providing the best music reproduction.
- Page 12 DISC DISC OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND STANDBY . ON DUBBING TUNING DUBBING • FAST • NORMAL NORMA• HIGH RECORD REPLAY SEARCH STOP•CLEAR Warning! 1) This system is designed for conventional CDs.
- Page 13 Playing a CD 1 Press PLAY É to start playback. ™ The disc tray, track number and elapsed playing time of the current track appear on the display. • To interrupt playback, press PAUSE Å. ™ The playing time flashes. •...
- Page 14 Playing the program 1 Press PLAY É to start program playback. ™ “PLAY PROGRAM” appears on the display. ™ The track number and elapsed playing time of the current track will appear on the display. • If you press REPEAT during program playback, the current track will be played repeatedly.
-
Page 15: Tuner
OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND STANDBY . ON DUBBING TUNING DEMO DUBBING • FAST • NORMAL NORMA•HIGH RECORD REPLAY SEARCH STOP•CLEAR Easy Set EASY SET allows you to store all available radio stations in a particular band (FM, MW or LW) automatically. - Page 16 TUNER Manual programming 1 Press TUNER. 2 Press TUNER (BAND) to select the desired waveband : FM, MW or LW. 3 Press PROGRAM for less than one second. ™ PROGRAM flag, the frequency and preset number start flashing. ™ The next available preset number will be displayed for selection.
-
Page 17: Tape
STEREO OPTIMAL JAZZ NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK DIGITAL SOUND CONTROL TUNER TAPE CD 1 • 2 • 3 BAND TAPE 1 • 2 STANDBY . ON DUBBING TUNING DEMO DUBBING • FAST • NORMAL NORMA• HIGH RECORD REPLAY SEARCH... -
Page 18: Aux
TAPE Continuous Playback From Tape Deck 2 to Tape Deck 1 1 Press TAPE to select TAPE mode. 2 Load the tapes in tape deck 1 and 2. 3 Press PLAY 2 on tape deck 2. 4 Press PAUSE on tape deck 1. 5 Press PLAY 2 on tape deck 1. -
Page 19: Recording
OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND TAPE 1 • 2 STANDBY . ON DUBBING TUNING DEMO DUBBING • FAST • NORMAL NORMA•HIGH RECORD REPLAY SEARCH STOP•CLEAR PLAY... - Page 20 RECORDING 5 Press PLAY on tape deck 2. ™ Recording will start automatically. ™ The REC flag starts flashing. 6 Press STOP•OPEN on tape deck 1 and tape deck 2 to stop dubbing. Notes: – At the end of side A, flip the tapes to side B and repeat the procedure.
-
Page 21: Clock
CLOCK OPTIMAL JAZZ STEREO NEWS REPLAY REPEAT SHUFFLE PROGRAM TIMER TECHNO ROCK DIGITAL SOUND CONTROL TUNER CD 1 • 2 • 3 BAND STANDBY . ON DUBBING DEMO TUNING DUBBING • FAST • NORMAL NORMA•HIGH RECORD REPLAY SEARCH STOP•CLEAR View Clock You can view the clock (if it is set) at standby or any source mode. - Page 22 TIMER • At the preset time, the TIMER will be activated. ™ The selected source will be played. ™ The TIMER flag disappears from the display. Notes: – During timer setting, if no button is pressed within 90 seconds, the system will exit timer setting mode automatically.
-
Page 23: Maintenance
Cleaning the CD lens • After prolonged usage, dirt or dust may accumulate at the CD lens. To ensure good playback quality, clean the CD lens with Philips CD Lens Cleaner or any commercially available. Follow the instructions supplied with the Lens Cleaner. -
Page 24: Troubleshooting
TROUBLESHOOTING Warning! Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. • If a fault occurs, check the points listed below before taking the system for repair. • Should any problems persist after you have made these checks, consult your nearest dealer or service center.
