Summary of Contents for Philips BTM177/12

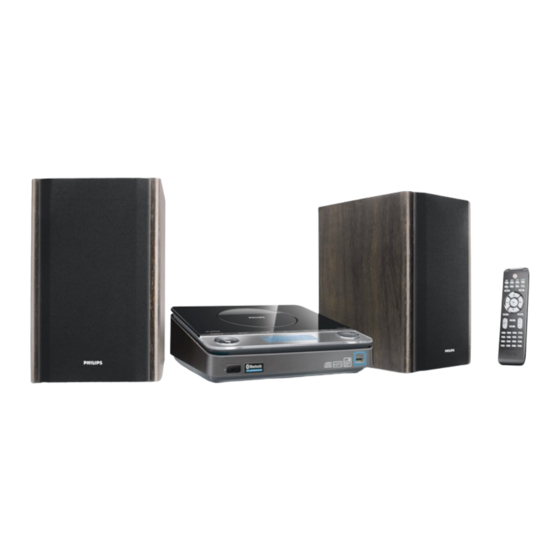

- Page 1 Bluetooth Wireless Micro System Register your product and get support at www.philips.com/welcome User manual Manuel d'utilisation Manual de usuario Benutzerhandbuch Gebruikershandleiding Manuale dell'utente Användarhandbok Brugervejledning BTM177...
- Page 2 See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio BTM177 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven...
- Page 3 & & ¡ 6 7 8...
- Page 4 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 29 Español --------------------------------------------- 54 Deutsch ---------------------------------------------79 Nederlands -------------------------------------- 104 Italiano -------------------------------------------- 128 Svenska ------------------------------------------- 153 Dansk --------------------------------------------- 176...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 7 Environmental Information ... 7 Safety Information ... 7 Hearing Safety ... 8 Preparations Rear connections ... 9 Power ... 9 Antenna Connection ... 9 Speakers Connection ... 10 Optional connection ... 10 Connecting a USB mass storage device ... 10 Connecting other equipment to your system ... -
Page 7: General Information
Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome. This product complies with the radio interference requirements of the European Community. Supplied accessories – 1 X certified AC/DC adaptor Brand name: PHILIPS, Model: PAT075A29UV Input: 100- 240V, 50/60Hz, 1.6A Output: 29.0V,... -
Page 8: Hearing Safety
General Information ● Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. ● When the system is switched to Standby mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket. -
Page 9: Preparations
Speaker (right) Rear connections The type plate is located at the rear of the system. For users in the U.K.: please follow the instructions on page 2. Power – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. -
Page 10: Speakers Connection
Preparations Move the antenna in different positions for optimal reception (as far away as possible from the TV, VCR or other radiation sources). Speakers Connection Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+"... -
Page 11: Controls On The System
Controls on the system STANDBY ON (2) – switches the system to standby/Eco-power standby/on. SOURCE – Press repeatedly to select source: DISC/TUNER/ BLUETOOTH/USB/AUX1/AUX 2. – switches on the system. 2; ... starts or interrupts CD/MP3 playback. 9 ... stops CD/MP3 playback or erases a CD programme. - Page 12 Controls (illustrations on page 3) à / á for Tuner ... tunes to radio stations. for CD/MP3 ... fast searches back and forward within a track/CD. 9 ... stops CD playback or erases a CD programme. USB DEL – deletes music from an external portable USB storage device.
-
Page 13: Basic Functions
IMPORTANT: Before you operate the system, complete the preparation procedures. Plug and Play (for tuner installlation) Plug and Play allows you to store all available radio stations automatically. First time setup/power up When you turn on the main supply, "AUTO INSTALL PRESS - PLAY KEY"... -
Page 14: Switching The System On
Basic Functions Switching the system on ● Press STANDBY ON or SOURCE (or 2on the remote control). ➜ The system will switch to the last selected source. ● Press CD, USB, FM, Bluetooth or AUX on the remote control. ➜ The system will switch to the selected source. -
Page 15: Cd/Mp3 Operation
IMPORTANT: The lens of the CD player should never be touched. Loading a disc This CD player plays Audio Discs including CD Recordable, CD-Rewritable, MP3 CD andWMA disc. ● CD-ROM, CD-I, CDV, VCD, DVD or computer CDs, however, are not possible. ●... -
Page 16: Information Display During Playback
CD/MP3 Operation Supported MP3 disc formats: – ISO9660, Joliet, UDF 1.5 – Maximum title number: 999 (depending on filename length) – Maximum album number: 99 – Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz – Supported Bit-rates: 32~256 (kbps), variable bitrates Information display during playback... -
Page 17: Radio Reception
Tuning to radio stations Press SOURCE on the set (or FM on the remote control ) repeatedly until TUNER is displayed. Press down on TUNING à / á (or à / á on the remote control) and release the button. ➜... -
Page 18: Usb Connection
USB Connection Using USB connectivity ● BTM177 is fitted with a USB port in the front panel, offering a plug and play feature which allows you to play, from your BTM177, digital music and spoken contents stored on a USB mass storage device. -
Page 19: Ripping Function
2. Supported Music type: a) This device only supports unprotected music with file extension: .mp3 .wma b) Music bought from on-line music stores are not supported because they are secured by Digital Rights Management protection (DRM). c) File name extensions that ended with the following are not supported: .wav;... -
Page 20: Aux
Listening to an external source You can listen to the sound of the connected external device through your system’s speakers. Using AUX IN (3.5 mm jack ) Use a cinch cable (not supplied) to connect AUX IN jack of the main unit (3.5 mm, located on the back panel) to an AUDIO OUT or headphone jack on an external equipment (such as CD player, or VCR). -
Page 21: Bluetooth Operation
3 seconds. ➜ “PAIRING” starts flashing on the display panel. Set the Bluetooth-enabled device to search for other available Bluetooth devices until it recognizes “PHILIPS BTM177”. (Refer to the user manual of the device to be connected for detailed operations.) -
Page 22: Operating A Connected Bluetooth-Enabled Device Through The System
Bluetooth Operation Select “PHILIPS BTM177” to start pairing. Enter “0000” when prompted for a keyword. Wait for completion of the pairing until you hear a double beep from the system and the bluetooth icon turns on. ➜ If the connected device (mobile phone) supports the HFP and/or HSP profiles, the display panel of the system will show “PHONE... -
Page 23: Receiving A Call Through The System
5) Place the unit in line with your mouth. If you will be using this unit while sitting down, place the unit at tabletop level, in line with the level of your mouth. Placing the unit on a high cabinet or on the floor may reduce the pick-up of the microphone. -
Page 24: Clock/Timer
Clock/Timer Viewing clock ● The clock (if it is set) is shown in normal standby mode. To view the clock in any sound source (CD or FM for example ) ● Press briefly DISPLAY/CLOCK. Setting the clock In standby mode, press DISPLAY/CLOCK. ➜... -
Page 25: Specifications
Cleaning the disc lens ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. -
Page 26: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. - Page 27 Problem The remote control does not function properly. The time is not working. The Clock/Timer setting is erased. The USB device doesn’t play on my BTM177 Troubleshooting Solution ✔ Select the source (CD or FM, for example) before pressing the function button (É,í,ë). ✔...
- Page 28 Troubleshooting Problem “DEVICE NOT SUPPORTED” scrolls on the display. Sound input to the microphone cannot be heard clearly. The audio quality is poor after connection with a Bluetooth-enabled device. A device cannot pair or connect with the system. The paired mobile phone connects and disconnects constantly.
- Page 29 Meet Philips at the Internet http://www.philips.com BTM177 CLASS 1 LASER PRODUCT Printed in China PDCC-ZYL-0809...
