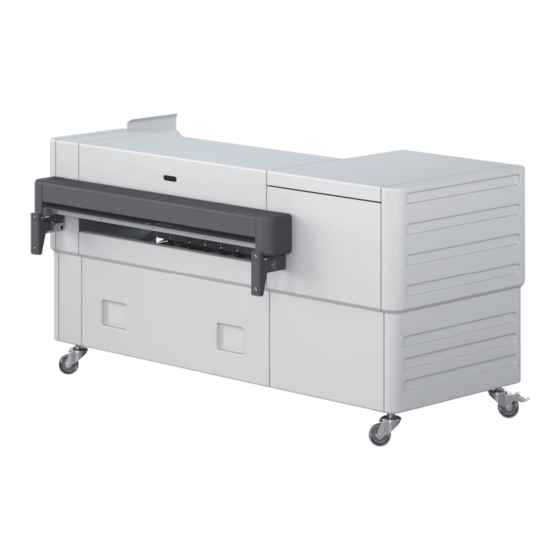

Oce Folder Express 3011 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User guide
Océ Folder Express 3011

Advertisement

Table of Contents
loading

Related Manuals for Oce Folder Express 3011

Summary of Contents for Oce Folder Express 3011

  • Page 1 User guide Océ Folder Express 3011...
  • Page 2 Edition 2018-12...

  • Page 3: Table Of Contents

    Contents Contents Chapter 1 Introduction.........................5 About the folding device..........................6 Safety instructions............................7 Installation and environment.......................... 8 Chapter 2 Specifications........................9 Overview................................. 10 Dimensions..............................12 Folded package...............................16 Maximum paper curl............................17 Chapter 3 Power and switch on......................19 Chapter 4 Tablet PC tutorial......................21 Graphical User Interface via Android device....................
  • Page 4 Contents...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction...

  • Page 6: About The Folding Device

    About the folding device About the folding device The Océ Folder Express 3011 is an automatic online folding device which can be connected to a variety of printers. • Prints which should be folded may be up to 914 mm (36") wide with a length of up to 6 meters.

  • Page 7: Safety Instructions

    Introduction You can find the safety manual for this product on the download website under the product name "http://downloads.oce.com" For your protection, please read these safety instructions and the manual completely before operating the machine. Carefully observe all warnings, precautions and instructions on the machine or the ones described in the operating instructions.

  • Page 8: Installation And Environment

    Installation and environment Installation and environment Installation The folder should be installed by a specially trained engineer. Environment The room in which the folder is to be placed should be dry and dust free. Humidity should be about 20-80% with room temperature of 15° C to 35° C (59°F - 95°F). The folder must stand horizontally aligned and very stable without shaking.

  • Page 9: Chapter 2 Specifications

    Chapter 2 Specifications...

  • Page 10: Overview

    Overview Overview Position of sensors Chapter 2 - Specifications...
  • Page 11 Overview Chapter 2 - Specifications...

  • Page 12: Dimensions

    Dimensions Dimensions Europe (metric) USA/UK (imperial) 1205 mm (shipment height) 47.44" (shipment height) 1179 mm - 1320 mm 46.42" - 51.97" 945 mm - 1086 mm 37.20" - 42.76" 1778 mm 70" 26 mm - 126 mm (depending on the angle 1.02"...
  • Page 13 Dimensions Europe (metric) USA/UK (imperial) 727 mm 28.62" 852 mm 33.54" Chapter 2 - Specifications...
  • Page 14 Dimensions Conveyor tray extension Europe (metric) USA/UK (imperial) 43 mm 1.69" 69 mm 2.72" Recommended service space Chapter 2 - Specifications...
  • Page 15 Dimensions Europe (metric) USA/UK (imperial) 500 mm 20" Chapter 2 - Specifications...

  • Page 16: Folded Package

    Folded package Folded package Chapter 2 - Specifications...

  • Page 17: Maximum Paper Curl

    Maximum paper curl Maximum paper curl Strong paper curl has an influence on quality and reliability of the system. Quality issues and jams can occur by a curl bigger than 30 mm. To measure the paper curl, cut a 200 mm long piece from the copy and lay it face down on a table.
  • Page 18 Maximum paper curl Chapter 2 - Specifications...

  • Page 19: Power And Switch On

    Chapter 3 Power and switch on...
  • Page 20 Power cable Please use only the power cable supplied with the folder. Do not use multi plug extension cords. These cords will not stand the power consumption of plotter and folder. The wall plug must be near to the machine and easy to access. Power supply box The power supply box is at the fan folder's right bottom side.

  • Page 21: Tablet Pc Tutorial

    Chapter 4 Tablet PC tutorial...

  • Page 22: Graphical User Interface Via Android Device

    Graphical User Interface via Android device Graphical User Interface via Android device Introduction The folding device is equipped with a 7" Android Tablet PC, which is connected to the folder via Bluetooth. This device has no battery and gets power from an internal USB port. The tablet and the Folder App are starting as soon as the folder has been switched on.

  • Page 23: Select A Folding Program

    Select a folding program Select a folding program Procedure 1. Tap on the folding program name to display all available programs. 2. Tap on the desired folding program. The display will show the selected program. Chapter 4 - Tablet PC tutorial...
  • Page 24 Select a folding program The display shows the program number, name and parameters: • Fan fold panel (the number below the fold style picture) • Cross fold panel (the number right beside the fold style picture) Chapter 4 - Tablet PC tutorial...

  • Page 25: Add A Folding Program From The List Of Available Programs

    Add a folding program from the list of available programs Add a folding program from the list of available programs Procedure 1. Tap on the login icon. 2. Type in the password in the login screen. Chapter 4 - Tablet PC tutorial...
  • Page 26 Add a folding program from the list of available programs 3. Tap on the program editor icon. The program editor selection opens. Dark numbers show activated folding programs (1). Light gray numbers show deactivated folding programs (2). 4. Tap on a number to activate the folding program. 5.
  • Page 27 Add a folding program from the list of available programs 6. Wait while the machine restarts. 7. Tap on the folding program name to display all available programs. The prior activated folding program is now visible. Chapter 4 - Tablet PC tutorial...

  • Page 28: Create Or Customize A Style

    Create or customize a style Create or customize a style Customize a folding program Procedure 1. Tap on the login icon. 2. Type in the password in the login screen. Chapter 4 - Tablet PC tutorial...
  • Page 29 Customize a folding program 3. Tap on the program editor icon. 4. Tap on the program you want to edit. 5. Choose the required actions from: Label Action Edit the name of the folding program. Edit the packet width or fan fold. Edit the packet height or cross fold.
  • Page 30 Customize a folding program Chapter 4 - Tablet PC tutorial...

  • Page 31: Create A Folding Program

    Create a folding program Create a folding program Illustration Procedure 1. Tap on an empty slot. 2. Choose between free style (see Create or customize a free-style program on page 32) and standard program. 3. Edit the program to your needs (see Customize a folding program on page 28).

  • Page 32: Create Or Customize A Free-Style Program

    Create or customize a free-style program Create or customize a free-style program Introduction Free-style programs are used for purposes for which calculation does not lead to a desired packet. Illustration Procedure 1. Set the dimension for each layer of the fan fold. 2.

  • Page 33: Chapter 5 Online Folding

    Chapter 5 Online folding...
  • Page 34 Introduction CAUTION In most cases the title block (legend) has to be on the leading edge of the document entering the folder. The title block position has to be set in the plot software you are using. If the printer reports the size of the copy, it is possible to print A1 and A2 (C-size and D-size) in landscape orientation.

  • Page 35: Chapter 6 Trouble Shooting

    Chapter 6 Trouble shooting...

  • Page 36: Introduction To Trouble Shooting

    Introduction to trouble shooting Introduction to trouble shooting In case an issue occurs, an error code will be shown in the screen. This could be an open cover or a paper jam (as shown in the example). If there is remaining paper pinched between fold rollers or other turning parts, close the covers and press the purge button (2).

  • Page 37: How To Clean Start-Up Errors 22:Xx ⁄ 82:Xx

    How to clean start-up errors 22:xx ⁄ 82:xx How to clean start-up errors 22:xx ⁄ 82:xx Introduction After a start-up error has occurred you have to make sure that no paper is still located inside the machine. Such errors could be for example: •...

  • Page 38: Error Code List

    Error code list Error code list Introduction Location 1: Master Controller errors Communication and common errors 01:09 No response from FF 01:10 No response from CF 01:11 Cover open 01:12 License error: Map fold (panel width is smaller than 160 mm or 6.3 inches) Other communication errors 02:02 No contact to FF during initialization...
  • Page 39 Error code list Sensor errors on start-up 22:03 Sensor S3 is blocked 22:04 Sensor S4 is blocked 22:05 Sensor S5 is blocked 22:06 Sensor S0 is blocked Time out errors 26:01 No paper at sensor S1 26:07 No paper at sensor S0 26:09 No paper at S4 Location 3: Cross Folder errors...

  • Page 40: How To Use The Purge Function

    How to use the purge function How to use the purge function Introduction Symbol Type of symbol Indicates CAUTION In order to guarantee hazard-free operations it is strongly rec- ommended that any maintenance or repair work is only car- ried out by trained personnel. Ignoring this warning could cause injury or damage to property.
  • Page 42 Canon U.S.A., Inc. www.usa.canon.com Canon Canada Inc. www.canon.ca Canon Europe Ltd www.canon-europe.com Canon Latin America Inc. www.cla.canon.com Océ Australia Pty Ltd www.oce.com.au Canon China Co., Ltd www.canon.com.cn Canon Singapore Pte. Ltd www.canon.com.sg Canon Hongkong Co., Ltd www.canon.com.hk © Océ 2018...
