Summary of Contents for Denso DST-i Series

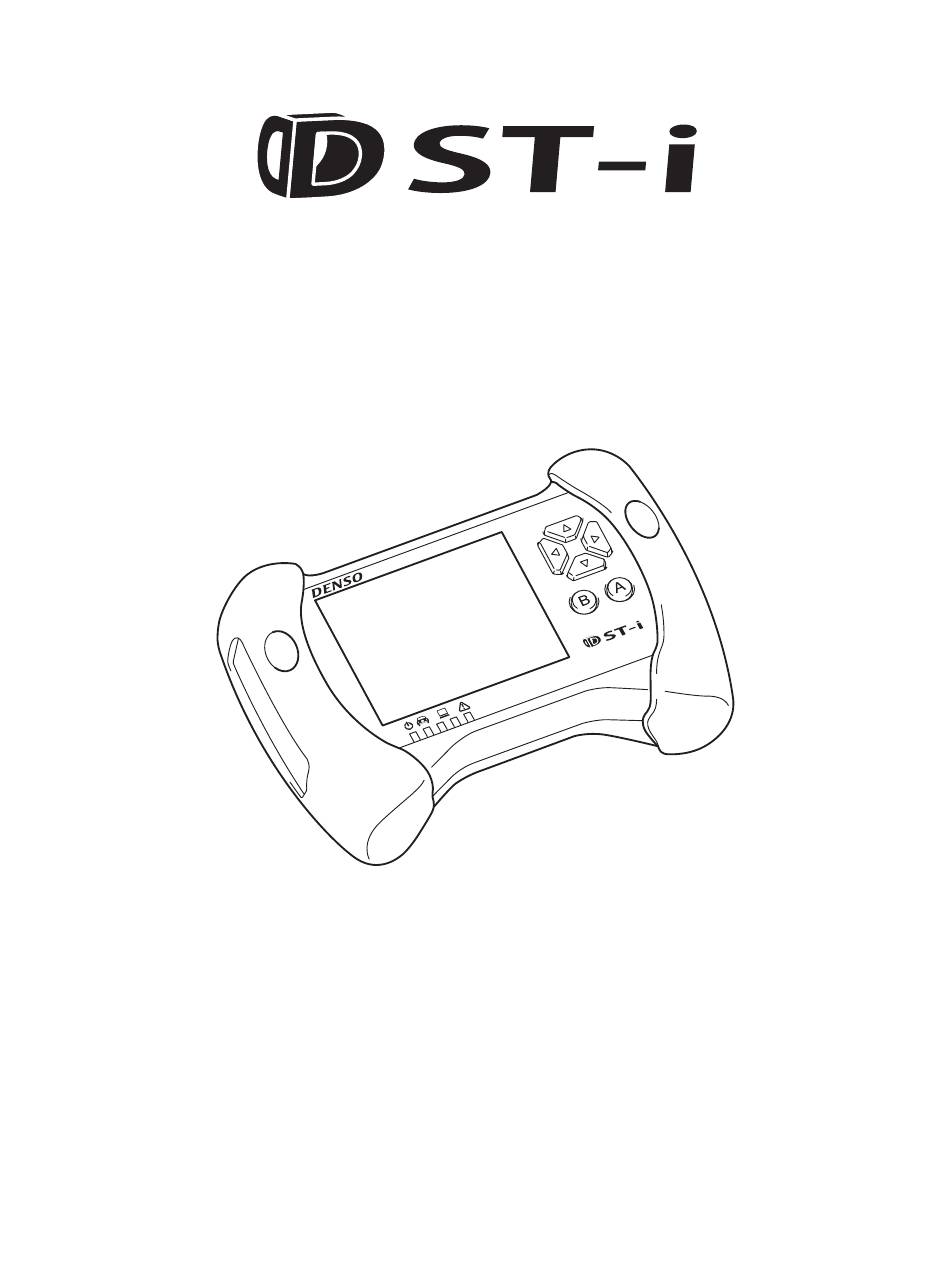

- Page 1 Instruction Manual...
-
Page 2: Table Of Contents
6-2 DENSO Sales Company . . . . . . . . . . . . . . . . . . -
Page 3: Preface
Preface Preface Thank you for purchasing this product. Before using this product, read this document carefully so that you can use this product correctly and safely. - ii -... -
Page 4: Safety Precautions
Safety Precautions Safety Precautions This document uses symbols for warnings, cautions, and prohibitions. These symbols and their meanings are as follows. Please make sure you fully understand the meanings of these symbols before reading the rest of this document. Indicates an item for which incorrect handling can result in a major accident involving WARNING death or serious injury. Indicates an item for which incorrect handling can lead to injury or damage to CAUTION property. Under certain conditions, more serious consequences may result. PROHIBITED Indicates a prohibited method of handling. MANDATORY Indicates a mandatory method of handling and a forcible item. WARNING and CAUTION for handling this product WARNING • Do not perform any work while the vehicle is running. - Doing so could result in an accident. • Always observe the following rules. Failure to do so can result in heat generation, fire, blowout, or electrical shock . - Do not disassemble or alter this product . - Do not connect this product to anything with a voltage exceeding the ratings of this product. - Page 5 Safety Precautions CAUTION • When working near the engine compartment, be careful of the engine and other high-temperature parts. - High-temperature parts can cause burns. • Do not route the cable of this product over the engine compartment, especially if the engine is running. - F ailure to follow this instruction could result in an accident by catching up the cable and clothes with the belt and pulley . • Do not use this product in an extremely dusty environment. • The LCD response time may be slow in a low temperature location . - This phenomenon is attributed to the characteristics of the LCD and not a failure . <Checking before use>...
- Page 6 Safety Precautions CAUTION • Do not insert anything other than an SD memory card in the SD memory card slot on this product. • Do not turn the power of this product OFF or remove the SD memory card while the SD memory card indicator is flashing. - Failure to do so may result in failure of the SD memory card or loss of the data in it. • Do not pull out an SD memory card when power is on . <Usage restrictions> • Do not use a datalink cable other than the dedicated datalink cable supplied with this product. • When you start this product only by USB power (BUS power), be careful not to set the PC to “low power consumption mode” / “suspend mode”.
- Page 7 Safety Precautions WARNING and CAUTION for wireless LAN (models with wireless LAN) WARNING • Do not use this product near medical devices or inside medical facilities as it may affect electronic devices with medical applications . • Make sure to keep this product at least 9 inches (22 cm) away from persons wearing a pacemaker. - Radio waves could affect the performance of pacemaker. • Do not use this product near an automatic control device such as an automatic door or a fire alarm. - Radio waves could affect its operation and result in an accident caused by malfunction. • Do not use this product in electric trains, airplanes, or places where flammable gasses are present. - Failure to do so may result in accidents. CAUTION • The communication range depends on any obstacles (i.e., human bodies, metal, walls) between this product and the wireless LAN device, and the condition of the radio wave. • An antenna is built into this product. The sensitivity of the wireless LAN communication is maximized when no obstacles exist between the connected wireless LAN device and the antenna of this product. The communication distance becomes shorter should there be obstacles between the antenna of the connected wireless LAN device and the built-in antenna of this product . • The following circumstances could affect the sensitivity of the wireless LAN communication.
- Page 8 Safety Precautions The countries where you can use the models with wireless LAN Japan, USA, Canada, Australia, New Zealand, EU (Europian Union), Thailand, Taiwan, China, India, Indonesia, Malaysia, Chile, UAE (United Arab Emirates), South Africa, Ukraine, Singapore, CU Scheme, Philippines, Argentina, Mexico, Cayman Islands, Puerto Rico, Turkey, Guatemala, Korea, Brazil, Russia * In the countries other than those above, you cannot use the models with wireless LAN. Trademarks • SD Memory Card and SDHC Memory Card are the registered trademarks of Panasonic Corporation, SanDisk Corporation in the United States and Toshiba Corporation . • Names of products and companies in this document are registered trademarks or trademarks of their owners. • TRON, iTRON and μiTRON are not the names for specific products and series of products. • TRON is an abbreviation of “The Real-time Operating System Nucleus”.
-
Page 9: Before Use
1 Before Use 1 Before Use 1-1 Product Configuration Components Model Numbers: D SCWIFI (with wireless LAN) Available for the US market only DSCUSB (without wireless LAN) Available for non-US markets Part Name Illustration Model No. Q’ty DSCWIFIEXC Main Unit DSCUSBEXC T02745Z Datalink Cable (3 meter) DSCDLCCABL T01857Z USB Cable (3 meter) DSCUSBCABL T01871Z USB Cable Lock DSCUSBLOCK T02746Z USB Spacer DSCUSBSPAC T02747Z SD Memory Card DSCSDCARD T02715Z Tool Case... -
Page 10: Names Of The Parts
1 Before Use 1-2 Names of the Parts The names of the product parts are as follows: Overall Up/Down/Right/Left keys A key B key Indicators * For detailed information about indicators, refer to "Chapter 3 Indicator/3-1 Indicator". Top side USB connector* DC jack* This option port is used for function Connector for datalink cable expansion. -
Page 11: Connection
1 Before Use 1-3 Connection Connecting to the vehicle Use the datalink cable to connect this product to the vehicle. Locate the position of the diagnostic connector of the vehicle in the vehicle repair manual of the vehicle. Connected to vehicle-side diagnostic connector. Notch (Center) Tighten the screws. T02750E NOTE • The power supply of this product is turned ON by sliding the mode switch to the ON position after connecting to the vehicle. - 3 -... -
Page 12: Connecting To A Pc
1 Before Use Connecting to a PC To connect by USB communication Use the USB cable and the USB spacer to connect this product to a PC . CAUTION • Insert the USB spacer securely to the depth of the USB cable connector . • It is necessary to install the software on a PC before connecting the USB cable to a PC. - Page 13 1 Before Use To connect by wireless LAN communication These guidelines explain how to execute necessary settings on a PC screen to use the DST-i wirelessly, register the DST-i settings, and connect to wireless LAN communication for North American models only. Please consult with your IT professional for setup and proper network setting. The following two types of communication modes are supported. However, it is recommended to setup communications through infrastructure mode. • Infrastructure mode - Allows communication between a PC and the DST-i via an access point (i.e. router). • Adhoc mode - Allows direct communication between a PC and the DST-i (peer-to-peer). NOTE • A dhoc Mode for Windows 8.1 operating system is not a standard selection. For Windows 8.1 users, please connect using infrastructure mode or through the USB connection. Your PC must be equipped with wireless LAN capability (adapter) and for infrastructure mode an appropriate access point (wireless LAN router) is necessary to properly connect the PC to the VCI; please refer to PC and/or router operation manual for proper setup . Once network connection is established through WiFi or USB, utilize the “DST-i Connection Manager” on the PC to establish DST-i communication . The available DST-i units will appear on the PC: From the available DST-i, select the appropriate serial number (S/N on the label adhered to the back of the DST-i) and “Set Default” to allow automatic connection for future interface. Once communication is established, execute the HDS application .
- Page 14 1 Before Use When connecting both the datalink cable and the USB cable at the same time Use the USB cable and the USB spacer to connect this product to a PC . 1. Loosen the screw on left side of the datalink cable . 2.
-
Page 15: Sd Memory Card
1 Before Use 1-4 SD Memory Card Inserting/removing an SD memory card This product can use an SD memory card by inserting it into the SD memory card slot. The vehicle data can be stored in the SD memory card. CAUTION • Use an SD memory card or an SDHC memory card . • This product does not support an SDXC memory card. • Use an SD memory card labeled with the SD logo mark and conforming to the SD standard. The following brand SD memory cards are recommended: Panasonic, SanDisk and Toshiba. • Not all the SD memory cards are supported on this product . Inserting an SD memory card 1. -
Page 16: Basic Operations
2 Basic Operations 2 Basic Operations 2-1 Starting 1. Connect this product and the vehicle-side diagnostic connector with the datalink cable. Reference: Page 3 Connecting to the vehicle 2. Connect this product and a PC with the USB cable . Reference: Page 4 Connecting to a PC NOTE • If you do not use a PC, you do not need to connect with the USB cable. • I f a model with wireless LAN is connected to a PC through a wireless LAN, there is no need to connect with the USB cable . -
Page 17: Indicator
3 Indicator 3 Indicator 3-1 Indicator The indicators of this product provide the following information by their illumination. [Power] indicator [Error] indicator [PC (USB)] indicator [Vehicle] indicator [PC (wireless LAN)] indicator T02755E • [Power] indicator Shows the status of power . Lights in green during power ON. • [Vehicle] indicator Shows the status of communication with the vehicle. Flashes in green during active communication. • [PC (wireless LAN)] indicator Shows the status of wireless LAN communication with the PC . Flashes in blue during active communication. -
Page 18: Product Specifications
4 Product Specifications 4 Product Specifications 4-1 Specifications of This Product Item Specifications μiTRON 32-bit RISC microcomputer Built-in Flash ROM 16 MB Memory SDRAM 16 MB EEPROM 32 KB Size 3.5 inch TFT color LCD Resolution QVGA (320 x 240 dots) Display color Max. 260000 colors Input device Operation keys 6 keys USB 2.0 x 1 IEEE802.11b / IEEE802.11g / IEEE802.11n (2.4 GHz band) Wireless LAN compliant SD memory card Slot x 1 (supporting SD and SDHC memory cards) External interface DC jack Option port for function expansion... -
Page 19: Replacement Parts
5 Replacement Components 5 Replacement Components 5-1 Replacement Components Replacement items can be purchased through the Honda or Acura Tool & Equipment Program on-line catalog. Follow the instrctions below: Honda and Acura Dealerships a. Log on to the Interactive Network (iN) b. Click on Service/Quick Links/Tool and Equipment Program c . Search for the model number Honda Distributors a. Log on to the Interactive Network (iN) b. Click on Service/Tools/Tool and Equipment Program c . Search for the model number Independent Repair Facilities a. Go to Honda Service Express at techinfo.honda.com b. Click on Honda or Acura under the “Tool & Equipment Program Online Catalogs” section of USA Resources c . -
Page 20: Warranty
. • Failure or damage from modification or negligent operation. • Replacement of external parts such as the resin case. 4. We shall have no liability for any direct or indirect damage resulting from failure or use of this product. 5. For request of repair, please contact your distributor. NOTE - Data Preservation • Recorded data in this product could be lost in repair. Please note that we shall have no liability for any damage and data preservation derived in conjunction with data loss. 6-2 DENSO Sales Company DENSO PRODUCTS AND SERVICES AMERICAS, INC. Sales: Address: 3900 Via Oro Avenue, Long Beach, California 90810, U.S.A. Tel: +310-834-6352 Fax: +310-952-7406 Service: Tel: +310-834-6352 Fax: +310-952-7599 - 12 -... -
Page 21: Regulatory Information
7 Regulatory Information 7 Regulatory Information 7-1 Regulatory Information MODEL : DN-VIM-101 1. EMC and Radio Regulation in U.S.A. <Model with WLAN, Model without WLAN> FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE: This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the device is operated in a commercial environment. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. <Model with WLAN> CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 2. EMC and Radio Regulation in CANADA <Model with WLAN>... - Page 22 Cet équipement est en conformité avec les limites d’exposition aux rayonnements IC précédemment énoncées dans un environnement non contrôlé et répond aux règles d’exposition aux radiofréquences (RF) IC définies par RSS-102. Parce qu’il bénéficie de très faibles niveaux d’énergie RF, cet équipement a été jugé conforme sans qu’il soit nécessaire de procéder à une évaluation de l’exposition permissive maximale (MPE). Toutefois, il est recommandé que cet équipement soit installé et opéré en prenant soin que le radiateur soit à une distance minimum de 20 cm de toute personne se trouvant dans sa périphérie (à l’exclusion des extrémités corporelles suivantes: mains et poignets et, pieds et chevilles). Co-implantation: Cet émetteur ne doit pas être co-implanté ou exploité conjointement avec une autre antenne ou émetteur. 3. Radio Regulation in MEXICO <Model with WLAN> DST-i MARCA : DENSO CORPORATION MODELO : DN-VIM-101 COFETEL : RCPDEDN15-0306 Módulo WLAN instalado adentro de esta computadora La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada . - 14 -...
- Page 23 LA990009-2862 Instruction Manual © 2016 DENSO March, 2016...
