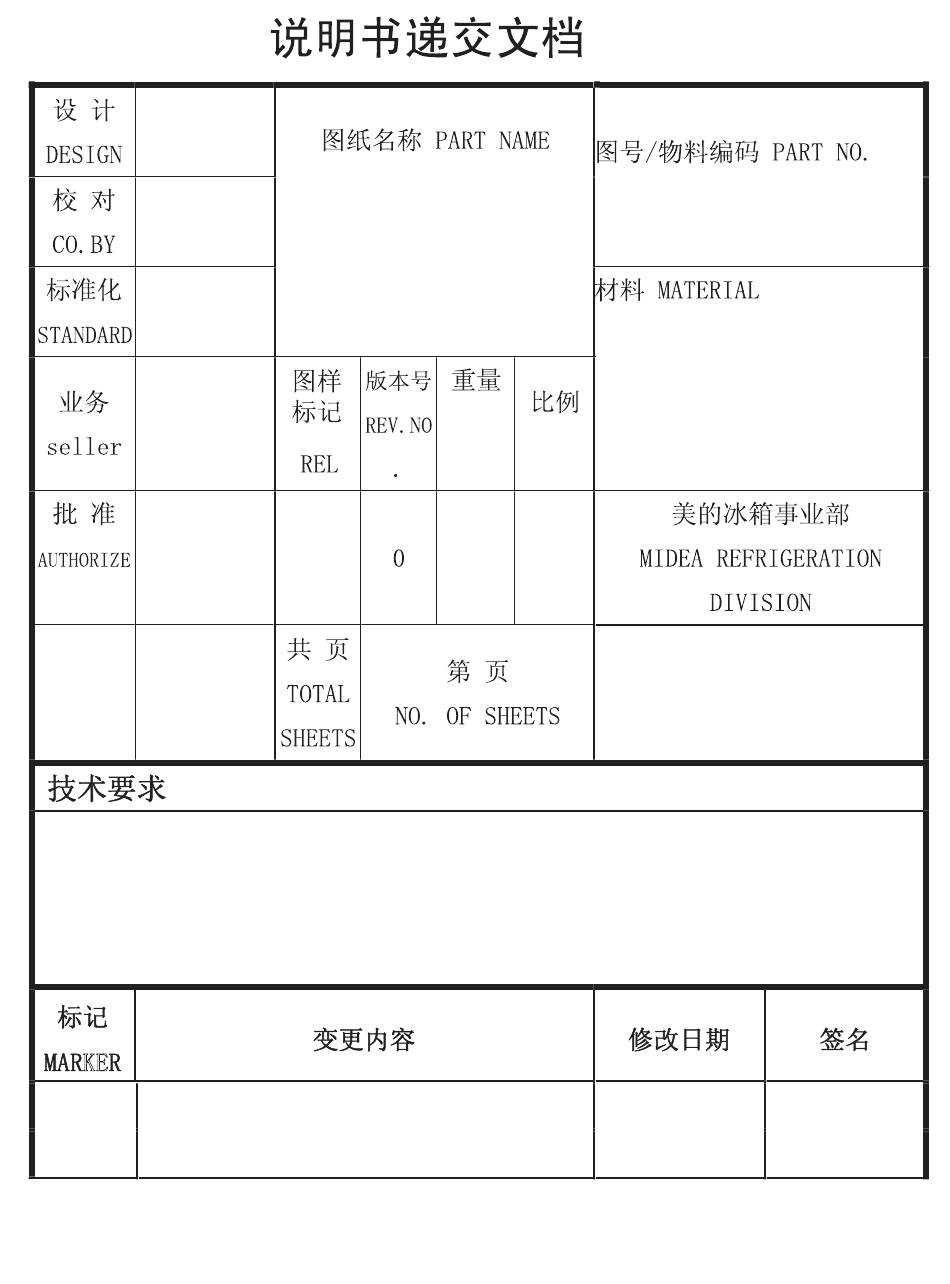

- Page 1 黄志胜 2015.10.08 50200101E694 RMI2160XSAB0 RMI2160XSAX0 16131000A05505 SO-BCD595W-T 80g双胶纸 张成 scale 曾磊 1、 尺寸：16K。36P 2、 油墨颜色为黑色:黑白印刷，印刷应清晰，不能有印刷缺陷。 3、 切边应成直角，不能歪斜。 4、 样板需送设计部门认可方可生产。 自MO-286848封面添加二维码， 2016.12.26 黄志胜 页码18、33参数。 朱昭炫 2017.09.12 更新封面二维码，自MO-450749更新...
-
Page 4: Table Of Contents
contents 1. SAFETY WARNINGS ................4 2. INSTALLATION ..................5 2.1 Location ................... 5 2.2 Reversing the Door Swing .............. 5 2.3 Door Space Requirements ............. 12 2.4 Levelling the Unit ................12 2.5 Cleaning Before Use ..............13 2.6 Before Using Your Unit ..............13 2.7 Interior Accessories ................ -
Page 5: Safety Warnings
1. Safety Warnings WARNING: • Keep ventilation openings, in the appliance en- closure or in the built-in structure, clear of obstructions. WARNING: • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. -
Page 6: Installation
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF. 2. INSTALLATION 2.1 Location When selecting a location for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. - Page 7 Tools You Will Need Phillips screwdriver 1/5" Socket and ratchet Masking tape Putty knife and thin-blade screwdriver Remove Freezer Door 1. Remove all food from the inner door liner. 2. Tape the door shut with masking tape. 3. Remove one screw and hinge cover on top of the freezer door with a Phillips screwdriver.
- Page 8 Remove Refrigerator Door 1. Remove all food from the inner door liner. 2. Tape the door shut with masking tape. 3. Remove the center hinge by removing 3 hinge screws with a 1/5" socket and ratchet. Lift the hinge pin up and out of the door. 4.
- Page 9 Transfer Door Stops On each door, move the metal door stop from the right to the left. Move any screws from the left to the right with a Phillips screw- driver. Reversing Door Handles – Transfer Freezer Door Handle to the Right Side of the Refrigerator Door 1.
- Page 10 4. Insert the mounting screw into the surface of the right side of the refrigerator door with a Phillips screwdriver. 5. Align the handle with the mounting screw. 6. Push the handle down. 7. Secure the top end of the handle by inserting two screws and tightening them with a Phillips screwdriver.
- Page 11 Reversing Door Handles – Transfer Refrigerator Door Handle to the Right Side of Freezer Door 1. Remove the two screws securing the top end of the handle with a Phillips screwdriver. 2. Rotate the handle out and lift off of the mounting screw on the refrigerator door.
- Page 12 7. Secure the bottom end of the handle by inserting two screws and tightening them with a Phillips screwdriver. NOTE: Do not overtighten. Rehang the Refrigerator Door 1. Lower the refrigerator door onto the bottom hinge pin. 2. Screw the 4 screws into the center hinge location on the left side with a 1/5"...
-
Page 13: Door Space Requirements
Hang the Freezer Door 1. Lower the freezer door onto the center hinge pin. Be sure the washer is in place. 2. Lift the top hinge so the pin fits into the door socket. Support the door on the handle side and make sure the door is straight and the gap between the doors is even across the front. -
Page 14: Cleaning Before Use
2.5 Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing them in the unit. -
Page 15: Interior Accessories
2.7 Interior Accessories Various glass or plastic storage shelves are included with your appli- ance - different models have different combinations. You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. -
Page 16: About The Controls On The Refrigerator
4. About the Controls on the Refrigerator 4.1 Control Settings Initially, set the refrigerator control to the recommended setting. Al- low 24 hours for the temperature to stabilize. Several adjustments may be required. Adjust the refrigerator control one increment at a time and allow 12 hours after each adjustment for the refrigerator to reach the temperature you have set. -
Page 17: Maintenance
6. Maintenance 6.1 Changing the Internal Light Setting the refrigerator control to off does not remove power to the light circuit. CAUTION: Light bulb may be hot. Illuminating LED parameter: MAX 2W 1. Unplug the refrigerator. 2. The LED is located at the top of the compartment near the open- ing. -
Page 18: Troubleshooting
7. Troubleshooting The following simple issues can be handled by the user. Please call the after-sales service department if the issues are not settled. Inoperation • Whether the freezer is plugged and con- nected to power; • Low voltage; • Failure power or tripping circuit. Odor •... - Page 19 technical data Rated gross volume (L) Rated shelf area (cm2) 11828 Electric power consumption 1.067 in kw·h per 24 hour run (kW·h) Percentage running time (%) Ice quantity produced per 24 hour run (g) Defrosting current (A) Defrosting power (W) Voltage (V) Frequency (Hz) Electric Diagram...
- Page 34 RMI2160XSAB0, RMI2160XSAX0 11828 1.067 Light Switch Thermostat Fuse Defrost Heater Bimetal Defrost Timer F-Fan C-Fan Run Capacitor Compressor Overload Protector...
