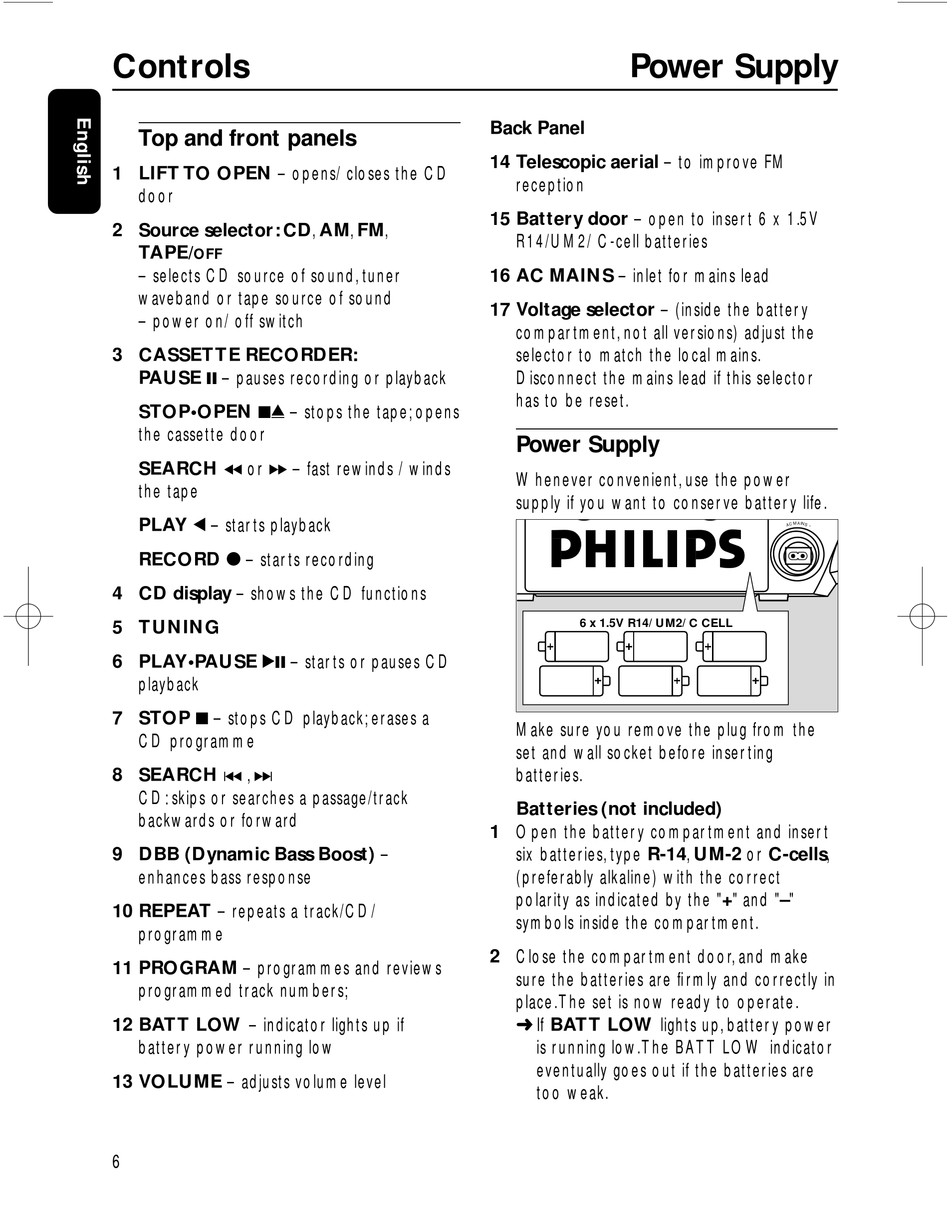

Controls

Top and front panels

1 LIFT TO OPEN – opens/ closes the CD
door
2 Source selector: CD, AM, FM,
TAPE/
OFF
– selects CD source of sound, tuner
waveband or tape source of sound
– power on/ off switch
3 CASSETTE RECORDER:
PAUSE ; – pauses recording or playback
STOP•OPEN 9/ – stops the tape; opens
the cassette door
SEARCH 5 or 6 – fast rewinds / winds
the tape
PLAY 1 – starts playback
RECORD 0 – starts recording
4 CD display – shows the CD functions
5 TUNING
6 PLAY•PAUSE 2; – starts or pauses CD
playback
7 STOP 9 – stops CD playback; erases a
CD programme
8 SEARCH ∞ , §
CD: skips or searches a passage/track
backwards or forward
9 DBB (Dynamic Bass Boost) –
enhances bass response
10 REPEAT – repeats a track/CD/
programme
11 PROGRAM – programmes and reviews
programmed track numbers;
12 BATT LOW – indicator lights up if
battery power running low
13 VOLUME – adjusts volume level
6

Power Supply

Back Panel
14 Telescopic aerial – to improve FM
reception
15 Battery door – open to insert 6 x 1.5V
R14/UM2/ C-cell batteries
16 AC MAINS – inlet for mains lead
17 Voltage selector – (inside the battery
compartment, not all versions) adjust the
selector to match the local mains.
Disconnect the mains lead if this selector
has to be reset.
Power Supply
Whenever convenient, use the power
supply if you want to conserve battery life.
6 x 1.5V R14/ UM2/ C CELL
Make sure you remove the plug from the
set and wall socket before inserting
batteries.
Batteries (not included)
1 Open the battery compartment and insert
six batteries, type R-14, UM-2 or C-cells,
(preferably alkaline) with the correct
polarity as indicated by the "+" and "–"
symbols inside the compartment.
2 Close the compartment door, and make
sure the batteries are firmly and correctly in
place.The set is now ready to operate.
If BATT LOW lights up, battery power
is running low.The BATT LOW indicator
eventually goes out if the batteries are
too weak.
