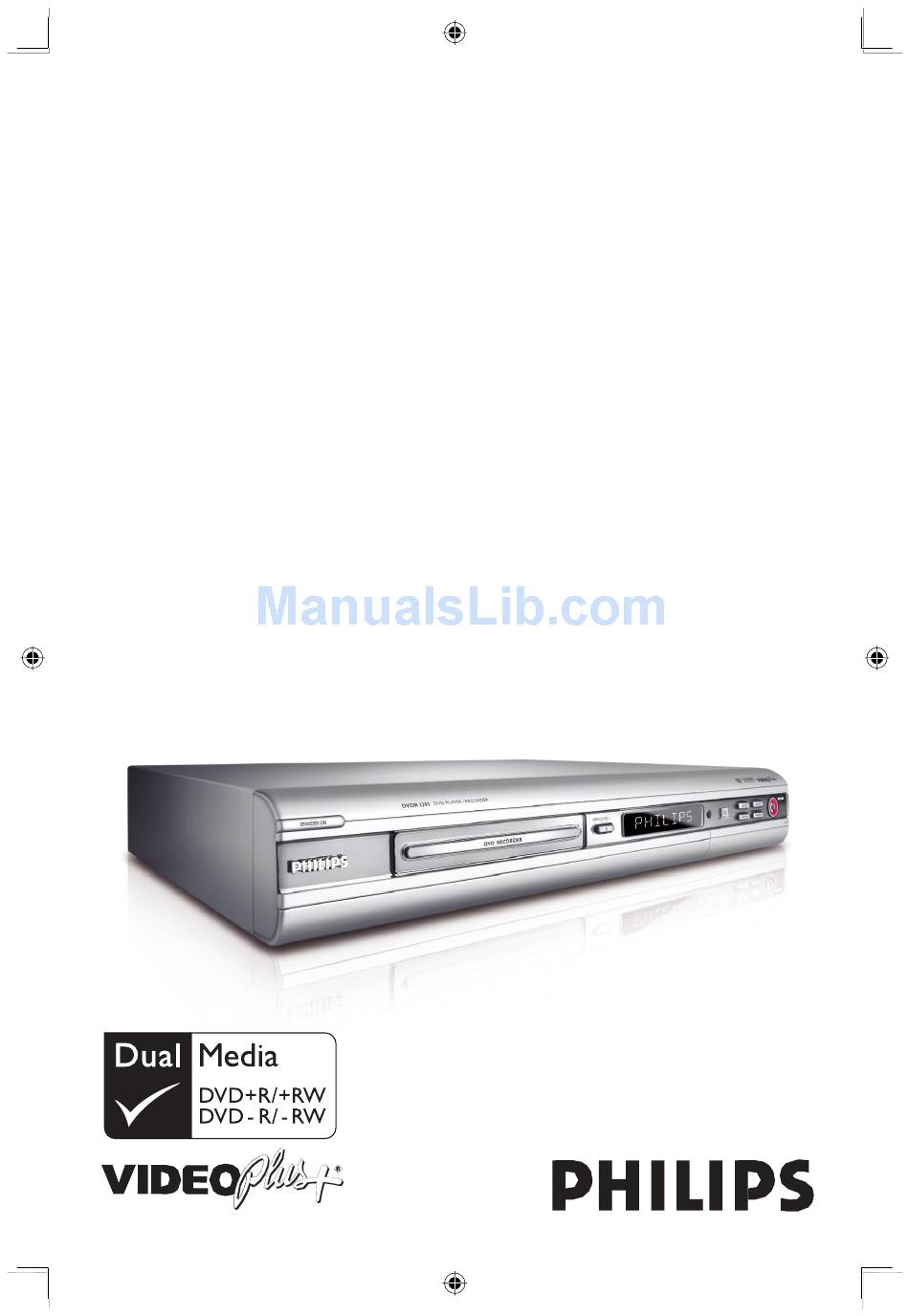

DVD Player/ Recorder
User Manual
Read your Quick Use/Start Guide and/or User Manual first for quick
tips that make using your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
1_dvdr3305_05_eng_16862.indd 1
1_dvdr3305_05_eng_16862.indd 1
Thank you for choosing Philips.
Need help fast?
DVDR3305
2005-10-31 4:59:38 PM
2005-10-31 4:59:38 PM
PB
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Philips DVDR3305/05B
Summary of Contents for Philips DVDR3305/05B
- Page 1 Thank you for choosing Philips. Read your Quick Use/Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support 1_dvdr3305_05_eng_16862.indd 1...
- Page 2 1_dvdr3305_05_eng_16862.indd 2 1_dvdr3305_05_eng_16862.indd 2 Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio DVDR3305, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven Philips Consumer Electronics Philips, Glaslaan 2 5616 JB Eindhoven, The Netherlands Norge Typeskilt fi nnes på...
- Page 3 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
- Page 4 CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE.
- Page 5 This product complies with the radio interference requirements of the European Community. This product complies with the requirements of the following directives and guidelines: 73/23/EEC + 89/336/EEC + 93/68/EEC LASER Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 30 mW (DVD±RW write)
- Page 6 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. This product incorporates copyright protection technology that is protected by US patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
-
Page 7: Frequently Asked Questions
What kind of disc should I use for recording? You can only record on DVD±R and DVD±RW discs. DVD±R/±RW is the most compatible recordable DVD format on the market today. They are fully compatible to most of the existing DVD-Video players and DVD-ROM drives in computers. -
Page 8: Table Of Contents
Contents Frequently Asked Questions ... 7 Care and Safety Information Setup precautions ... 10 Cleaning discs ... 10 About recycling ... 10 General Information ... 11 Introduction ...11 Accessories supplied ...11 Region codes ...11 Copyright notice ...11 Basic Connections - DVD recorder Step 1: Connecting the antenna cables 12 Step 2: Connecting the video cable ...13 Option 1: Using a Scart cable ...13... - Page 9 About title editing ... 37 Accessing title editing menu ... 37 Video editing ...37 Rename title ...38 Erase title ...38 Overwrite title (DVD±RW only) ...38 Overwrite from the selected title ...38 Append recording ...38 About video editing ... 39 Accessing video editing menu ... 39 Selecting a title ...
-
Page 10: Care And Safety Information
Care and Safety Information CAUTION! High voltage! Do not open the device. You run the risk of getting an electric shock. The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualifi ed personnel. Setup precautions Finding a suitable location –... -
Page 11: General Information
Introduction Your Philips DVD recorder allows you to record the TV programmes or duplicate camcorder recordings to a DVD±RW or DVD±R and play pre-recorded DVDs. The recordings you make on the recorder will play on most of the DVD players and DVD-ROM drives. The DVD±R discs have to be fi nalised before... -
Page 12: Step 1: Connecting The Antenna Cables
Basic Connections - DVD recorder RF / TV RF / TV VCR/Cable Box/ Satellite Receiver Step 1: Connecting the antenna cables These connections enable you to watch and record TV programmes using the DVD recorder. If the antenna signal is connected via a VCR, Cable Box or Satellite Receiver, ensure that these devices are turned on in order to watch... -
Page 13: Basic Connections - Dvd Recorder
Basic Connections - DVD recorder Option 1 S-V ID E O AU D IO O U T V ID E O IN Step 2: Connecting the video cable This connection enables you to view the disc playback from the DVD recorder. You only need to choose one of the options below to make your video connection. -
Page 14: Step 3: Connecting The Audio Cables
Basic Connections - DVD recorder STEREO / TV Step 3: Connecting the audio cables This connection enables you to listen to the sound. This connection is not required if the DVD recorder is connected to the TV using the scart cable. Option 1: Using an audio cable You can connect the DVD recorder to a two channel stereo system or receiver in... -
Page 15: Optional Connections
Antenna/ cable TV signals Connecting to a Cable Box or Satellite Receiver Option 1 If your Cable Box/ Satellite Receiver has only an antenna output socket (RF OUT or TO TV), refer to “Connecting the antenna cables” on page 12 for the complete connection to your TV. -
Page 16: Connecting To A Vcr Or Other Similar Device
Optional Connections VHF/UHF RF IN Antenna/cable VHF/UHF RF OUT TV signals Connecting to a VCR or other similar device This connection enables you to record from video tape to a DVD±R/±RW and allows the VCR to be used for playback if the DVD recorder is turned off. -
Page 17: Connecting To A Vcr And Cable Box/Satellite Receiver
Antenna/cable TV signals VHF/UHF VHF/UHF RF OUT Connecting to a VCR and Cable Box/ Satellite Receiver Connect the Antenna/ Cable TV signal to the antenna input (RF IN) socket on the Cable Box/ Satellite Receiver. Use the supplied RF coaxial cable to connect the antenna output (RF OUT) socket on the Cable Box/ Satellite Receiver to the ANTENNA... -
Page 18: Connecting A Camcorder To The Front Sockets
Optional Connections Connecting a camcorder to the front sockets You can use the front sockets to copy camcorder recordings. These sockets are located behind the fl ap on the right hand side and provides convenient connections for a camcorder. Using S-VIDEO In or VIDEO In socket Use the S-VIDEO connection if you have a Hi8 or S-VHS(C) camcorder. -
Page 19: Main Unit
a STANDBY-ON – Turns on or off the DVD recorder. b Disc tray ç c OPEN CLOSE – Opens/ closes the disc tray. d System display panel – Show information about the current status of the DVD recorder. PREV / NEXT –... -
Page 20: Remote Control
Remote Control 1_dvdr3305_05_eng_16862.indd 20 1_dvdr3305_05_eng_16862.indd 20 a STANDBY-ON – Turns on the DVD recorder or to standby mode. b TIMER – Enters/ exits the timer recording menu. c SYSTEM-MENU – Enters/ exits the system menu. : Cursor buttons for moving to the left or right, do a forward/ reverse search. - Page 21 m Numeric keypad – Selects a chapter/ track number to play. – Selects the recorder’s preset TV tuner channel. n REC SOURCE – Selects the recorder’s input source. o DISC-MENU – Access DVD disc menu or Index Picture screen of a DVD±R/±RW. –...
-
Page 22: Getting Started
Getting Started Step 1: Inserting Batteries Open the battery compartment. Insert two batteries type R06 or AA, following the indications (+-) inside the compartment. Close the cover. CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. -
Page 23: Step 3: Select The Country Of Your Residence
Step 3: Select the country of your residence Select the country of your area for auto channel tuning. Press SYSTEM-MENU on the remote control. The system menu appears on the TV. keys to highlight { System Menu - General } and press System Menu - General Screen Saver Country... -
Page 24: Modifying Channel Information
Getting Started Modifying Channel Information You can set a TV channel to your preference and improve the reception and the sound quality of the TV channel. Press SYSTEM-MENU. The system menu appears. keys to highlight Menu - Channel Setup } and press keys to highlight { Modify Channel Information } and press OK. -
Page 25: Sorting The Tv Channels
Sorting the TV channels You may not agree with the sequence in which the individual TV channels have been allocated to the programme numbers. You can use this function to rearrange all the stored TV channels. Press SYSTEM-MENU. The system menu appears. keys to highlight { System Menu - Channel Setup } and press... -
Page 26: Step 6: Setting The Time & Date
Getting Started Step 6: Setting the time & date If the DVD recorder has not set the time and date correctly, set the clock manually by following the steps below. Press SYSTEM-MENU. The system menu appears. keys to select { System Menu - Clock } and press to confi rm. -
Page 27: Recording
Discs for recording Several different formats of DVD recordable discs can be used with this DVD recorder: DVD±RW (DVD Rewritable) – Discs that are re-writable can be used for multiple recordings once existing data is erased. DVD±R (DVD Recordable) – Discs can only be used for a single recording. -
Page 28: Auto Chapter Markers
Recording (continued) Auto Chapter Markers You can insert chapter markers within a title during recording. This enables you to access specifi c points on the recorded disc as you would choose a chapter on other DVDs. keys to select { Auto Chapter Marker } and press to access its options. -
Page 29: Manual Recording
Manual recording Use this feature to start recording immediately (e.g., to record a TV show already in progress). SOURCE STOP Turn on the TV power. Select the correct Video In channel at the TV. Insert a recordable DVD±R/±RW into the DVD recorder. Press REC SOURCE on the remote control to select { Tuner }, then use keys to select the TV channel you... -
Page 30: About Timer Recording
Recording (continued) About timer recording Use ‘Timer Recording’ to automatically start and stop a recording at a later date/ time. The DVD recorder will tune to the right programme channel and begin recording at the specifi ed time. With this DVD recorder, you can preprogramme up to 8 recordings. -
Page 31: Setting A Timer Recording From An External Cable Box/Satellite Receiver
{ Source } – Use keys to select the recording input source. { Rec Mode } – Use keys to select your option. See pages 27~29 on “Recording settings - Default Recording mode”. { Mode } – Use keys to select { Once }, { Daily }, { Weekly }, { Mon-Fri } (Monday to Friday, ) { Mon-Sat } (Monday to Saturday) or { Weekend }... -
Page 32: Timer Recording (Video Plus+ System)
Recording (continued) Timer recording (VIDEO ® Plus+ System) This is a simple programming system for DVD recorders. To use it, enter the VIDEO Plus+ ® programming number associated with your television programme. You can fi nd this number in your TV listings magazine. All the information needed by the DVD recorder for programming is contained in the programming number. -
Page 33: Changing/Deleting A Timer Recording
Changing/ Deleting a timer recording Turn on the TV power. Select the correct Video In channel at the TV. Press TIMER on the remote control. The timer schedule list appears. Timer Schedule Source RecMode Date Start CH003 2 Hour Mode 14/01/05 14.00 CH010 1 Hour Mode 25/01/05... -
Page 34: Editing/Finalising Recording
Editing/Finalising Recording About disc editing This DVD recorder offers various disc edit options for various disc types. You can change the disc content and settings of a recorded DVD±R/±RW from the disc editing menu. The edited contents may not be available when you play the disc on an another DVD player. -
Page 35: Rename Disc
Editing/Finalising Recording Rename disc The original disc name is generated automatically by the DVD recorder. You can change the disc name by following the steps below. Press TOP MENU, use select { Rename Disc } and press OK. The keyboard screen appears. keys to highlight a character on the keyboard and press OK to select. -
Page 36: Make Compatible (Dvd±Rw Only)
Editing/Finalising Recording Make compatible (DVD±RW only) The edited DVD±RW may still display the original titles or hidden scenes when playbacked on other DVD players. This function ensures that the edited changes of the DVD±RW remain when played back on other players. Press TOP MENU, use select { Make Compatible } and press OK to confi rm. -
Page 37: About Title Editing
Editing/Finalising Recording About title editing You can change the individual title information or delete a title (recording) on a recorded DVD±R/±RW. If a DVD±R has been fi nalised, it cannot be edited. The displayed options in the title editing menu differ depending on the situation and disc type. -
Page 38: Rename Title
Editing/Finalising Recording Rename title The original title name is generated automatically by the DVD recorder. You can give a new name to the title by following the steps below. In title editing menu, use select { Rename Title } and press OK. The keyboard screen appears. -
Page 39: About Video Editing
Editing/Finalising Recording About video editing After a recording has been made, this DVD recorder allows you to edit the video content. You can add/delete chapter markers, hide unwanted scenes, change the picture in the index picture screen and split one title (recording) into two. When you playback a recording in video edit mode, the entire recording will be played back including hidden scenes. -
Page 40: Selecting A Title
Editing/Finalising Recording Selecting a title It shows the current title and the total number of titles in the disc. It also allows you to select another title. During playback, press EDIT to display the video editing menu, then use keys to select { Title } and press Use the numeric keypad 0-9 to key in a title and press OK. -
Page 41: Hiding An Unwanted Chapter
Editing/Finalising Recording Hiding an unwanted chapter You can choose to hide certain scenes from playback (e.g. skipping a commercial scene) or make it visible again. Create a chapter marker at the scene you are going to hide. (See previous page on “Creating chapter marker”). -
Page 42: Playback
Playback Playable discs Using this DVD Recorder, you can play and record on the following discs: Recording and Playback DVD±RW (DVD ReWritable); can be recorded on repeatedly. DVD±R (DVD Recordable); can be recorded on only once. Playback only: DVD Video (Digital Versatile Disc) CD-RW (CD-ReWritable) Audio/ MP3/ JPEG contents... -
Page 43: Starting Disc Playback
Starting disc playback Playback will begin automatically. If the disc has its own menu this will be loaded, otherwise the DVD recorder will launch an index screen. If the pin code entry dialog appears on the TV, this means that the parental control was activated for the inserted disc (see page 53). -
Page 44: Playing A Dvd±R/±Rw Disc
Playback (continued) Playing a DVD±R/±RW disc Insert a DVD±R/±RW disc. The Index Picture screen appears. keys to select a title and press PLAY to start playback. To stop playback, press STOP Helpful Hint: – If the message ‘BLANK’ appears on the display panel, this means that there are no recordings on this disc. -
Page 45: Playing A Picture Disc (Or Musical Slide Show)
Playing a picture disc (or musical slide show) You can display JPEG pictures in the selected roll automatically one after the other. Insert a JPEG picture disc (CD, CD-R/RW, DVD±R/±RW). The disc content menu appears. keys to navigate within the menu and press OK to access the folder/ album. -
Page 46: Additional Playback Features
Additional Playback Features Changing to another title/ chapter/ track When a disc contains more than one track, title or chapter, you can change to a different track, title or chapter as follows. During playback, Press to go to the next title/ chapter/ track. -
Page 47: Using T/C Options
Additional Playback Features Using T/C options During playback, press T/C on the remote control. The T/C menu appears on the TV. Mode Normal Trick mode Play Title 02/05 Chapter 01/22 Audio 01/02 - OTH Subtitle Angle 01/03 T- Time 00:22:03 - 00:27:24 keys to select the setting you want to adjust. -
Page 48: Programming Disc Tracks
Additional Playback Features Programming disc tracks You can play the contents of the disc in the order you want by programming the tracks to be played. Press T/C on the remote control. The T/C menu appears. Select { Mode } > { Program }. The programme menu appears. -
Page 49: Changing Subtitle Language
Additional Playback Features Changing subtitle language This operation works only on DVDs with multiple subtitle languages, you can change the language you want while playing the DVD. This function can be also accessed via the SUBTITLE button on the remote control. Press T/C on the remote control. -
Page 50: Dvd System Menu Options
DVD System Menu Options Accessing System Menu - General Press SYSTEM-MENU on the remote control. The system menu appears on the TV. keys to select Menu - General } and press access its options. System Menu - General Screen Saver Country Video Output Format Restore Factory Settings... -
Page 51: Video Output Format
DVD System Menu Options Video Output Format The colour system of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the colour system of your TV. In ‘System Menu-General’, use to select { Video Output Format } and press OK. -
Page 52: Accessing System Menu -Playback
DVD System Menu Options Accessing System Menu - Playback Playback settings can only be changed when there is no disc in the disc tray. Press SYSTEM-MENU on the remote control. The system menu appears on the TV. keys to select { System Menu - Playback } and press options. -
Page 53: Parental Rating Level
DVD System Menu Options Parental rating level Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature allows you to set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. -
Page 54: Setting Or Changing The Password
DVD System Menu Options Setting or changing the password You need to enter your four-digit password to play a prohibited disc or if prompted for a pin code. In ‘System Menu-Playback’, use to select { Parental Rating Level } and press OK. -
Page 55: Accessing System Menu - Record
DVD System Menu Options Accessing System Menu - Record See pages 27~29 on “Recording settings”. Accessing System Menu - Language See page 25 on “Setting the language”. Accessing System Menu - Channel Setup See pages 23~25 on “TV channel programming”. Accessing System Menu - Clock Date and Time... -
Page 56: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power. -
Page 57: Troubleshooting
Problem No picture. The picture is distorted or black and white during playback. Recordings are not occurring as scheduled. New recordings cannot be made. No TV signal received from the DVD recorder. A DVD±R/±RW recorded on this DVD recorder does not play on a DVD player. -
Page 58: Specifi Cations
Specifi cations Picture/Display • Aspect ratio: 4:3, 16:9 • D/A converter: 10 bit, 54 MHz • A/D converter: 10 bit, 54 MHz Sound • D/A converter: 24 bit, 96 kHz • A/D converter: 24 bit, 96 kHz • Signal to noise ratio: 106 •... -
Page 59: Glossary
Analogue: Sound that has not been turned into numbers. Analogue sound varies, while digital sound has specifi c numerical values. These sockets send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. -
Page 60: Tv System Guide
TV System Guide COUNTRY AFGHANISTAN ALBANIA ALGERIA ANGOLA ARGENTINA AUSTRALIA AUSTRIA AZORES BAHAMAS BAHRAIN BANGLADESH BARBADOS BELGIUM BERMUDA BOLIVIA BOTSWANA BRAZIL BRUNEI BULGARIA BURKINA FASO BURMA BURUNDI CAMBODIA CAMEROON CANADA CANARY ISLANDS CHAD CHILE CHINA COLOMBIA COSTA RICA CROATIA CUBA CYPRUS CZECH REPUBLIC DAHOMEY... - Page 61 COUNTRY LIBYA LITHUANIA PAL D (was SECAM) LUXEMBOURG MADAGASCAR MADEIRA MALAGASY MALAWI MALAYSIA MALI MALTA MARTINIQUE MAURITANIA MAURITIUS MEXICO MONACO MONGOLIA MOROCCO MOZAMBIQUE NAMIBIA NEPAL NETHERLANDS NETH. ANTILLES NEW CALEDONIA NEW GUINEA NEW ZEALAND NICARAGUA NIGER NIGERIA NORWAY OMAN PAKISTAN PANAMA PARAGUAY PERU...
- Page 62 1_dvdr3305_05_eng_16862.indd 62 1_dvdr3305_05_eng_16862.indd 62 Meet Philips at the Internet http://www.philips.com/support DVDR3305 CLASS 1 LASER PRODUCT 3139 246 16862 SgpJP-0544/05-1 2005-10-31 5:00:11 PM 2005-10-31 5:00:11 PM...
