Philips HTS5510C/75 User Manual

Philips 5 dvd/cd changer home theater hts5510c
Hide thumbs Also See for HTS5510C/75:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

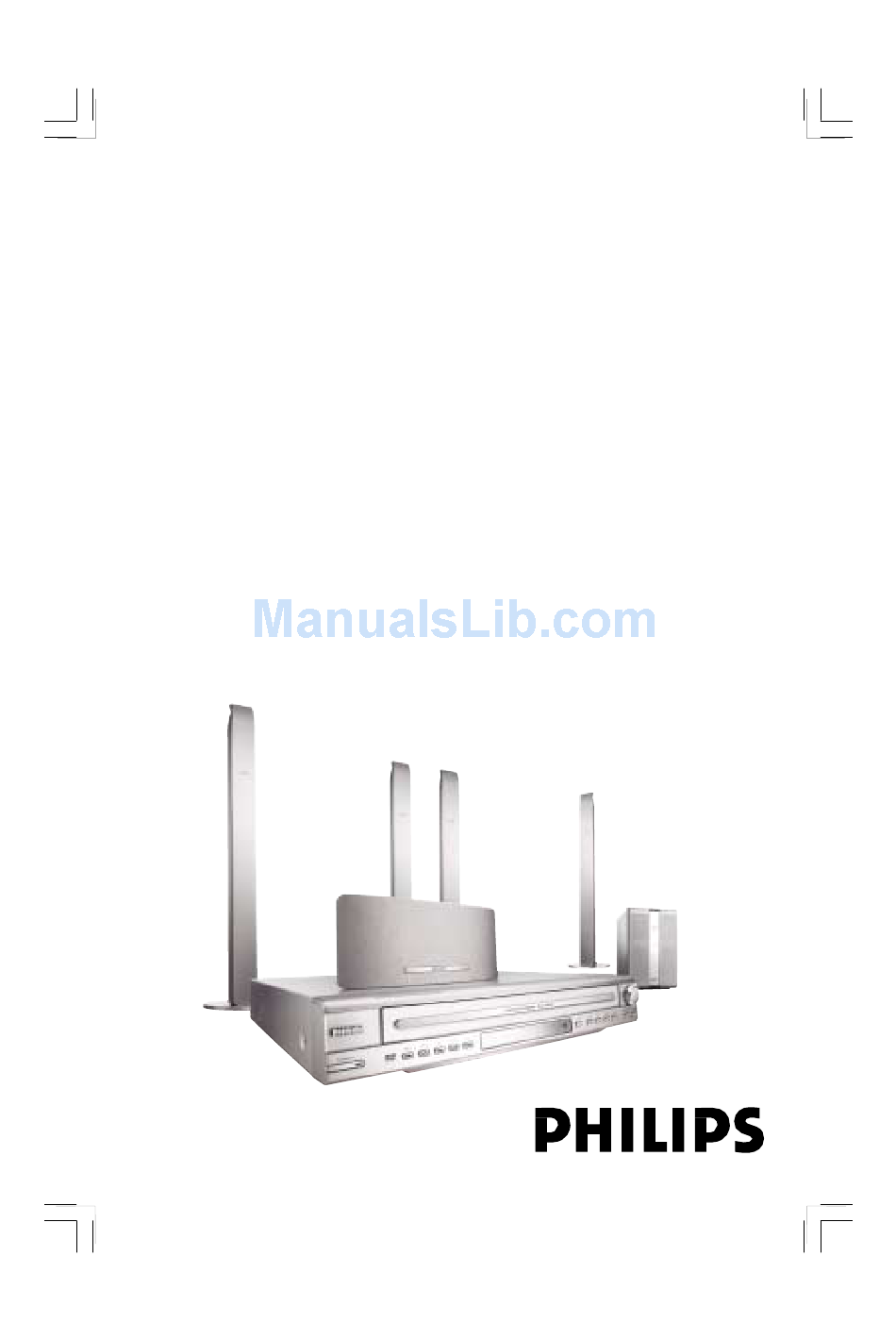

DVD HOME THEATER SYSTEM
HTS5510C
Thank you for choosing Philips.
Need help fast?
Read your Quick-Start Guide and/or User Manual first for quick
tips that make using your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
1

Advertisement

Table of Contents
loading

Related Manuals for Philips HTS5510C/75

Summary of Contents for Philips HTS5510C/75

  • Page 1 Need help fast? Read your Quick-Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support...
  • Page 2 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved. As an ENERGY STAR ® partner; Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE.

  • Page 3: Language Code

    Abkhazian 6566 Inupiaq Afar 6565 Irish Afrikaans 6570 Íslenska Amharic 6577 Italiano Arabic 6582 Ivrit Japanese Armenian 7289 Assamese 6583 Javanese Avestan 6569 Kalaallisut Aymara 6589 Kannada Azerhaijani 6590 Kashmiri Bahasa Melayu 7783 Kazakh Bashkir 6665 Kernewek Khmer Belarusian 6669 Bengali 6678 Kinyarwanda...

  • Page 4: Table Of Contents

    Contents Language Code General Information Supplied accessories ... 6 Care and safety information ... 6 Connections Step 1: Set-up the speakers ... 7 Step 2: Placing the speakers and AV subwoofer ... 7 Step 3: Connecting the DVD system, speakers and AV subwoofer ... 8 Step 4: Connecting TV ...
  • Page 5 Switching to an active mode ... 39 Switching to Eco Power standby mode ... 39 Using the remote to operate your ‘Philips’ television ... 39 Setting the Sleep timer ... 39 Tuner Operations Tuning to radio stations ... 40 Presetting radio stations ... 40 Using the Plug and Play ...

  • Page 6: General Information

    General Information Supplied accessories Composite video cable (yellow) Audio cables (red/white) Interconnect cable FM wire antenna MW loop antenna Remote control and two batteries (12nc: 3139 258 70091) Cleaning discs To clean a disc, use a micro fibre cleaning cloth and wipe the disc from the center to the edge in a straight line.

  • Page 7: Connections

    Step 1: Placing the speakers and subwoofer For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position. Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees from the listening position.

  • Page 8: Step 3: Connecting The Dvd System, Speakers And Av Subwoofer

    Connections (continued) Step 2: Connecting the DVD system, speakers and AV subwoofer VIDEO OUT S-VIDEO COAXIAL DIGITAL IN COMPONENT VIDEO TV-IN AUX-IN LINE-OUT TO AV SUBWOOFER FRONT L TO AV SUBWOOFER Front Left Speaker CENTER Center Speaker Front Right Speaker Connect the supplied speaker to the rear of the AV subwoofer using the fixed speaker cables by matching the colours of...

  • Page 9: Step 4: Connecting Tv

    Step 3: Connecting to TV VIDEO AUDIO VIDEO OUT S-VIDEO COAXIAL DIGITAL IN VIDEO TV-IN AUX-IN LINE-OUT TO AV SUBWOOFER IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your TV. –...

  • Page 10: Using Component (Y Pb Pr) Video Jack

    Connections (continued) Step 4: Connecting to a Progressive Scan TV (optional) VIDEO OUT S-VIDEO VIDEO TV-IN AUX-IN LINE-OUT TO AV SUBWOOFER IMPORTANT! The progressive scan video quality is only possible when using Y Pb Pr and a progressive scan TV is required.

  • Page 11: Step 6: Connecting The Power Cord

    Step 6: Connecting the power cord ~ AC MAINS TO DVD FRONT CENTER FRONT REAR REAR LEFT RIGHT LEFT RIGHT SYSTEM COAXIAL DIGITAL IN DVD system BWOOFER After everything is connected properly, plug the AC power cord into the power outlet. The ECO POWER LED on the DVD system and AV Subwoofer LED will light up.

  • Page 12: Optional Connections

    Optional Connections Connecting a VCR or Cable/Satellite Box VIDEO OUT S-VIDEO COMPONENT VIDEO TV-IN AUX-IN LINE-OUT TO AV SUBWOOFER Viewing and listening to the playback Connect the VCR or Cable/Satellite Box to the TV as shown. Connect the DVD system’s AUX IN (R/L) jacks to the AUDIO OUT jacks on the VCR or cable/satellite box.

  • Page 13: Connecting Digital Audio Equipment

    Optional Connections (continued) Connecting digital audio equipment (for example) Set-Top Box/ Game Console VIDEO OUT S-VIDEO COAXIAL DIGITAL IN COMPONENT VIDEO TV-IN AUX-IN LINE-OUT TO AV SUBWOOFER Listening to the playback Connect the DVD system’s DIGITAL IN jack to the DIGITAL OUT jack on a digital audio device.

  • Page 14: Remote Control

    – DISC: displays the current status or disc information and turns off PBC VCD2.0 (if PBC was on). REPEAT A-B – DISC: repeats a specific section on a disc. TV VOL +- – Adjusts TV volume (Philips TV only.) SLEEP – Sets the sleep timer function.
  • Page 15 Numeric Keypad (0-9) – DISC: enters a track/title number. – TUNER: enters the preset radio station number. DISC MENU – DISC: enters or exits disc contents menu. – For VCD version 2.0 only; Turns on/off playback controls (PBC) mode. SETUP MENU –...

  • Page 16: Top And Front Panel

    Main Unit STANDBY ON (B) – Switches to Eco Power standby mode, or turns on the system. Disc direct play button (DISC 1~5) – Selects a disc for playback. 5 disc carousel tray System display panel SOURCE – Selects the relevant active source mode: DISC, TUNER (FM/MW), TVor AUX/DI.

  • Page 17: Getting Started

    Step 1: Inserting batteries into the remote control Open the battery compartment. Insert two batteries type R06 or AA, following the indications (+-) inside the compartment. Close the cover. CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

  • Page 18: Setting Up Progressive Scan Feature (For Progressive Scan Tv Only)

    Getting Started (continued) Setting up Progressive Scan feature (for Progressive Scan TV only) The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system.) With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

  • Page 19: Selecting The Colour System That Corresponds To Your Tv

    Selecting the correspond color system The color system of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the color system of your TV. In disc mode, press SETUP.

  • Page 20: Step 3: Setting Language Preferences

    Getting Started (continued) Step 3: Setting language preferences You can select your preferred language settings so that this DVD system will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead.

  • Page 21: Disc Operations

    IMPORTANT! – If the inhibit icon ( or X) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions.

  • Page 22: Playing Discs

    Disc Operations (continued) Playing discs Press SOURCE control until “DVD/CD” appears on the display panel (or press DISC 1-2-3-4-5 on the remote until “LOAD X” appears). Turn on the TV power and set to the correct Video In channel. (See page 17 “Setting the TV”.) You should see the blue DVD background screen on the TV.

  • Page 23: Selecting Various Repeat /Shuffle Functions

    Selecting various repeat/ shuffle functions SHUFFLE REPEAT Repeat play You can select a Chapter, Track, Title, entire disc or all available discs for repeat playback. While playing a disc, press REPEAT repeatedly to choose a repeat play mode. ™ CHAPTER (repeat chapter) ™...

  • Page 24: Other Operations For Video Playback (Dvd/Vcd/Svcd)

    Disc Operations (continued) Other operations for video playback (DVD/VCD/SVCD) DISC MENU SUBTITLE AUDIO RETURN/TITLE Using the Disc Menu A menu may appear on the TV screen once you load in the disc, depending on the disc To select a playback feature or item Use 1 2 3 4 keys or numeric keypad (0-9) on the remote, then press OK to start playback.

  • Page 25: Resuming Playback From The Last Stopped Point

    Resuming playback from the last stopped point Resume playback of the last 10 discs is possible, even if the disc was ejected or the power switched off. Load one of the last played 10 discs. While “LOADING” appears on the display panel, press PLAY B (or 2;) to start playback from the last stop point.

  • Page 26: Playback Control (Pbc) (Vcd Only)

    Disc Operations (continued) Playback Control (PBC) (VCD only) PBC playback allows you to play Video CDs interactively, following the menu on the display. This function can also be accessed via the ‘PREFERENCE PAGE’ menu (see page 37.) For VCDs with Playback Control (PBC) feature (version 2.0 only) When play is stopped, press DISC MENU to toggle between ‘PBC ON’...

  • Page 27: Playing An Mp3/Jpeg/Mpeg-4 Disc

    Playing an MP3/JPEG/MPEG-4 disc This DVD system can playback MPEG-4, MP3, JPEG, VCD & SVCD files on a personally recorded CD-R/RW disc or commercial CD. IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 17 “Setting the TV”.) Load a disc.

  • Page 28: Playing A Picture Disc (Slide Show)

    Disc Operations (continued) Playing a picture disc (slide show) IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 17 “Setting the TV”.) Load a Picture disc (Kodak Picture CD, JPEG.) For a Kodak disc, the slide show will begin automatically.

  • Page 29: Playing A Divx Disc

    Playing a DivX disc This DVD system supports the DivX movie playback, which you download from your computer onto a CD-R/RW (see page 32 for more information.) Load a DivX disc. Playback will start automatically. If not press PLAY B or OK on the remote. If the DivX movie contains external subtitles, the subtitle menu will appear on the TV.

  • Page 30: Dvd Setup Menu Options

    DVD Setup Menu Options This DVD system setup is carried out via the TV, enabling you to customize the DVD system to suit your particular requirements. Accessing to General Setup Page Press DISC and followed by SETUP on the remote. Press 1 2 to select ‘GENERAL SETUP PAGE.

  • Page 31: Program Tracks On A Single Disc

    DVD Setup Menu Options Program tracks on a single disc (for CD, VCD, SVCD, DVD only) You can program the tracks in the current selected disc in the order you want them to be played. Up to 20 tracks can be stored. You can press PROG to enter into program menu directly.

  • Page 32: Osd Language

    To return to the previous menu, press 1. To remove the menu, press SETUP. (continued) ® DivX VOD registration code Philips provide you the DivX ® (Video On Demand) registration code that allows you to rent and purchase videos using the DivX ®...

  • Page 33: Accessing To Audio Setup Page

    DVD Setup Menu Options Accessing to Audio Setup Page Press DISC and followed by SETUP on the remote. Press 1 2 to select ‘AUDIO SETUP PAGE. ’ Press OK to confirm. SPEAKER SETUP CD UPSAMPLING NIGHT MODE Speaker Setup These menus contain speaker setup options that allow you to adjust the individual speakers volume and delay time.

  • Page 34: Accessing To Video Setup Page

    DVD Setup Menu Options Accessing to Video Setup Page Press DISC and followed by SETUP on the remote. Press 1 2 to select ‘VIDEO SETUP PAGE. ’ Press OK to confirm. TV TYPE TV DISPLAY PROGRESSIVE PICTURE SETTING TV Type This menu contains the options for selecting the color system that matches the connected TV.

  • Page 35: Picture Setting

    DVD Setup Menu Options Picture Setting This DVD system provides three predefined sets of picture color settings and one personal setting which you can define yourself. In ‘VIDEO SETUP PAGE,’ press 34 to highlight { PICTURE SETTING, } then press 2. { STANDARD } Select this for original color setting.

  • Page 36: Accessing To Preference Setup Page

    DVD Setup Menu Options Accessing to Preference Setup Page Press Ç twice to stop playback (if any), then press SETUP. Press 1 2 to select the ‘Preference Page’. Press OK to confirm. DIVX SUBTITLE Audio, Subtitle, Disc Menu These menus contain various language options for audio, subtitle and disc menu that may be recorded on the DVD.

  • Page 37: Pbc

    DVD Setup Menu Options Rating explanations 1KID SAFE – 2 G – General Audience; recommended as acceptable for viewers of all ages. 3 PG – Parental Guidance suggested. 4 PG13 – Material is unsuitable for children under age 5 PGR – 6 R –...

  • Page 38: Changing The Password

    DVD Setup Menu Options Changing the Password The same password is used for both Parental Control and Disc Lock. Enter your six-digit password to play a prohibited disc or if prompted for a password. The default password is 136900. In ‘Preference Page’, press 34 to highlight { Password }, then press 2 to select { Change }.

  • Page 39: Other Functions

    Press STANDBY ON (B). The display screen will go blank and Standby LED lights up. Using the remote to operate your ‘Philips’ television Press and hold TV to switch to TV AV. Press TV VOL +/- to adjust the TV’s volume level.

  • Page 40: Tuner Operations

    Tuner Operations IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press TUNER on the remote (or press SOURCE control at the front panel) to select “TUNER/FM” or “TUNER/MW.” Press 3 / 4 briefly on the remote. The display panel will show "SEARCH >"...

  • Page 41: Automatic Presetting

    Automatic presetting Use automatic presetting to store or reinstall all the preset radio stations. DVD system’s display panel TUNER/FM TUNER/MW AUTO PRESET Press TUNER on the remote to select “TUNER/FM” or “TUNER/MW”. Press and hold PROG until "AUTO PRESET" appears. If auto program is started from preset ‘X’, then programs will be stored starting from ‘X’.

  • Page 42: Selecting A Preset Radio Station

    Tuner Operations (continued) Selecting a preset radio station Press TUNER on the remote, then press S / T to select a preset number (or use the numeric keypad on the remote.) The waveband, preset number and radio frequency will appear. Deleting a preset radio station In tuner mode, press S / T on the...

  • Page 43: Sound And Volume Controls

    Individual speakers volume adjustment You can adjust the delay times (center rear speakers and subwoofer only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup. IMPORTANT! Press SURR button on the remote to select Multi-channel surround mode before adjusting the speaker settings.

  • Page 44: Selecting Surround Sound

    Sound and Volume Controls Selecting surround sound Press SURR on the remote to select : MULTI-CHANNEL or STEREO. The availability of the various surround sound modes depends on the number of speakers used and the sound available on the disc. The center and rear speakers operate only in Multi-channel surround mode.

  • Page 45: Specifications

    AMPLIFIER SECTION Output power 900 W RMS / 11000 W PMPO - Front 150 W RMS / channel - Rear 150 W RMS / channel - Centre 150 W RMS - Subwoofer 150 W RMS Frequency Response 20 Hz – 50 kHz / –3 dB Signal-to-Noise Ratio >...

  • Page 46: Troubleshooting

    Angles, – Subtitles, or multi-language Audio. Need Help? Visit us at www.philips.com/support Solution Check if the AC power cord is properly connected. Press the STANDBY ON on the front of the DVD system to turn on the power.
  • Page 47 No output from all speakers – and ‘SPEAKER ERR’ appears on the front display – Need Help? Visit us at www.philips.com/support Troubleshooting Solution Press STOP button twice before selecting the setup/system menu. Depending on the disc availability, some menu items cannot be selected.

  • Page 48: Glossary

    Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs.
  • Page 49 Glossary (continued) Plug and Play: First time power up to the Tuner mode, the system will prompt the user to proceed with the automatic installation of radio stations by simply pressing the PLAY button on the main unit. Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame.
  • Page 50 This Manufacturers Warranty is limited to 3 months for above listed Consumer Electronics products if used in commercial applications. Philips may, at its discretion choose to replace rather than repair any product covered by this warranty. This Manufacturers Warranty is neither transferable nor valid in countries other than Australia.
  • Page 51 12 months prior to the date of your claim. In the event of a failure, Philips shall be under no liability for any injury, or any loss or damage caused to property or products other than the product under guarantee.
  • Page 52 Meet Philips at the Internet http://www.philips.com/support HTS 5510C CLASS 1 LASER PRODUCT 3139 246 16463 SgpSL-0533/75-1...
