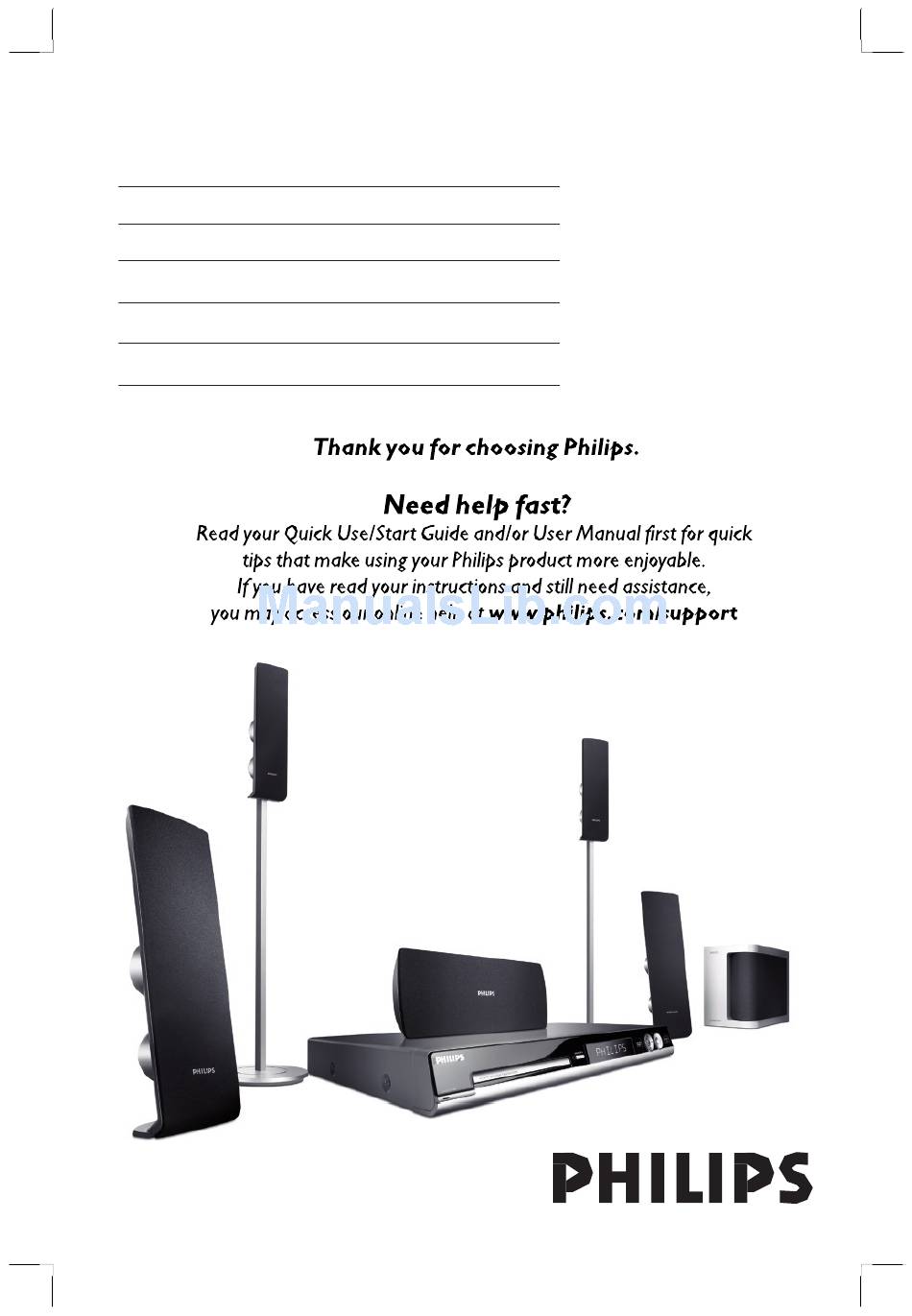

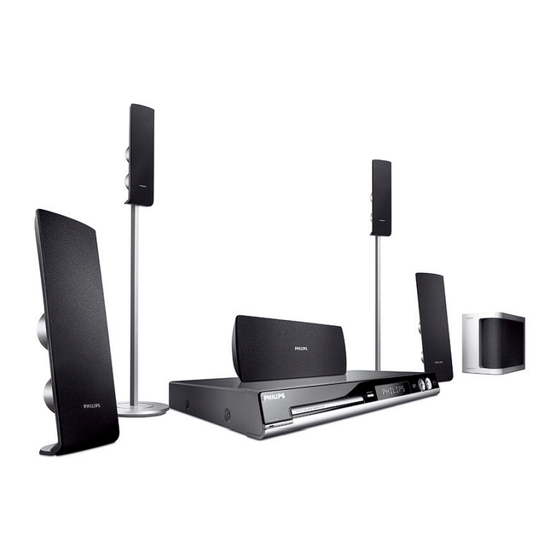

- Page 1 DVD HOME THEATRE SYSTEM User Manual Manuel D’utilisation Manual de Instrucciones Bedienungsanleitung Gebruiksaanwijzing HTS3110...
-
Page 2: How To Connect Plug
See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio HTS3110, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven Philips Consumer Electronics... - Page 3 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
- Page 4 Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.
- Page 5 Index English ------------------------------------ 6 Français ---------------------------------- 46 Español ---------------------------------- 84 Deutsch -------------------------------- 122 Nederlands ---------------------------- 160...
-
Page 6: Table Of Contents
Table of contents General General Information ... 8 Setup precautions ...8 Accessories supplied ...8 Cleaning discs ...8 About recycling ...8 Product Overview Main Unit ... 9 Remote Control ...10-12 Using the remote control ...12 Connections Basic Connections ...13-15 Step 1 : Placing the speakers ...13 Step 2 : Connecting to TV and the speakers system ...14 Step 3 : Connecting the FM/MW antennas ...14 Step 4 : Connecting the power cord ...15... - Page 7 Selecting surround sound ... 38 Selecting digital sound effects ... 38 Volume control ... 38 Other Features ... 39 Controlling ‘Philips’ TV with the remote control ...39 Software upgrades ...39 Troubleshooting ... 40-41 Glossary ... 42-43 Specifi cations ... 44...
-
Page 8: General Information
General Information CAUTION! The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualifi ed personnel. Setup precautions Finding a suitable location – Place the set on a fl at, hard and stable surface. Do not place the set on a carpet. –... -
Page 9: Main Unit
STANDBY ON 2 – Turns on the system or turns off to Eco Power standby mode. b Disc tray c OPEN CLOSE ç – Opens/ closes the disc tray. d System display panel e u (PLAY PAUSE) – DISC: starts/pauses playback. –... -
Page 10: Remote Control
– TUNER: hold down this button to erase the current preset radio station. TV VOL +- – Adjusts TV volume (Philips TV only). Numeric Keypad (0-9) – Enters a track/title number of the disc. – Enters a number of a preset radio station. - Page 11 . > – DISC: hold down this button for fast forward and backward search. – TV: selects previous/next channel (Philips TV only). – TUNER: selects a preset radio station. PAUSE Å – DISC: pauses playback.
-
Page 12: Using The Remote Control
Remote Control Using the remote control Open the battery compartment. Insert two batteries type R03 or AAA, following the indications (+-) inside the compartment. Close the cover. Point the remote control directly at the remote sensor (iR) on the front panel. Select the source you wish to control by pressing the DISC, TUNER, TV or AUX/DI button on the remote control. -
Page 13: Basic Connections
Step 1: Placing the speakers The Philips Home Theatre System is simple to install. However, proper system placement is critical to ensure an optimum sound experience. Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees from the listening position. -
Page 14: Step 2: Connecting To Tv And The Speakers System
Basic Connections FRONT LEFT SUBWOOFER REAR LEFT Step 2: Connecting to TV and the speakers system IMPORTANT! Connect the DVD system directly to the TV. Use the scart cable to connect the SCART socket on the DVD system to the corresponding SCART input socket on the TV. -
Page 15: Step 3 : Connecting The Fm/Mw Antennas
fi x the claw into the slot FM antenna antenna Step 3: Connecting the FM/ MW antennas Connect the supplied MW loop antenna to the MW socket. Place the MW loop antenna on a shelf, or attach it to a stand or wall. -
Page 16: Optional Connections
Optional Connections Connecting audio from an analogue audio/video device You can connect the audio output from an analogue audio/video device (e.g. VCR, Cable/Satellite Box or TV) to this Home Theatre Audio System in order to enjoy the multi-channel surround sound capabilities Use an audio cable (red/white - not supplied) to connect the AUX IN... -
Page 17: Getting Started
Step 1: Turning on the DVD system Press STANDBY ON (2). Press the SOURCE button on the front panel repeatedly to select : DISC DISC ... Press DISC, TUNER, TV or AUX/DI on the remote control. Turning off to Eco Power standby mode Press STANDBY ON (2). -
Page 18: Step 3: Setting Language Preferences
Getting Started (continued) Step 3: Setting language preferences The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual. On-screen display (OSD) language The OSD (On-Screen Display) language for this DVD system will remain as you have set it, regardless of the changes made to the DVD disc language. -
Page 19: Step 4: Setting The Tv
If the language you want is not available in the list, select { Others }. Use the numeric keypad (0-9) on the remote control to enter the 4-digit language code ‘XXXX’ (see last page) and press OK to confi rm. Repeat steps for other settings. -
Page 20: Setting The Tv Display
Getting Started (continued) Select one of the options and press OK to confi rm. Follow the instructions shown on the TV to confi rm the selection (if any). If a blank/distorted TV screen appears, wait for 15 seconds for the auto recovery. TIPS: The underlined option is the factory default setting. -
Page 21: Step 5: Setting The Speakers' Channels
Step 5: Setting the speakers’ channels You can adjust the delay times (centre and surround only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup. Before you start... Stop the disc playback by pressing STOP button twice or remove the disc from the disc tray. -
Page 22: Disc Operations
Disc Operations Playable discs Your DVD home theatre system will play: – Digital Versatile Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Finalised DVD+Recordable (DVD±R), DVD+Rewritable (DVD±RW) – Audio Compact Discs (CDs) – MP3/ Windows Media™ Audio discs, picture (Kodak, JPEG) fi les on CD-R(W) –... -
Page 23: Basic Playback Controls
Basic playback controls Pausing playback During playback, press u (or Å on the remote control). While in pause mode, you can press Å repeatedly to view the next still picture (for video playback only). To resume playback, press u (or PLAY on the remote control). -
Page 24: Programming Disc Tracks
Disc Operations Programming disc tracks (not for Picture CD/MP3) You can play the contents of the disc in the order you want by programming the playing order of the tracks. Press PROGRAM on the remote control. The programming menu appears. Exit Start Use the numeric keypad (0-9) to... -
Page 25: Viewing Playback Information
Viewing playback information This DVD system can display the disc playback information (for example, title or chapter number, elapsed playing time, audio/subtitle language) and a number of operations can be done without interrupting disc playback. During playback, press DISPLAY. A list of available disc information appears on the TV. -
Page 26: Changing Sound Track Language
Disc Operations Changing sound track language This operation works only on DVDs with multiple soundtrack languages, you can change the language you want while playing a DVD. Press AUDIO repeatedly to select the available audio languages. For VCD – changing the audio channel Press AUDIO repeatedly to select the available audio channels provided by the... -
Page 27: Playing An Mp3/ Jpeg/Mpeg-4/Window Media Audio Disc
Playing an MP3/ JPEG/ Windows Media Audio disc ™ This DVD system can playback most of the MP3, JPEG and Windows Media™ Audio fi les recorded on a CD-R/RW disc or commercial CD. Before you start ... Turn on your TV to the correct Video In channel. -
Page 28: Playing A Jpeg Image Fi Le (Slide Show)
Disc Operations Playing a JPEG image fi le (slide show) Before you start ... Turn on your TV to the correct Video In channel. See the section on ‘Finding the correct viewing channel’. Insert a Picture disc (Kodak Picture CD, JPEG). -
Page 29: Playing Mp3 Music And Jpeg Pictures Simultaneously
Playing MP3 music and JPEG pictures simultaneously You can create a musical slide show if the disc contains both the MP3 music and JPEG picture fi les. Insert an MP3 disc that contains music and pictures. Select an MP3 track in the menu and (or u) to start press PLAY playback. -
Page 30: Dvd Setup Menu Options
DVD Setup Menu Options Accessing the DVD setup menu This DVD system setup is carried out via the TV, enabling you to customise the DVD system to suit your particular requirements. In ‘DISC’ mode, press SETUP on the remote control. The setup menu appears. -
Page 31: General Setup Page
{ On } { Off } DivX(R) VOD code Philips provides you with the DivX¨ VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX¨ VOD service. Press code and press OK to exit. -
Page 32: Audio Setup Page
DVD Setup Menu Options Audio Setup Page (underlined options are the factory default settings) Speakers Volume Access the speaker’s level setup menu. Use the volume level for each connected speaker between -6dB to +6dB. Speakers Delay Access the speaker’s distance setup menu. Use the delay times for the centre and rear speakers based on the listening position and distance. -
Page 33: Video Setup Page
DVD Setup Menu Options Video Setup Page (underlined options are the factory default settings) TV Type Selects the colour system that matches the connected TV. It will enable playback of a different type of disc (PAL or NTSC disc) on this DVD system. -
Page 34: Preference Setup Page
DVD Setup Menu Options Preference Setup Page Audio Selects the preferred audio language for DVD playback. Subtitle Selects the preferred subtitle language for DVD playback. Disc Menu Selects the preferred disc menu language for DVD playback. Note: If the selected audio/subtitle/disc menu language is not available on the DVD, the disc’s default language will be used instead. -
Page 35: Preference Setup
DVD Setup Menu Options Preference Setup Page DivX Subtitle Selects the font type that supports the recorded DivX subtitle. { Standard } { Others } Default This feature enables you to reset all the setup menu options and your personal settings to the factory defaults, except your password for the Disc Lock. -
Page 36: Tuner Operations
Tuner Operations IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press SOURCE repeatedly until “FM” appears on the display panel (or press TUNER on the remote control). Press briefl y on the remote control to start tuning. “SEARCH >... -
Page 37: Using Automatic Preset
Press PLAY until “START ...” appears on the display panel. The system will start searching from the FM band followed by the MW band. All the available radio stations with strong signal will be stored automatically. Once complete, the last tuned radio station will be played back. -
Page 38: Sound And Volume Controls
Sound and Volume Controls SURR. Selecting surround sound Press SURR. to select : DOLBY+PL II (multi-channel) or STEREO. The availability of the various surround sound modes depends on the sound available on the disc. The centre and rear speakers operate only in multi-channel surround mode. -
Page 39: Other Features
Controlling ‘Philips’ TV with the remote control This DVD system’s remote control enables you to control the basic functions of your ‘Philips’ brand TV. Press SOURCE repeatedly until “TV” appears on the display panel (or press TV on the remote control). -
Page 40: Troubleshooting
If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to solve a problem by following these instructions, consult your dealer or Philips for help. Problem (General) No power. - Page 41 Problem (Playback) The DVD system does not start playback. The aspect ratio of the screen cannot be changed even though you have set the TV display. Cannot activate some features such as Angles, Subtitles, or multi-language Audio. Not able to select some items in the setup/system menu.
-
Page 42: Glossary
Glossary Analogue: Sound that has not been turned into numbers. Analogue sound varies, while digital sound has specifi c numerical values. These sockets send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. -
Page 43: Glossary
Glossary (continued) Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling playback. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive playback and searching. Region code: A system allowing discs to be played only in the region designated. -
Page 44: Specifi Cations
Specifi cations AMPLIFIER Output power: 500 W - Front : 75 W / channel - Rear: 75 W / channel - Centre : 100 W - Subwoofer: 100 W Frequency Response: 20 Hz – 20 kHz / –3 dB Signal-to-Noise Ratio: > 65 dB (CCIR) Input Sensitivity - AUX In : 1000 mV...
